KANSAS

Description

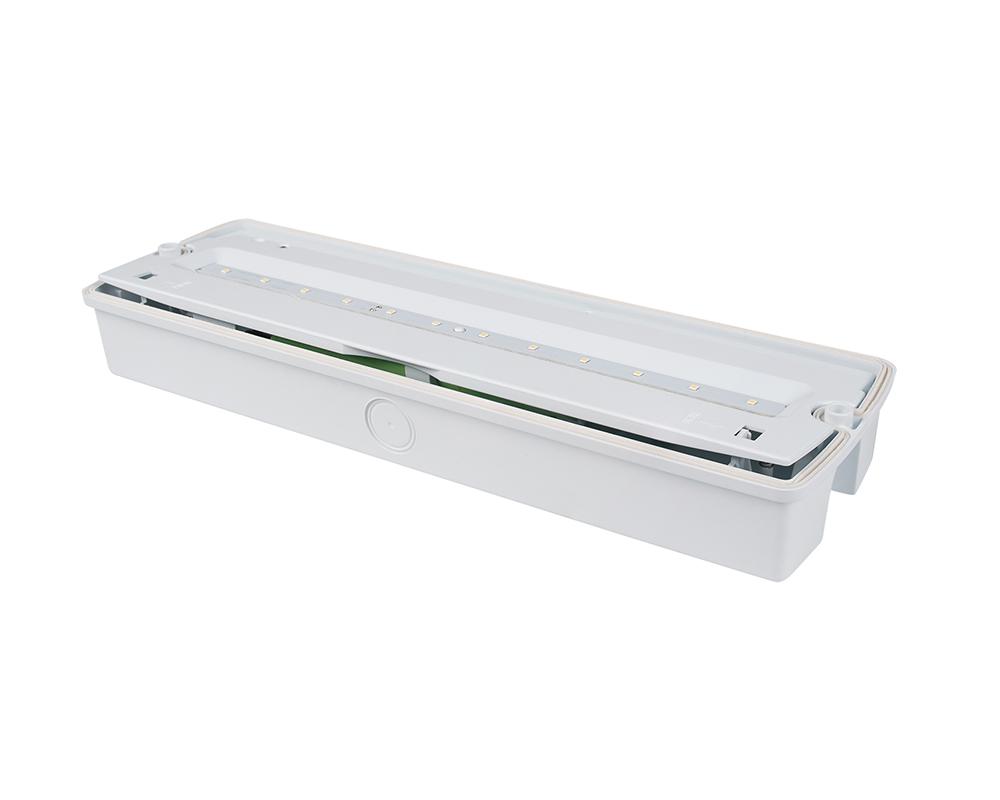

- Polycarbonate base and cover
- Cover fitted to base with stainless steel screws

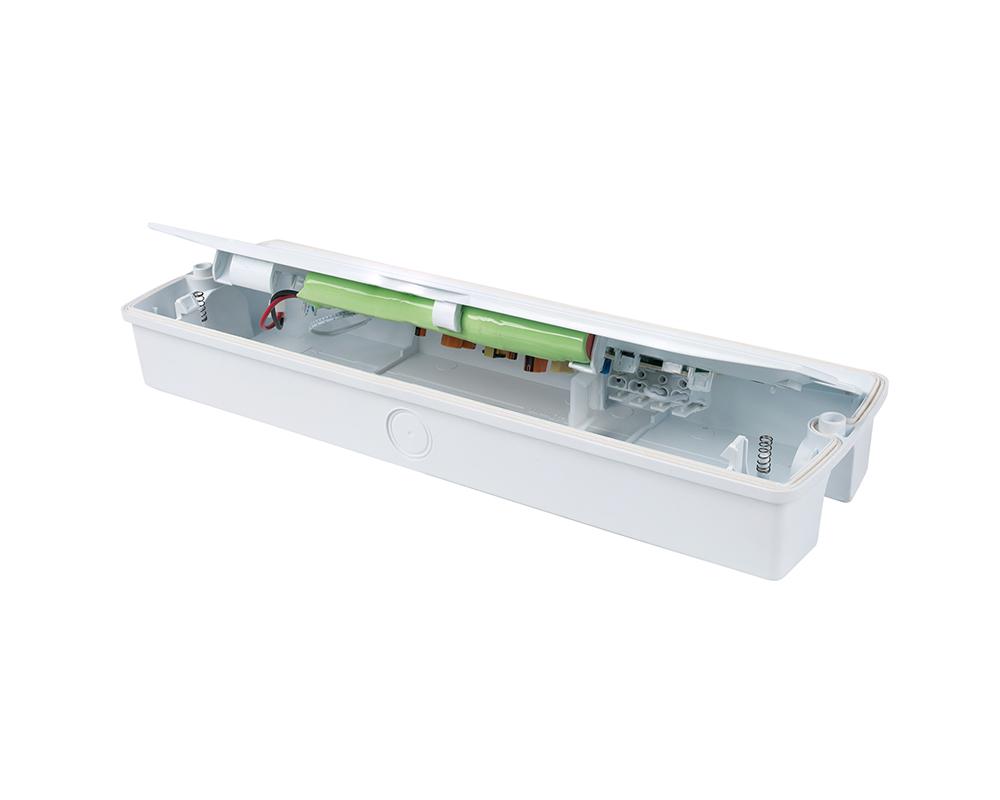

- Screwless gear tray for instant access to terminal block & fixing points for faster installation
- Supplied with standard (“Man running towards door”) legend pack.- 20mm conduit entry - Lithium (LiFePO4) battery and NICD battery (not suitable for use below 0℃)
- 150/170 lm on mains 133 lm on battery supply -
- 3 hours operation on battery power after mains failure
- 20m maximum viewing distance with standard legends
- 30m maximum viewing distance with drop-down attachment
- Can be installed as maintained or non-maintained. Wiring diagrams are supplied in the instruction leaflet.

Technical datas:

ModelYGBH1AYGBH1A-TYGBH1A-P
Input Voltage220-240V AC220-240V AC
Power Consumption (W):3W3W
Light output L100 (lm):150150
CCT L100   (K):6500K
Power factor(PF)<0.5<0.5
Protection ClassClass IIClass II
CRI L100:>80>80
IK rating:888
IP rating:IP65IP65IP65
Dimension (mm):352*110*65352*110*65354*297*187

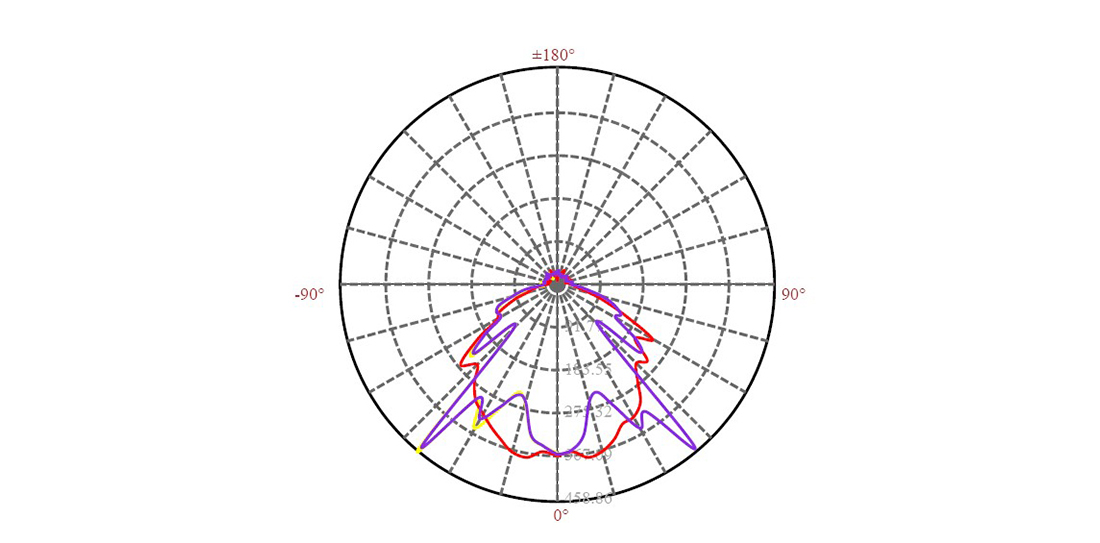

Light Distribution Curve:

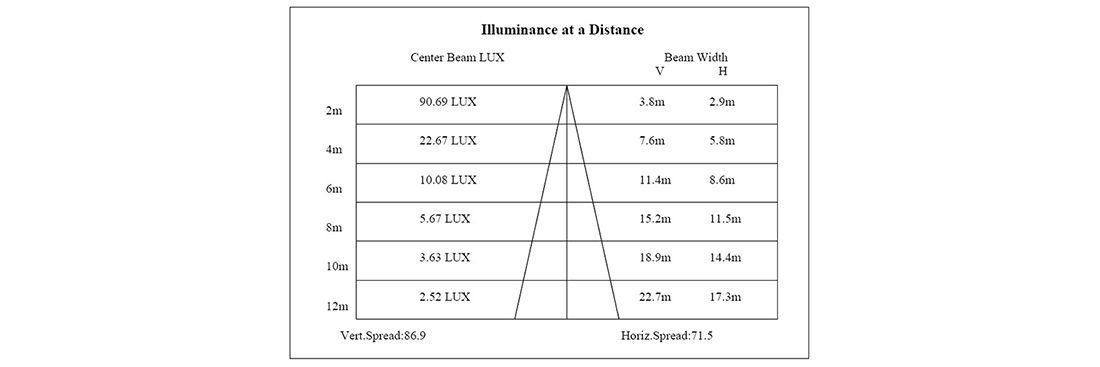

Lux Distance Curve:

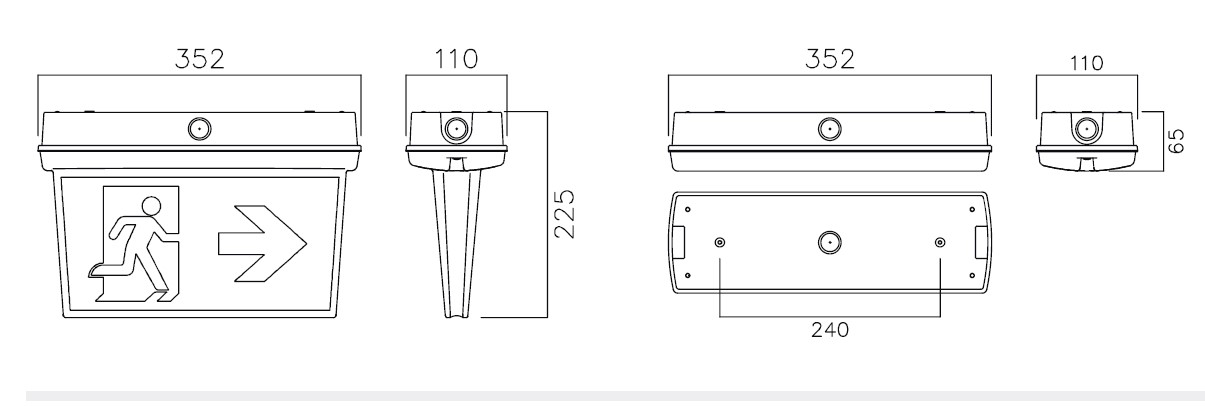

Size:

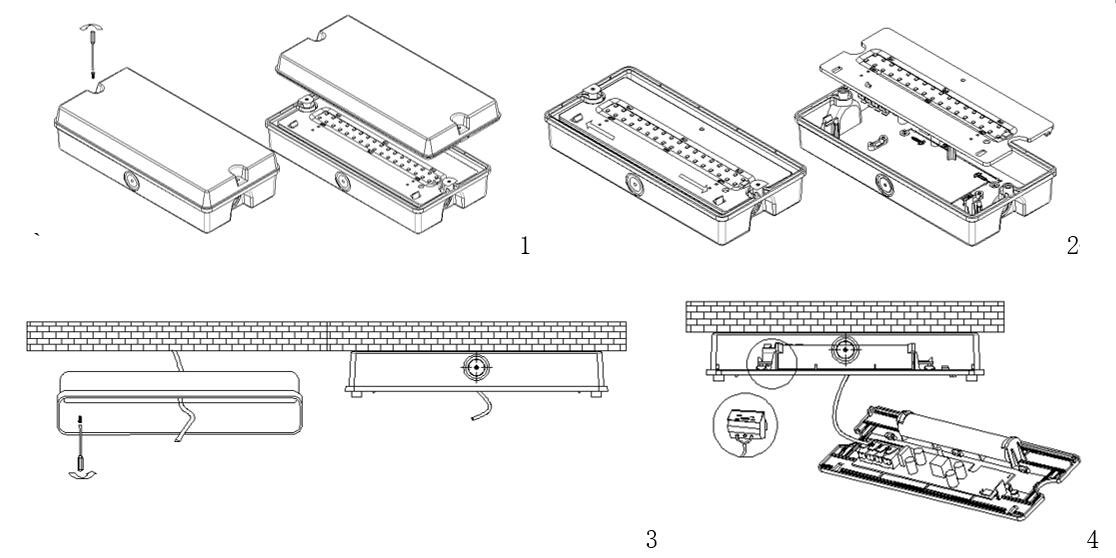

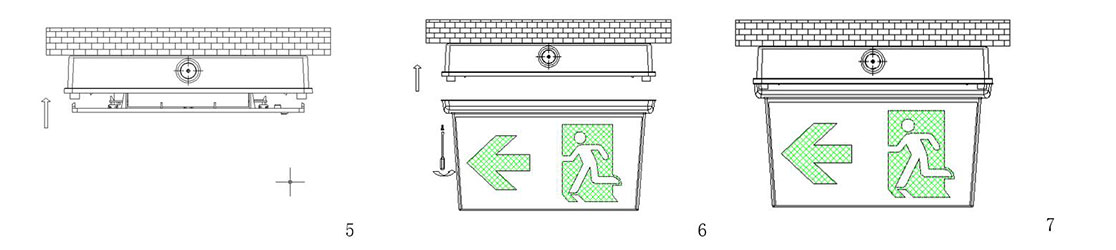

Installation:
