- 3 hours operation on battery power after mains power failure
- Can be wired up for either Maintained or Non-Maintained operation
- Charge indicator lamp fitted - 30m maximum viewing distance
- Self-test version, compliant with BS5266 available.
- Injection moulded white pc body –
- Supplied complete with arrow down running man
- NiCd Battery or LifePo4 Battery
- Corridors
- Exits
- Self testing Version is available
- LEGENDS Alternative legends available as listed

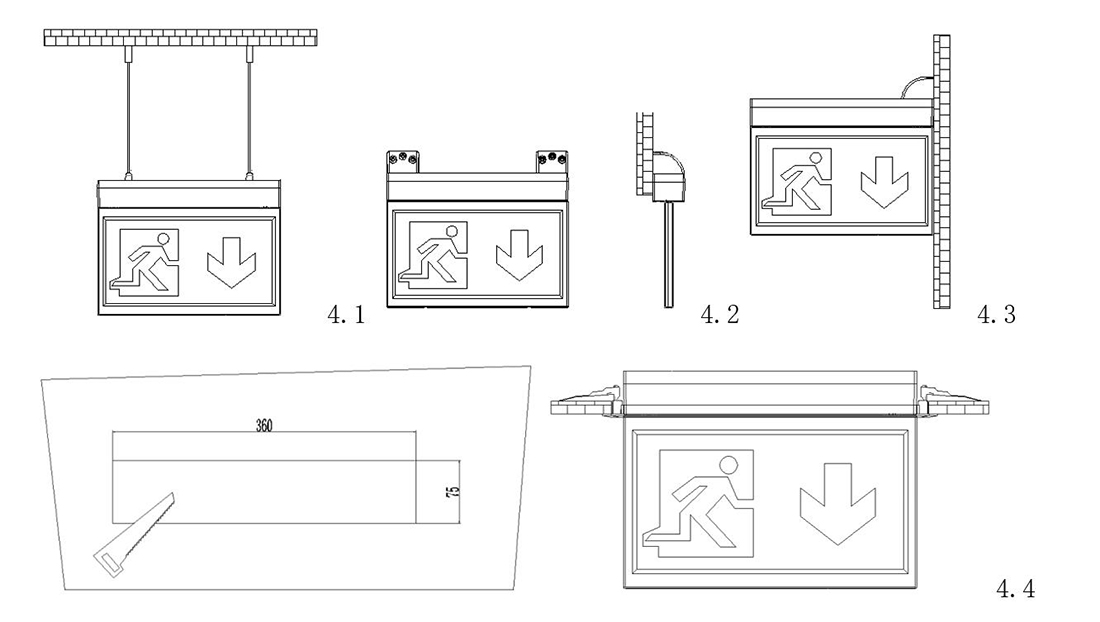

- Optional fixing attachments to allow: • Recessed fixing • Wire Suspension • Side wall mounting
Technical datas:
| Model | YGEB6B-EB-04 | YGEB6B-EB-04-MCU |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 4W | 4W |
| Light output L100 (lm): | 42（charging）/35(discharging) | 42（charging）/35(discharging) |
| CCT L100 (K): | 6500K | |
| Power factor(PF) | <0.5 | <0.5 |
| Protection Class | Class II | Class II |
| CRI L100: | >80 | >80 |
| IP rating: | IP20 | IP20 |
| Dimension (mm): | 330*58*246 | 330*58*246 |
Light Distribution Curve:
Lux Distance Curve:

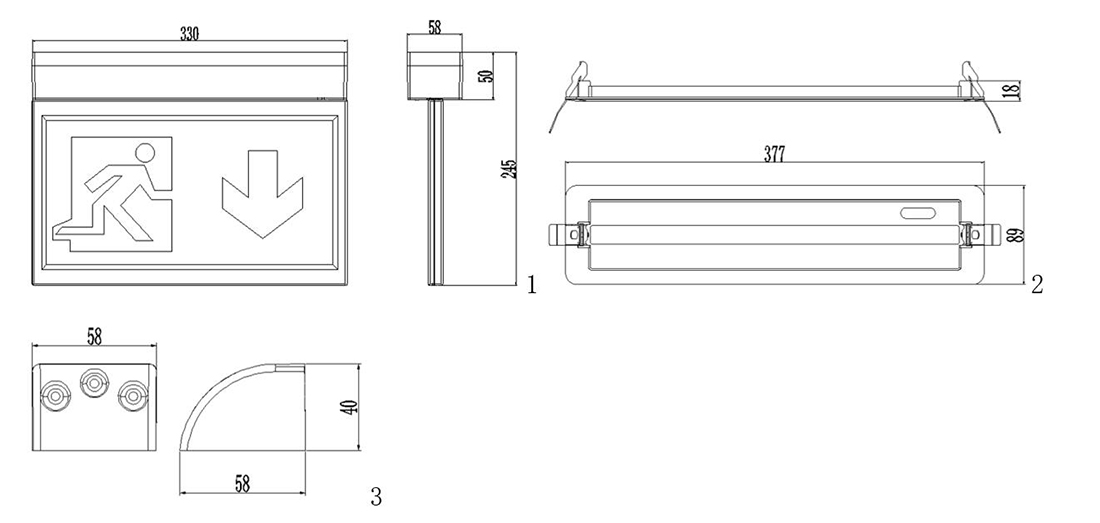

Size:

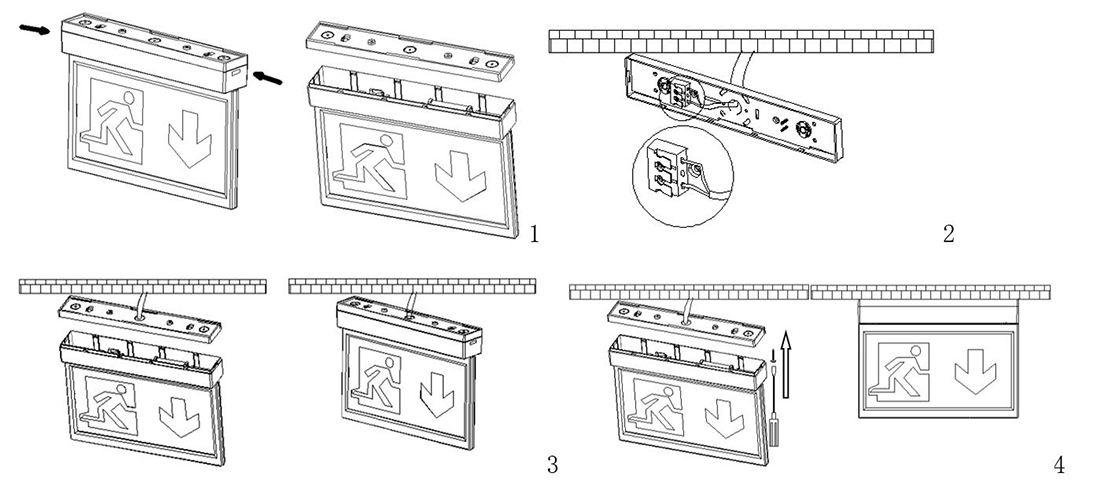

Installation:
