Polycarbonate base and opal diffuser
Unique Visiluxe diffuser allows 90% light transmission from LED source
3CCT selectable with internal DIP switch (3000K/4000K /5000K)
Piano key terminal block for easy installation & allows loop in / loop out wiring
ENEC approved LED driver
LED lifespan L70 50,000 hours
For commercial interior use in corridors, stairs, toilets and changing rooms
Emergency, microwave sensor, Corridor function available
Technical datas:
Model | YGBH8C | |
Input Voltage | 220-240V AC | 220-240V AC |
Power Consumption (W): | 14W | 18W |
Light output L100 (lm): | 1300±7% | 1700±7% |
CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |
Power factor(PF) | >0.9 | >0.9 |
Protection Class | Class I | Class I |
CRI L100: | >80 | >80 |
Efficacy (lm/W): | >90 | >90 |
Operating Temp | -10°C to 25°C | -10°C to 25°C |
IP rating: | IP44 | IP44 |
IK rating: | IK08 | IK08 |
Dimension (mm): | ɸ315*78 | ɸ315*78 |

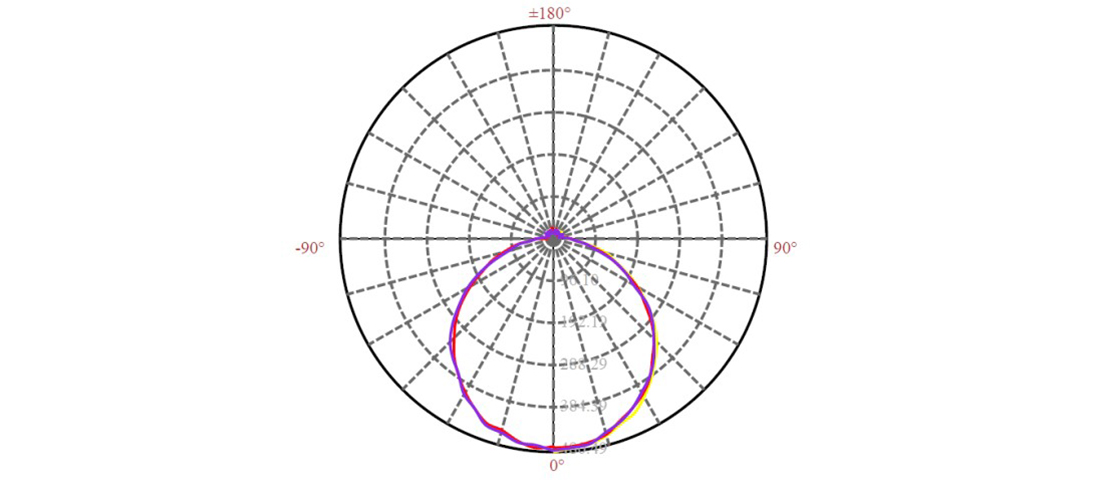

Light Distribution Curve:

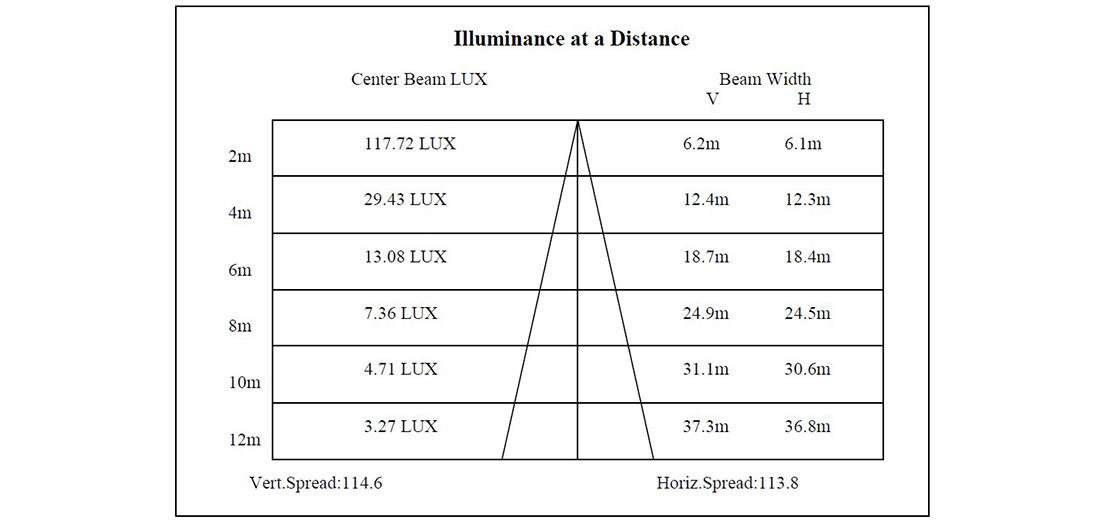

Lux Distance Curve:

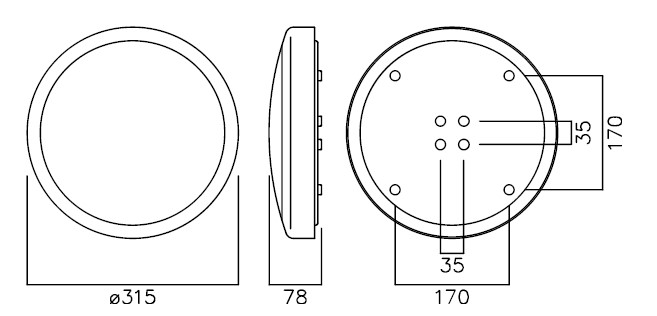

Size:

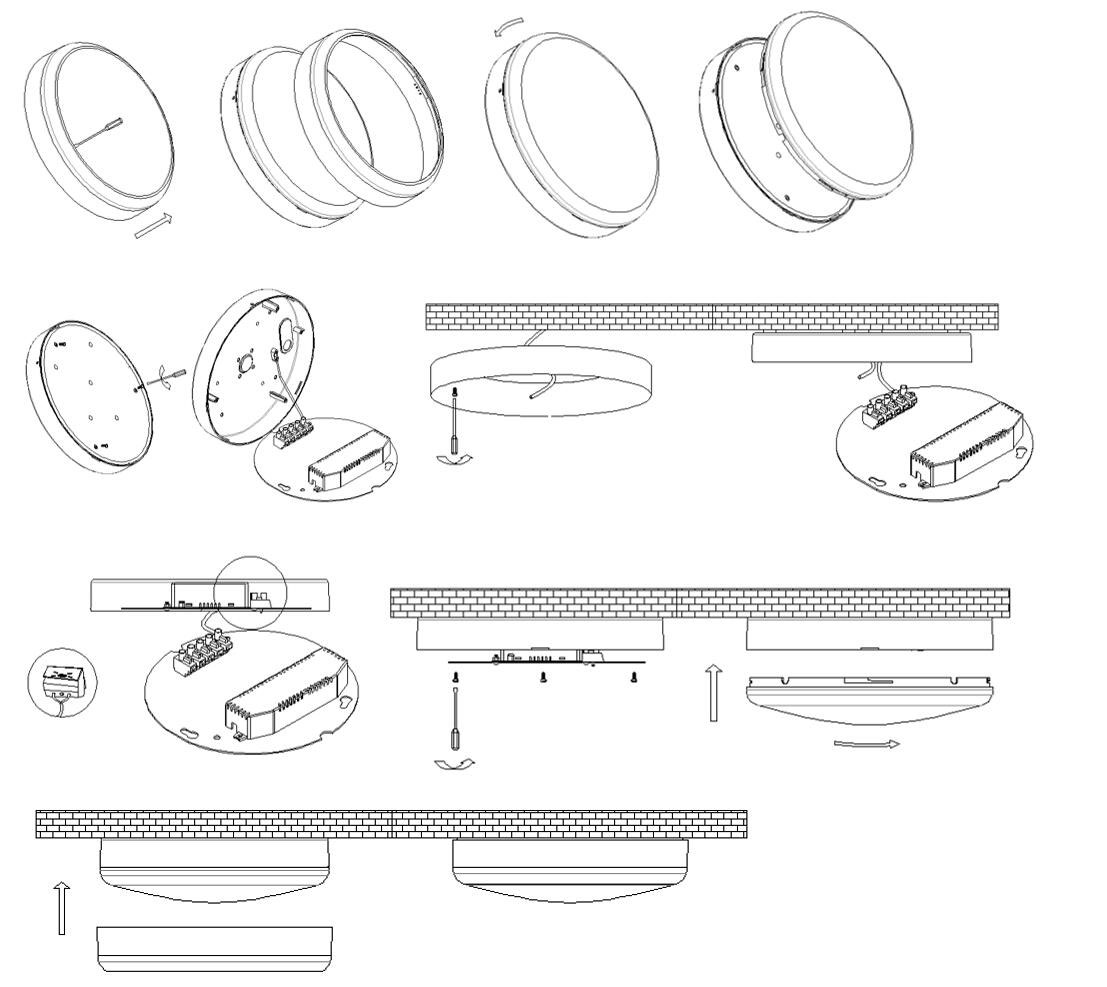

Installation:
