GEORGIA

Description

Polycarbonate construction
High efficiency diffuser ensures a soft, even lighting effect with no degradation of light output
Visually similar, energy efficient alternative to 28/38W 2D fittings. Up to 70% energy saving compared to standard CFL
Piano key terminal block for easy installation & allows loop in / loop out wiring
3CCT selectable with Internal DIP switch , 3000K/4000K /5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours

Technical datas:

ModelYGBH2C
Input Voltage220-240V AC
Power Consumption (W):14W
Light output L100 (lm):1350±7%
CCT L100 (K):3000K/4000K/5000K(3CCT SELECTABLE)
Power factor(PF)>0.9
Protection ClassClass I
CRI L100:>80
Efficacy (lm/W):>95
Operating Temp-10°C to 25°C
IP rating:IP65
IK rating:IK10
Dimension (mm):ɸ283*80

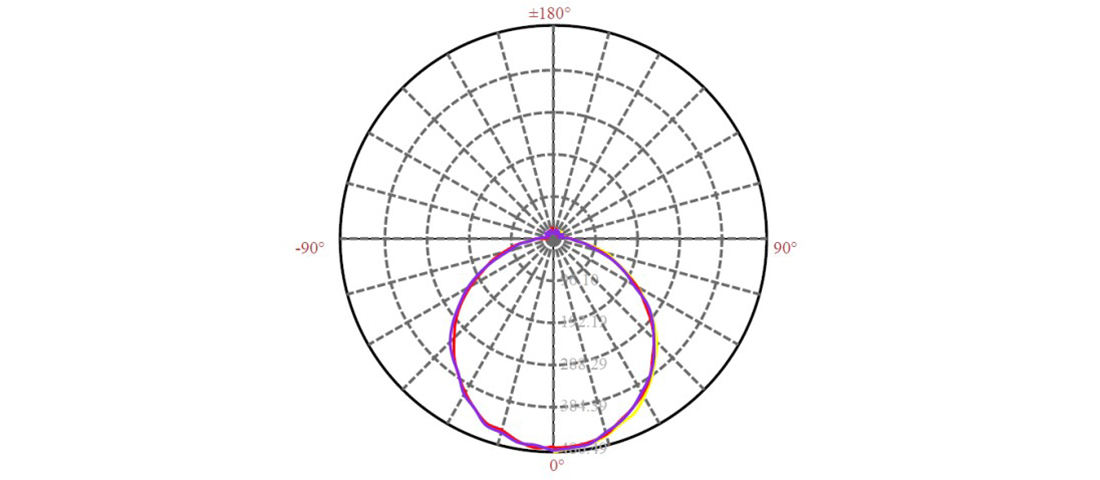

Light Distribution Curve:

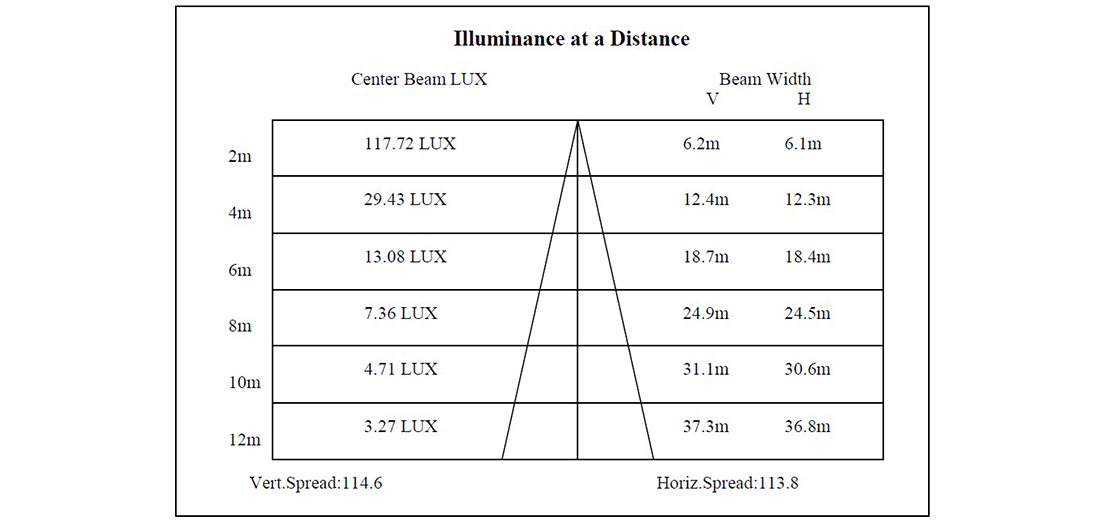

Lux Distance Curve:

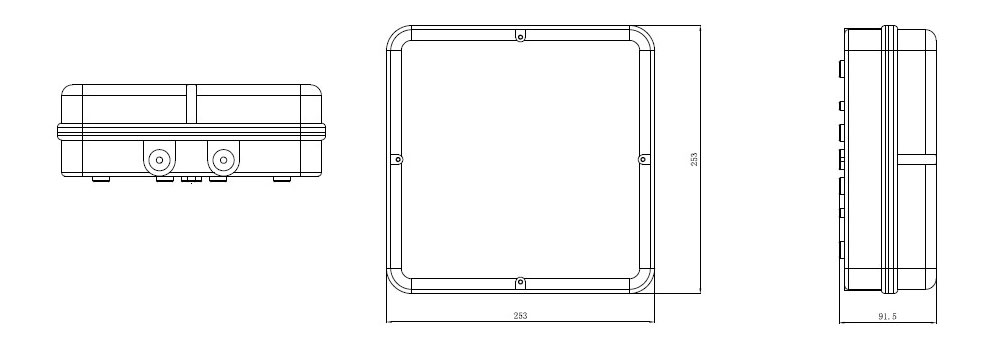

Size:

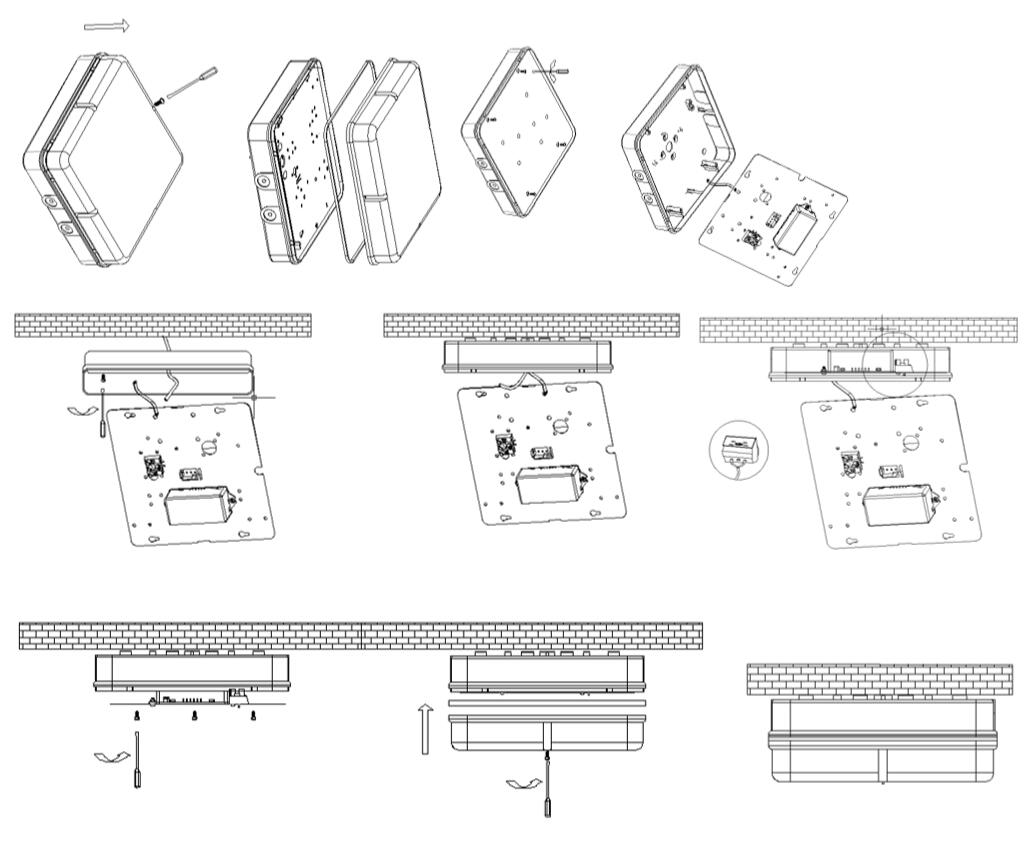

Installation:
