Polycarbonate construction strong and durable.
Available with White or Chrome bezel
Multiple low power LED array & optically optimised opal diffuser, ensures a soft, even lighting with no degradation of light output.

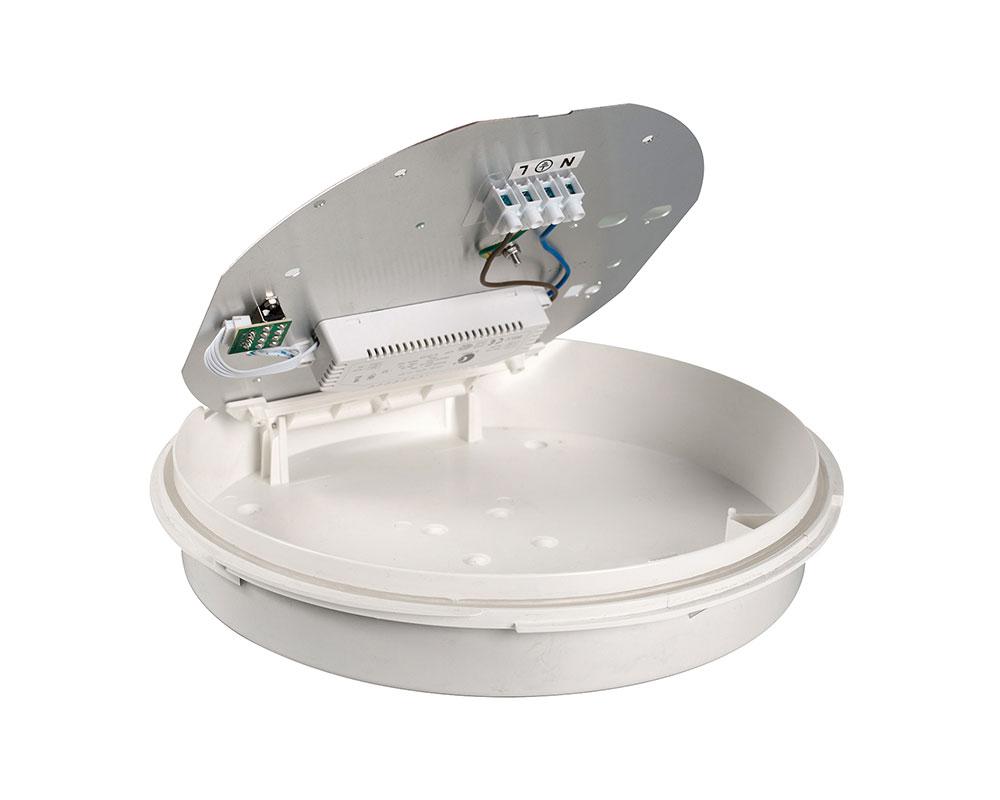

Hinged gear tray for easy installation
Piano key terminal block for fast installation & allows loop in / loop out wiring
3 CCT selectable with internal DIP switch 3000K/4000K/5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For commercial interior use in corridors, stairs, toilets and changing rooms
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8F | |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 14W | 18W |
| Light output L100 (lm): | 1300±7％ | 1700±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |
| Power factor(PF) | >0.9 | >0.9 |
| Protection Class | Class I | Class I |
| CRI L100: | >80 | >80 |
| Efficacy (lm/W): | >90 | >90 |
| Operating Temp | -10°C to 25°C | -10°C to 25°C |
| IP rating: | IP54 | IP54 |
| IK rating: | IK08 | IK08 |
| Dimension (mm): | ɸ325*100 | ɸ325*100 |

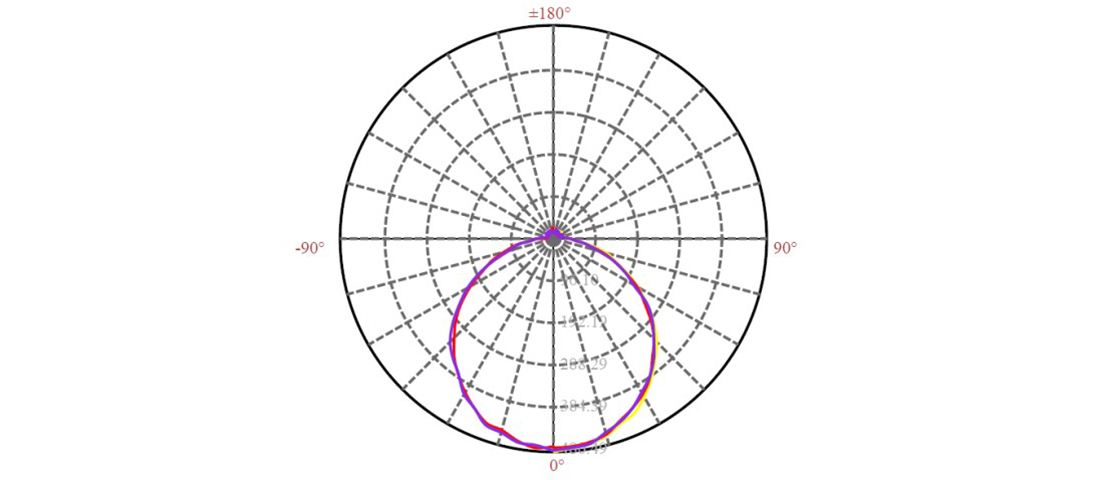

Light Distribution Curve:

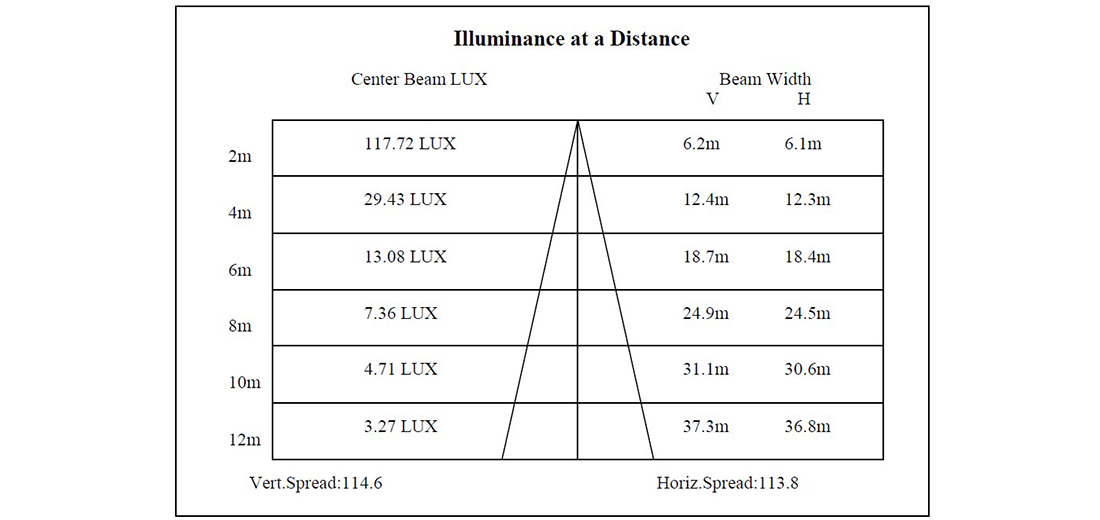

Lux Distance Curve:

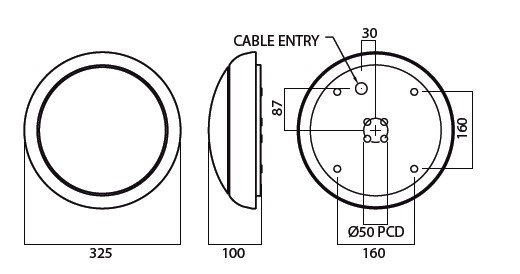

Size:

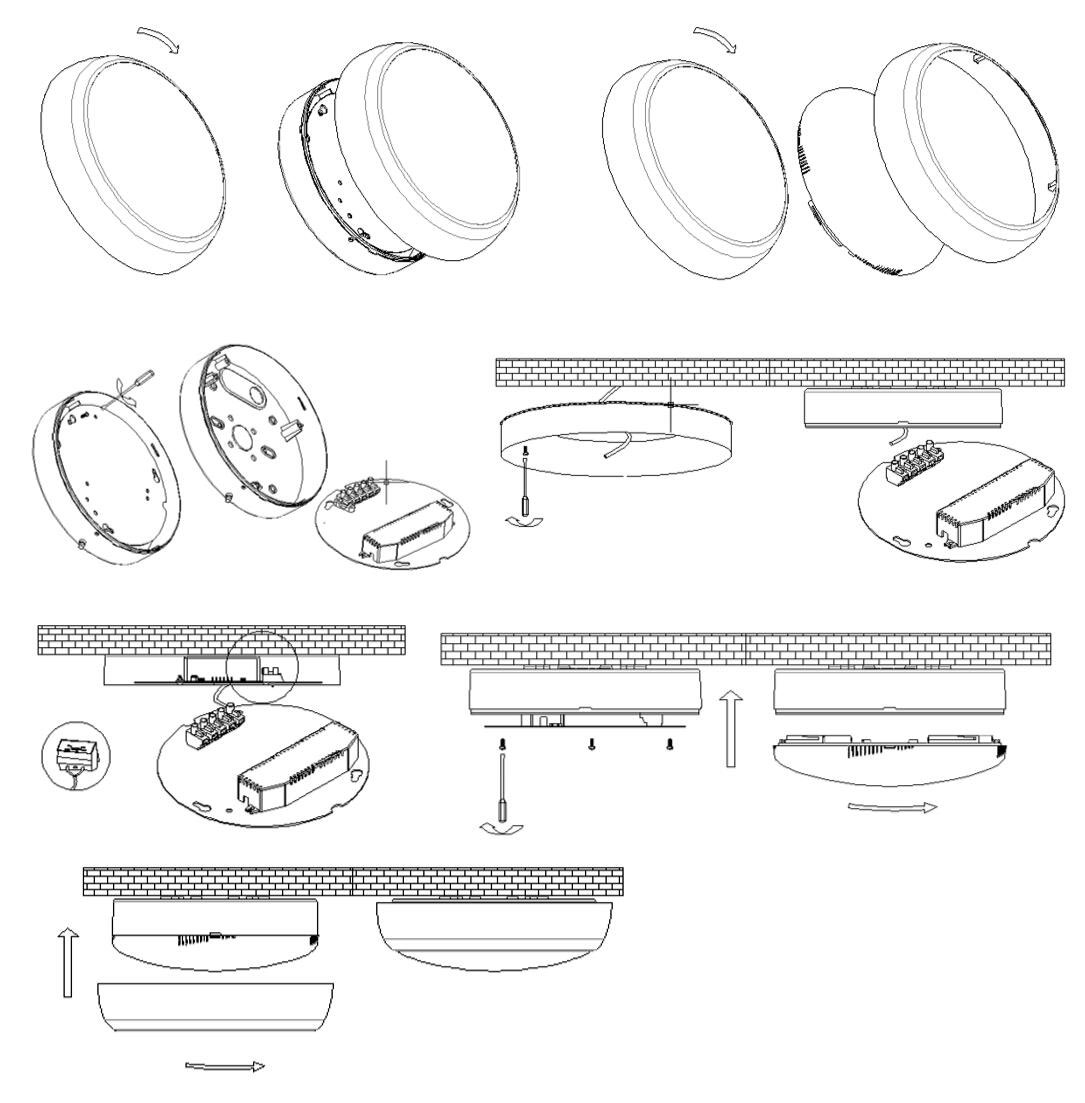

Installation:
