HOUSTON

Description

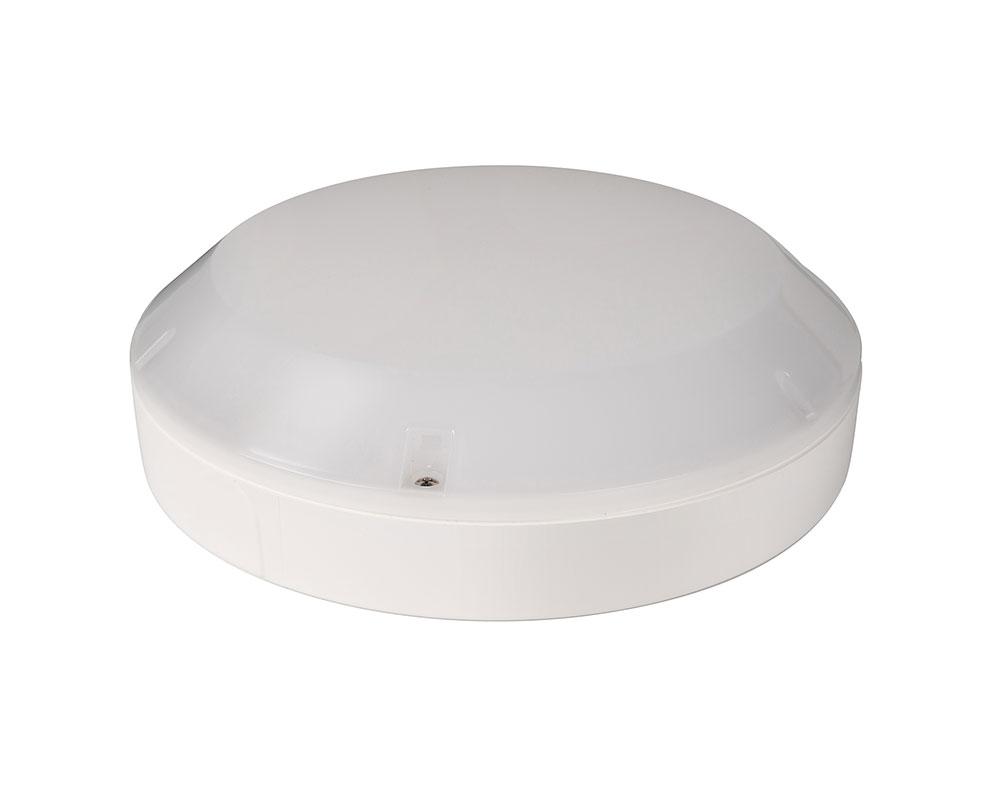

Polycarbonate construction. Strong and durable IK10 rated.
Base available in Black or White.

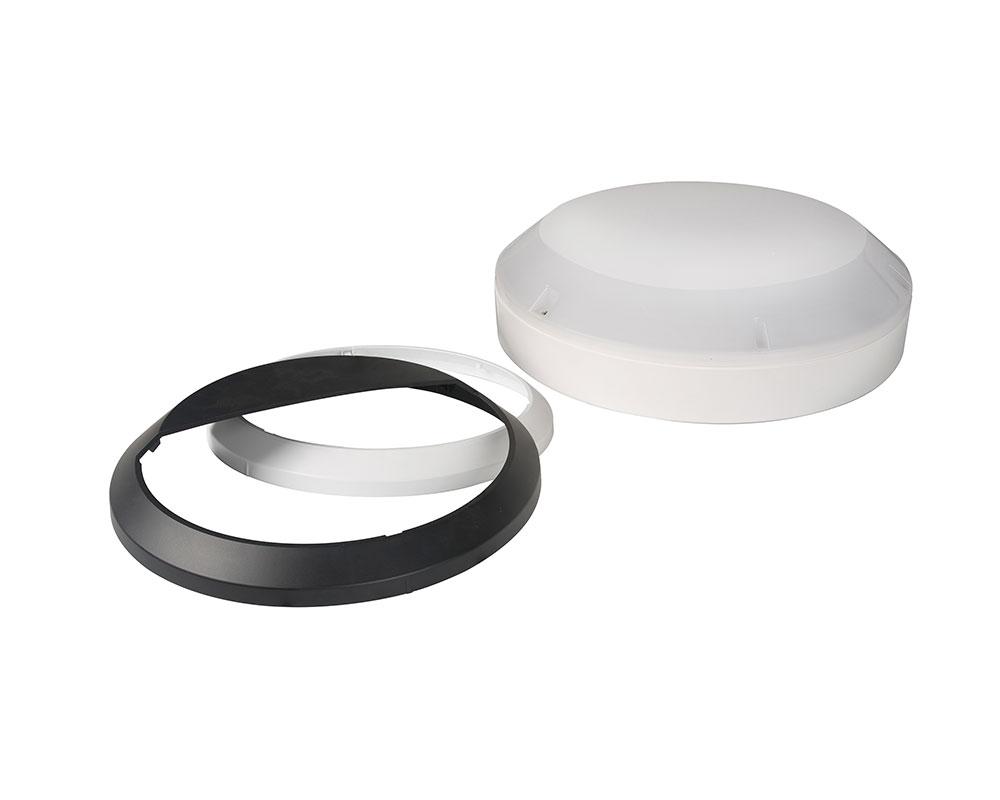

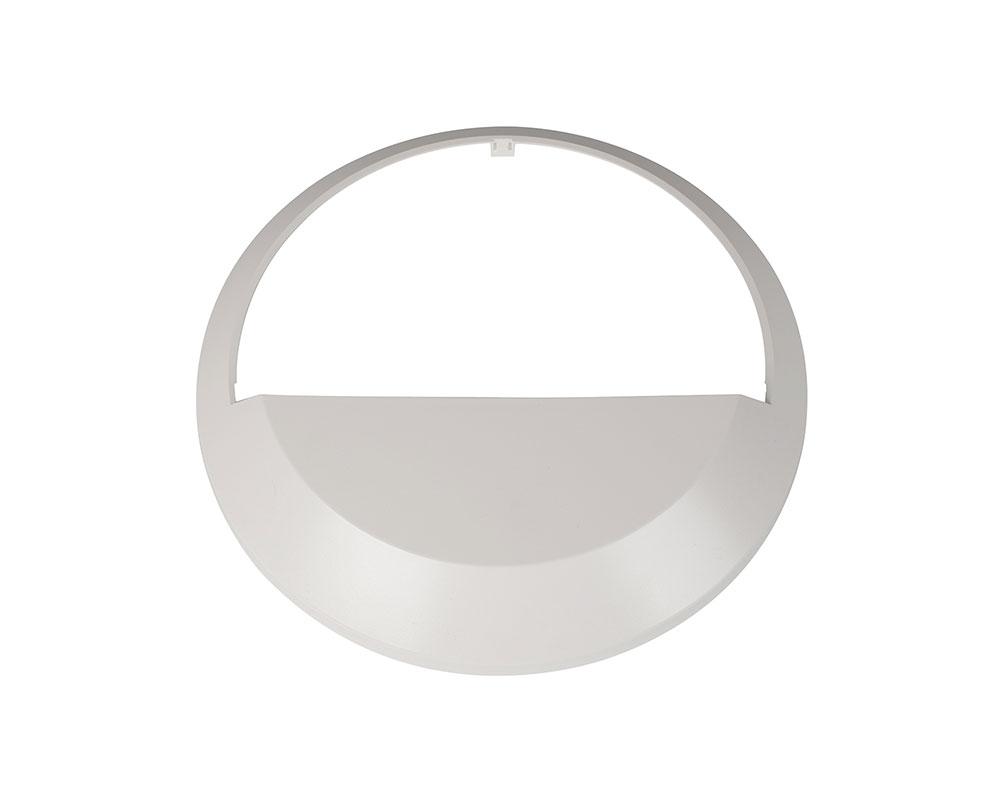

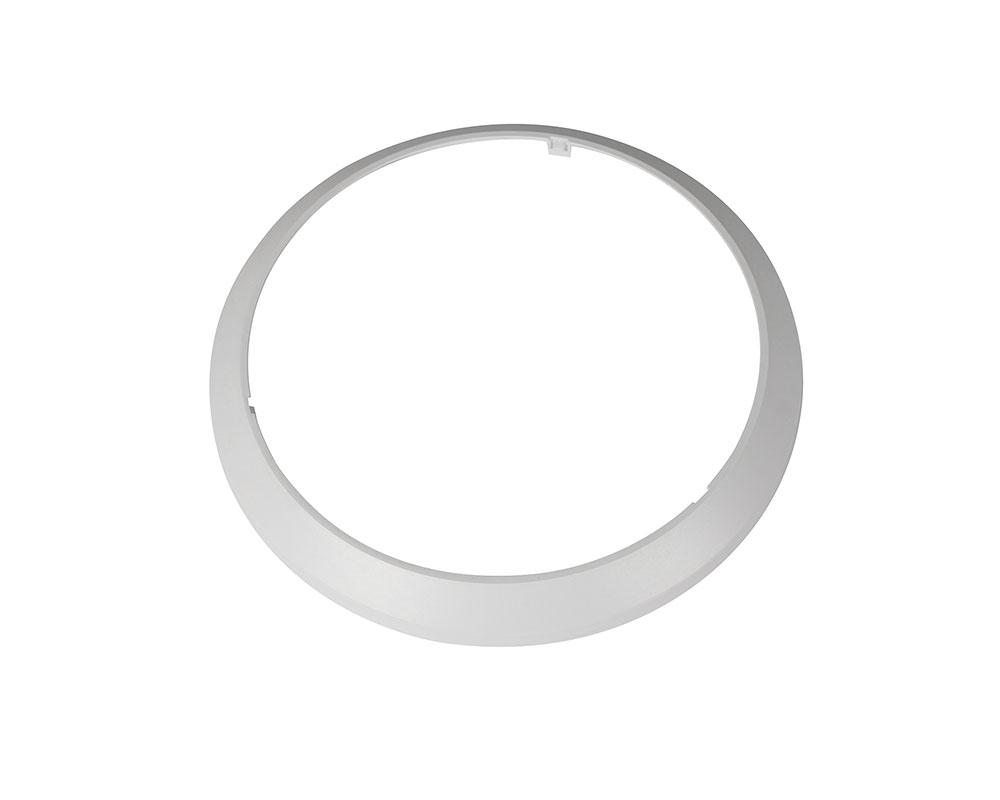

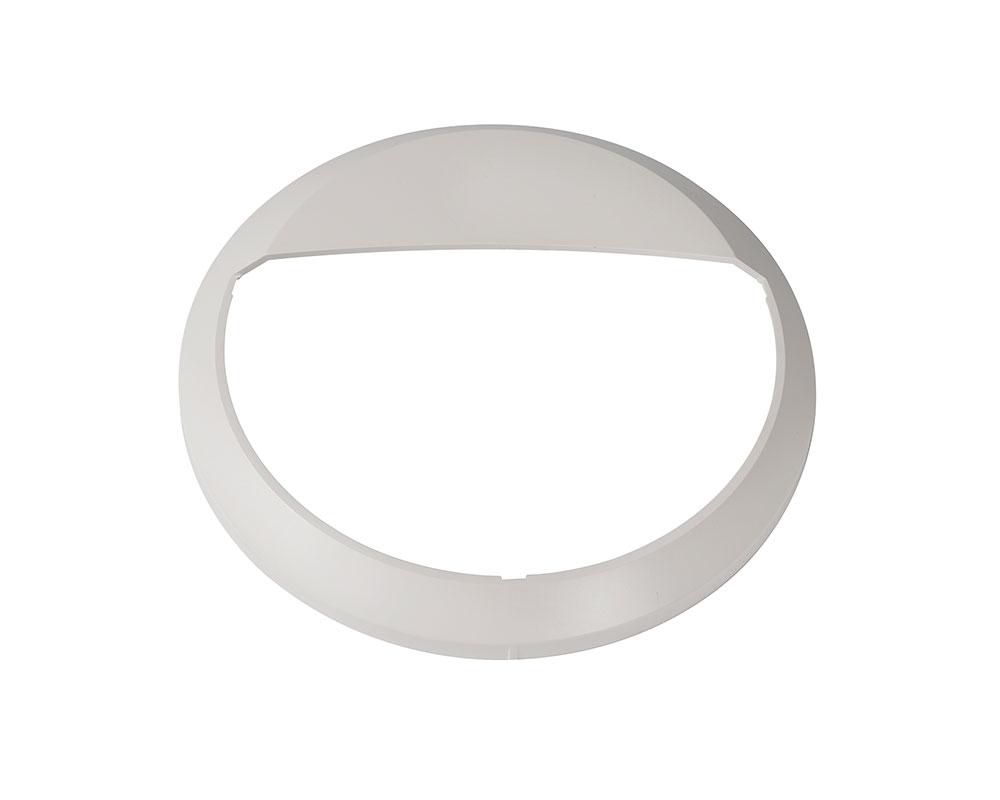

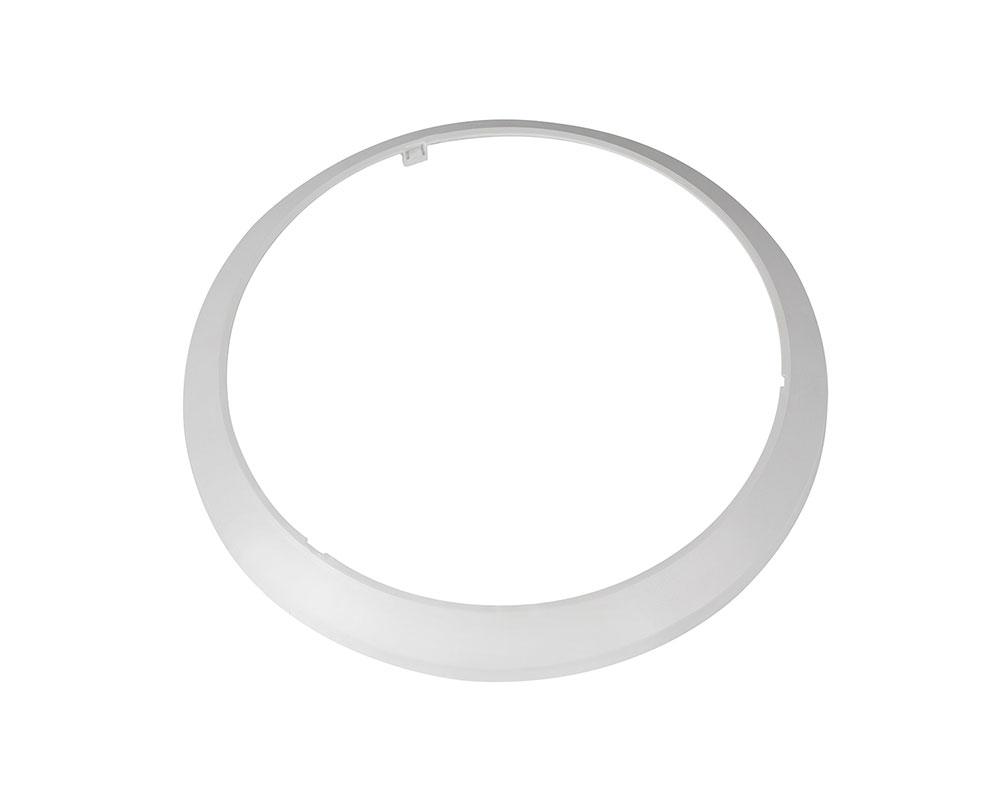

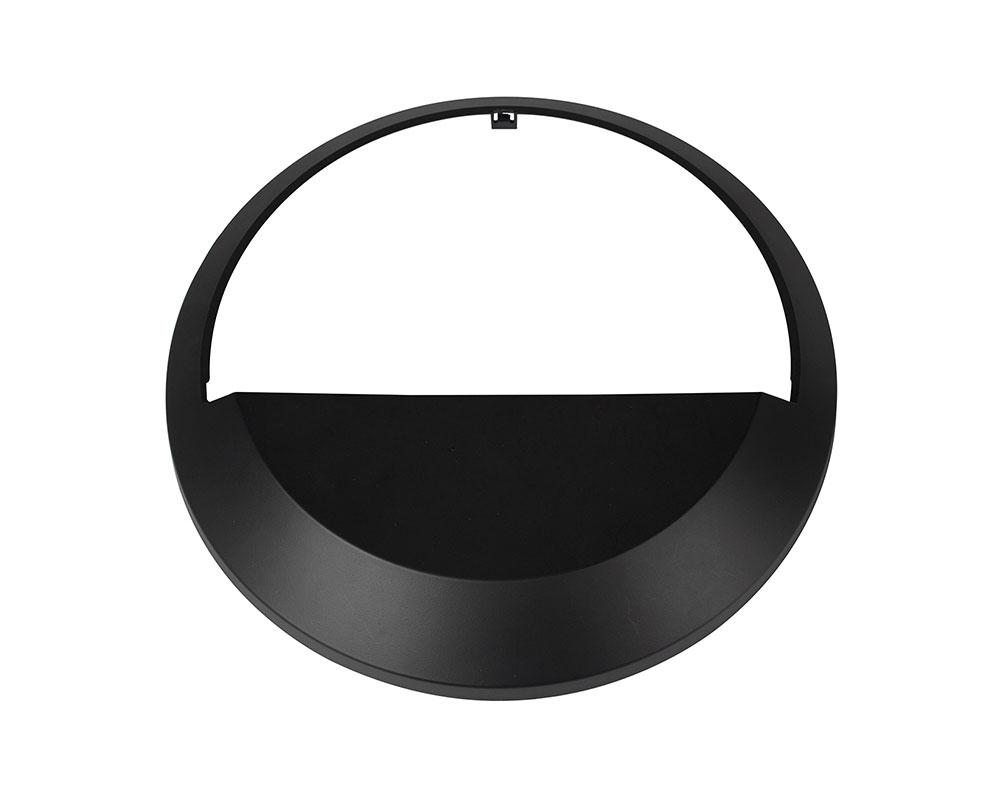

Optional plain bezel or eyelid trims in Black and White
Piano key terminal block for easy installation & allows loop in / out wiring
Hinged gear tray for easy access to terminal block & fixing points
3CCT with internal selector switch allows the installer to choose 3000K/4000K/5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours

Technical datas:

ModelYGBH2A
Input Voltage220-240V AC220-240V AC
Power Consumption (W):14W18W
Light output L100 (lm):1350±71750±7
CCT L100   (K):3000K/4000K/5000K(3CCT   SELECTABLE)
Power factor(PF)>0.9>0.9
Protection ClassClass IClass I
CRI L100:>80>80
Efficacy (lm/W):>95>95
Operating Temp-10°C to 25°C-10°C to 25°C
IP rating:IP65IP65
IK rating:IK10IK10
Dimension (mm):ɸ285*75ɸ285*75

Light Distribution Curve:


Lux Distance Curve:


Size:



Installation:
