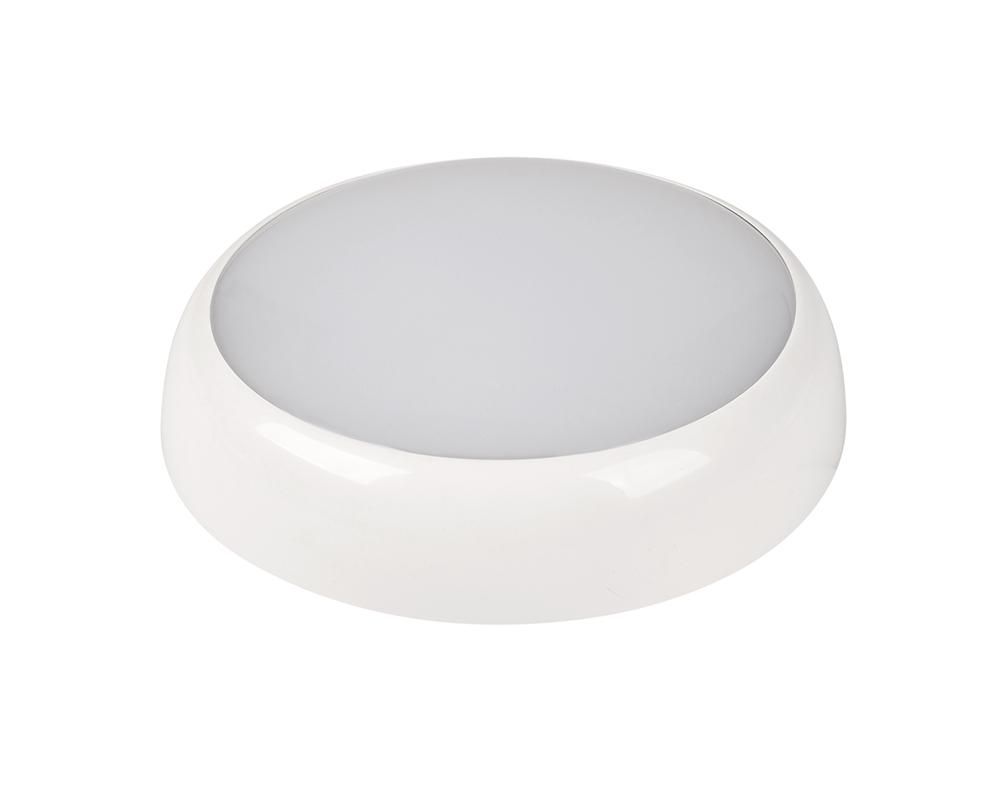

NEWYORK

Description

Polycarbonate construction
Multiple low power LED array & optically optimised diffuser: ensures a soft, even lighting effect with no degradation of light output
LED performance exceeds CFL equivalents
Push fit feed-in, feed-out terminals for speed and ease of installation
Internal CCT selector switch allows the installer to choose the CCT between 3000K,4000K and 5000K
Unique Visiluxe diffuser allows 90% light transmission from LED source for increased performance
LED lifespan L70 50,000 hours

Technical datas:


ModelYGBH8A
Input Voltage220-240V AC220-240V AC
Power Consumption (W):14W18W
Light output L100 (lm):1350±71750±7
CCT L100   (K):3000K/4000K/5000K(3CCT   SELECTABLE)
Power factor(PF)>0.9>0.9
Protection ClassClass IClass I
CRI L100:>80>80
Efficacy (lm/W):>95>95
Operating Temp-10°C to 25°C-10°C to 25°C
IP rating:IP44IP44
IK rating:IK08IK08
Dimension (mm):ɸ282*80ɸ282*80

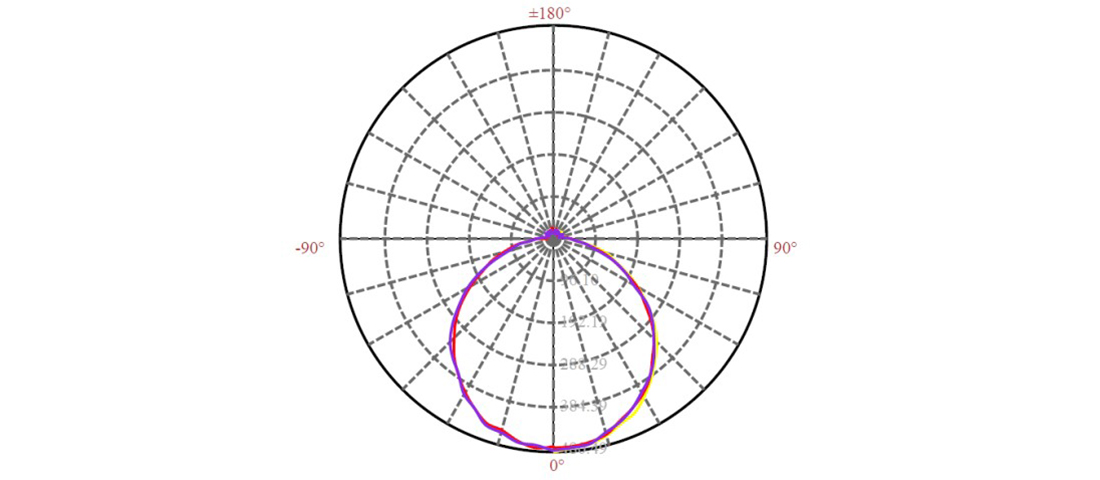

Light Distribution Curve:

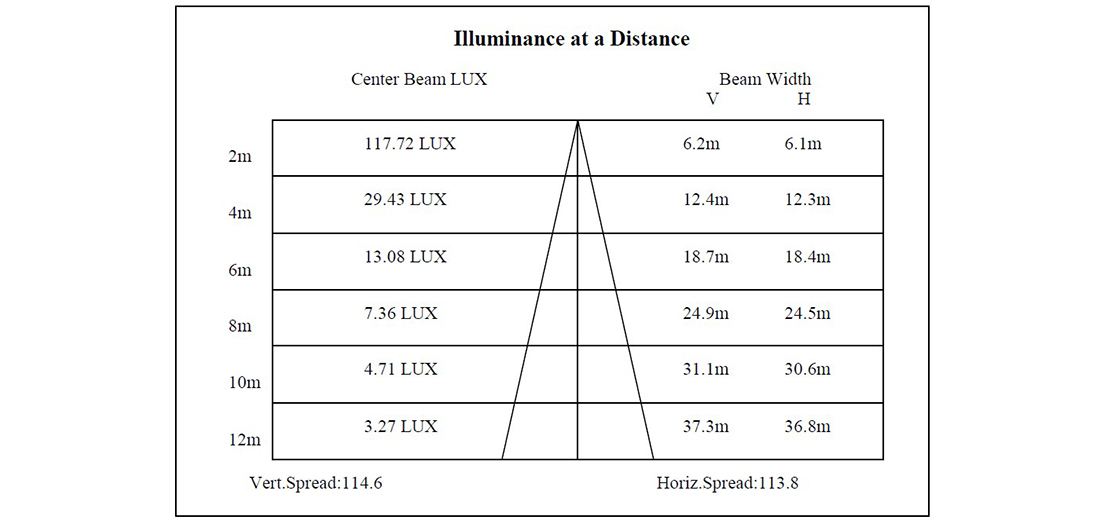

Lux Distance Curve:

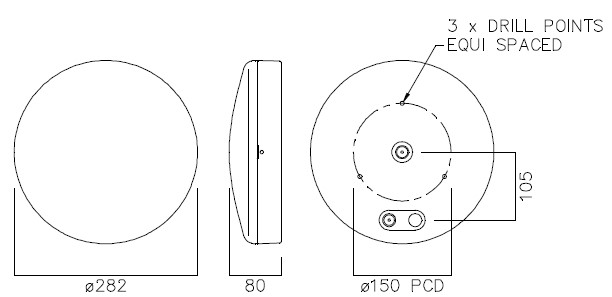

Size:

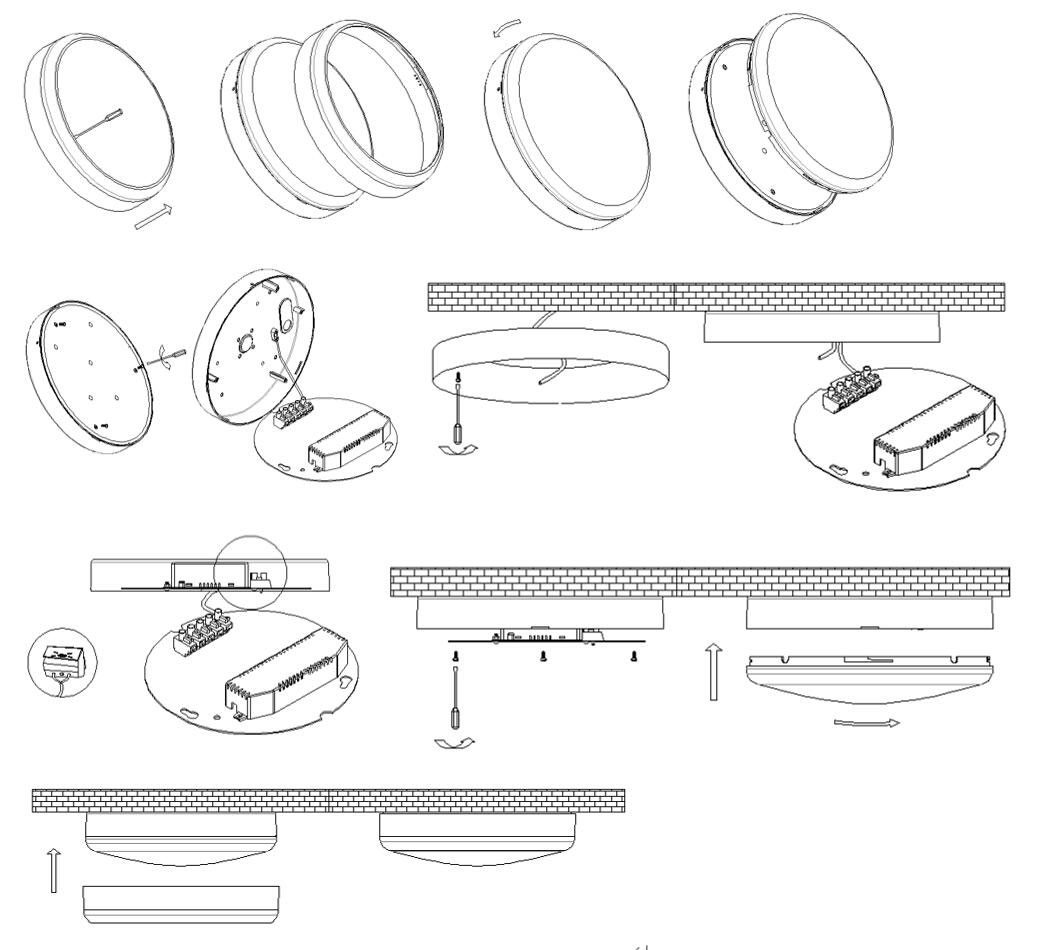

Installation:
