Steel body with powder coat finish
Slide open,opal polycarbonate diffuser design
High lumen efficiency up to: 120lm/W
Fit push, tool-less terminal block for quick install mains supply
3 CCT selectable, one product provides 3000K/4000K/5000K colour temperature options.
ENEC approved flicker free driver
Suitable for use in flat and apartment blocks, public buildings, care home, communal areas.
Emergency, microwave sensor, Dali function available
Technical datas:
| Model | YGBT10J-001 | YGBT10J-002 | YGBT10J-003 | YGBT10J-004 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 20W | 50W | 65W | 75W |
| Light output L100 (lm): | 2400±7％ | 6000±7％ | 7800±7％ | 8600±7％ |
| CCT L100 (K): | 3000k/4000K/5000K | |||
| Power factor(PF) | >0.9 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >120 | >120 | >120 | >120 |
| IP rating: | IP20 | IP20 | IP20 | IP20 |
| Dimension (mm): | 600X165X65 | 1200X165X65 | 1500X165X65 | 1800X165X65 |

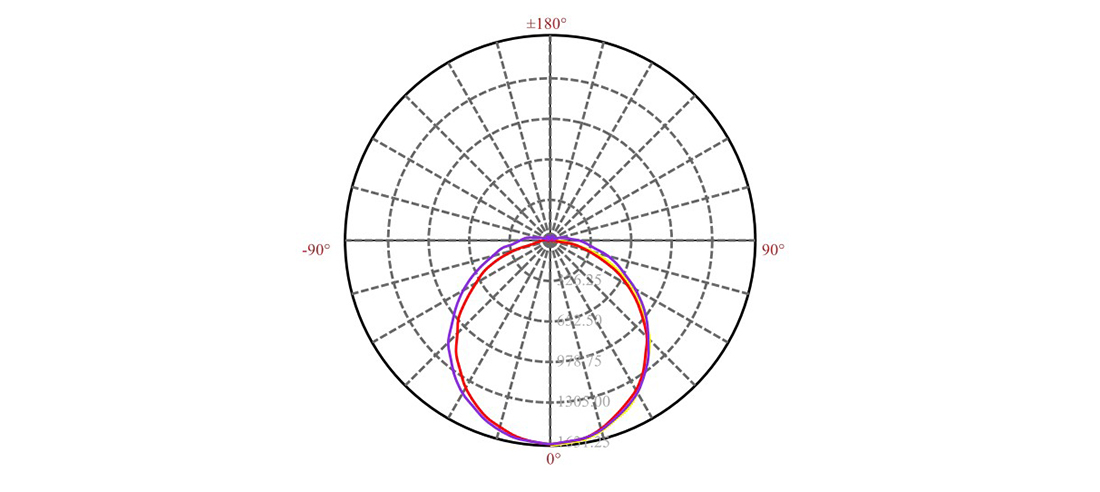

Light Distribution Curve:

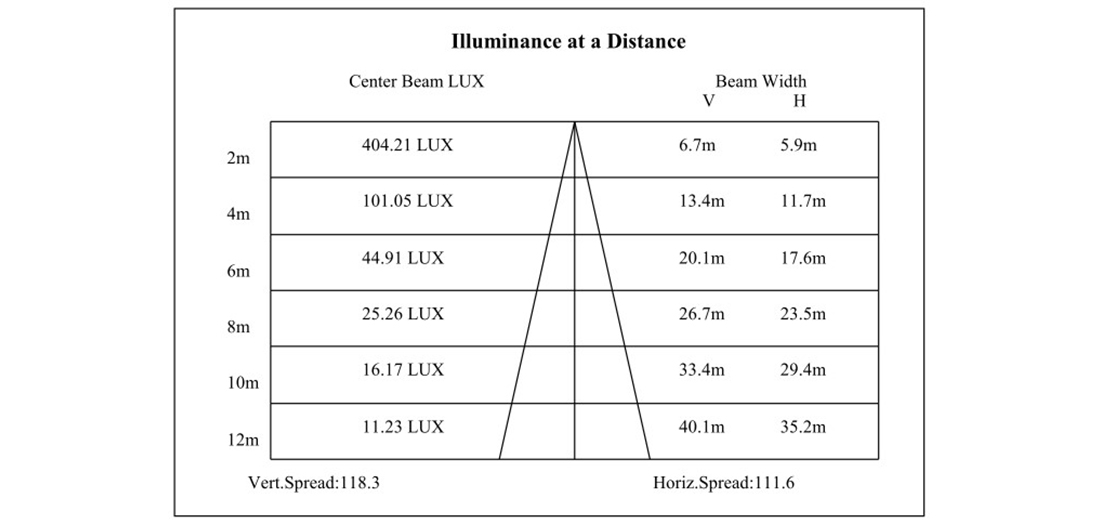

Lux Distance Curve:

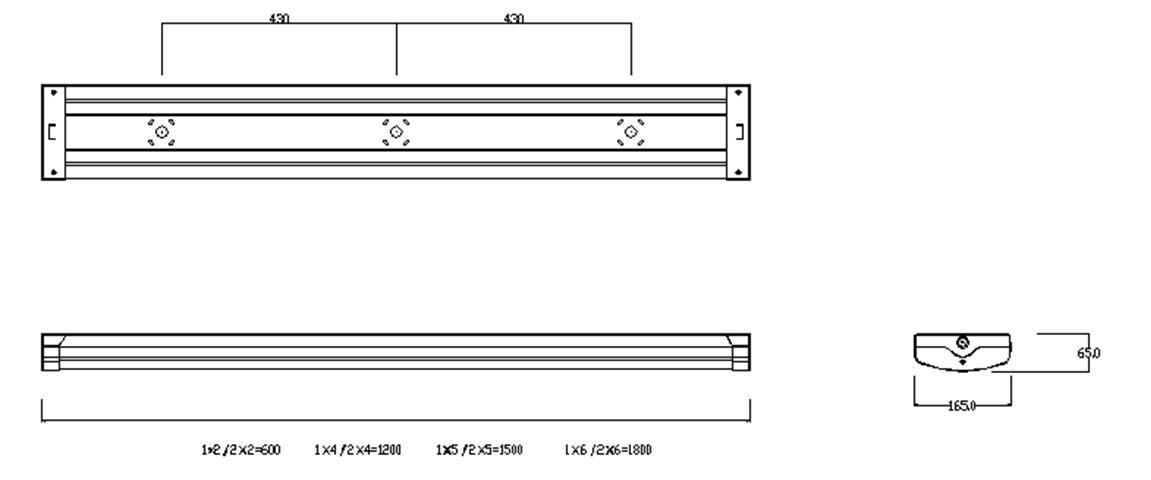

Size:

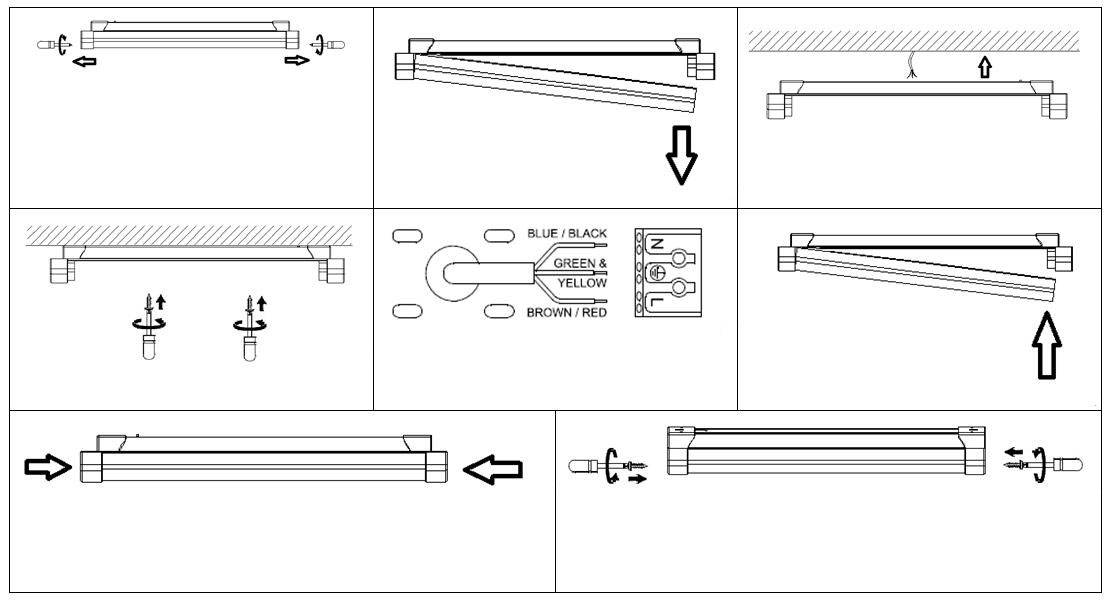

Installation:
