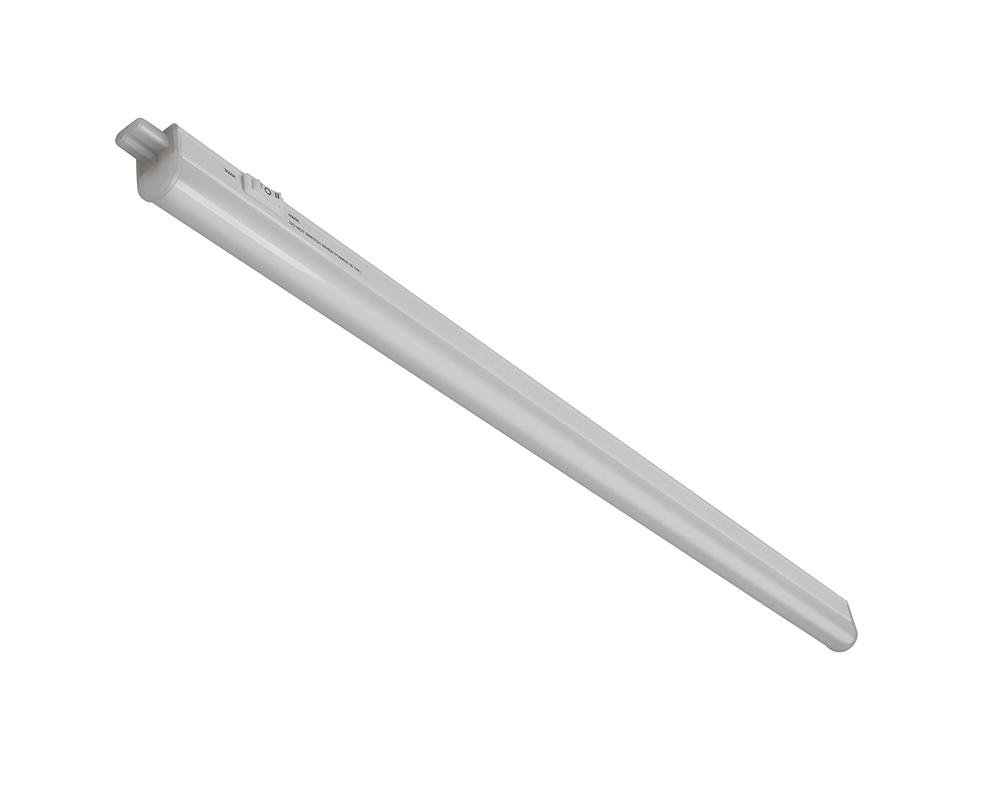

Ultra slim profile polycarbonate body and diffuser
Warm and cool white versions with high CRI LED’s,
Energy saving of up to 50% compared with traditional T5 striplights.
Integral LED driver, Integral switch

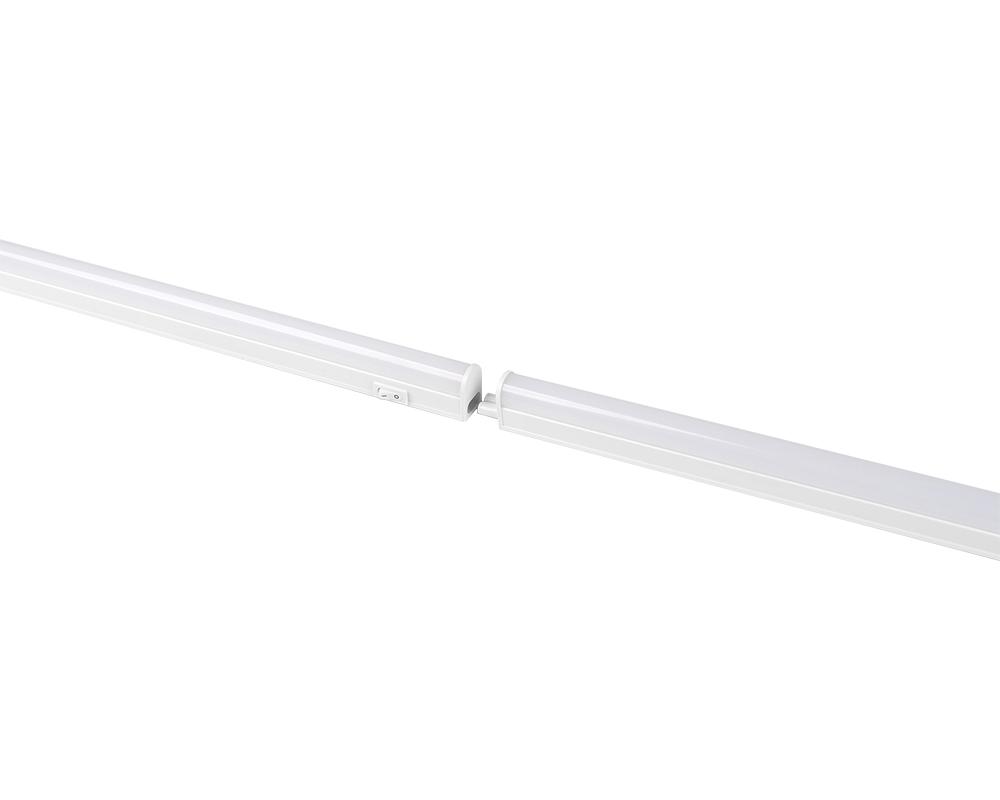

Link up to 15 fittings with linking cable or by plugging fittings directly together
Caters for most cupboard or unit sizes to ensure uniform light distribution and effect
Suitable for use in cabinet displays, kitchen wall units, workbench lighting, wardrobe lighting, under counter, bed headboard.
CCT selectable, Linkable
Technical data:
| Model | YGCB9C-01 | YGCB9C-02 | YGCB9C-03 | YGCB9C-04 | YGCB9C-05 | YGCB9C-06 | YGCB9C-07 |
| Input Voltage | 220-240V | 220-240V | 220-240V | 220-240V | 220-240V | 220-240V | 220-240V |
| Power Consumption (W): | 3W | 4W | 7W | 8W | 14W | 18W | 22W |
| Light output L100 (lm): | 310 | 400 | 680 | 810 | 1470 | 1800 | 2050 |
| CCT L100 (K): | 4000K | 4000K | 4000K | 4000K | 4000K | 4000K | 4000K |
| Power factor(PF) | >0.4 | >0.4 | >0.5 | >0.5 | >0.5 | >0.5 | >0.5 |
| Protection Class | Ⅱ | Ⅱ | Ⅱ | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
| CRI L100: | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | 103 | 100 | 97 | 101 | 105 | 100 | 93 |
| IP rating: | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Dimension (mm): | 268*22*31 | 343*22*31 | 571*22*31 | 605*22*31 | 905*22*31 | 1205*22*31 | 1505*22*31 |

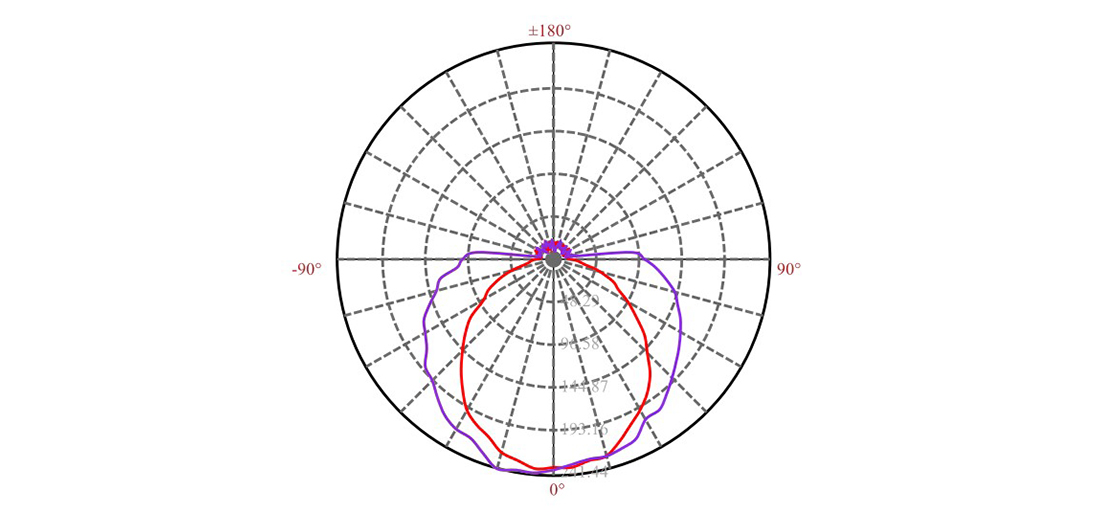

Light Distribution Curve:

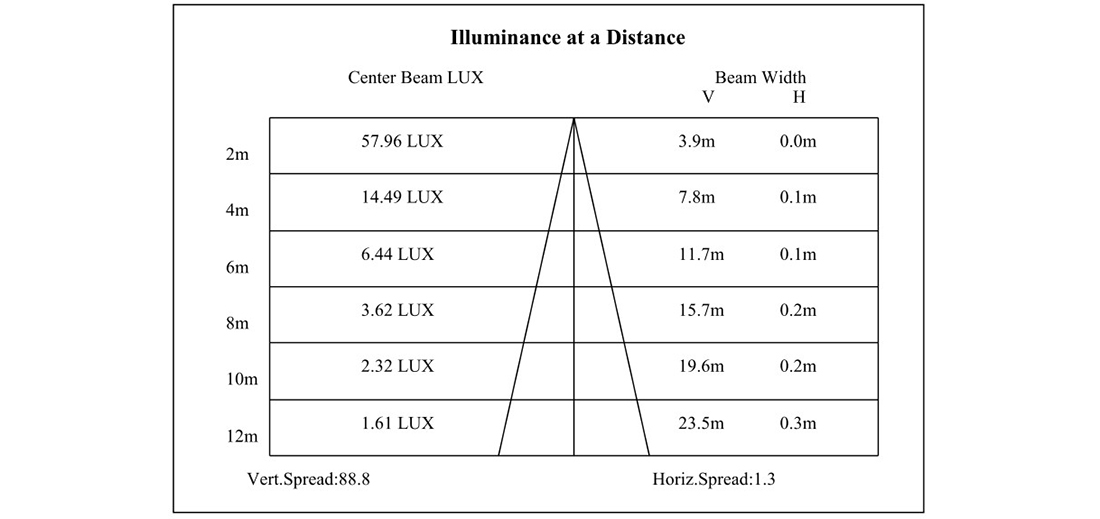

Lux Distance Curve:

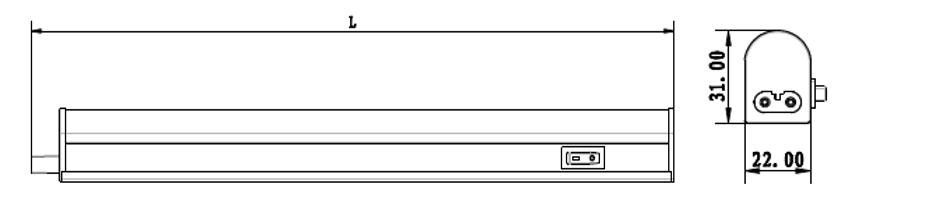

Size:

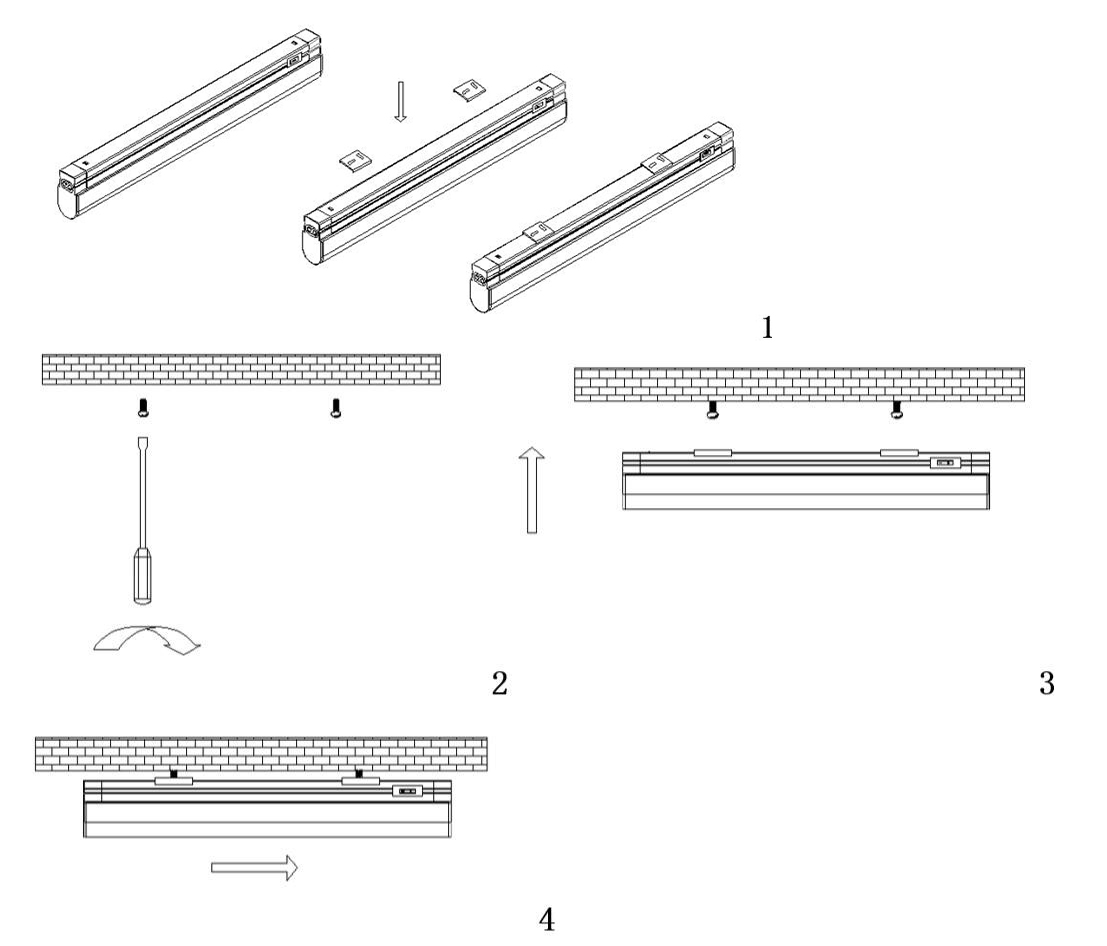

Installation:
