- IP66
- PC diffuser,PC base
- Metal Geartray
- Clips can be locked by screws
- Easy installation
- 5 years warranty
Warehouses,car parks,supermarkets,food factory,clean room,marine etc.
Emitting color:CCT1/CCT3
Function:on-off microwave sensor/dimmable sensor/1-10Vdimmable/DALI/emergency/through wiring
Installation:Surface mounting/suspending
Technical datas:
| Model | SNT-SCLED110-2F-G1 | SNT-SCLED210-2F-G1 | SNT-SCLED124-4F-G1 | SNT-SCLED220-4F-G1 |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 10W | 20W | 24W | 40W |
| Light output L100 (lm): | 1150LM | 2300LM | 2760LM | 4600LM |
| CCT L100 (K): | 3000-6500K | |||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 | ＞0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | ＞80 | ＞80 | ＞80 | ＞80 |
| Efficacy (lm/W): | 115LM/W | 115LM/W | 115LM/W | 115LM/W |
| Ingress protection (IP): | IP66 | IP66 | IP66 | IP66 |
| SIZE(mm): | 600*80*72 | 600*100*72 | 1200*80*72 | 1200*100*72 |
| Model | SNT-SCLED130-5F-G1 | SNT-SCLED230-5F-G1 | SNT-SCLED140-6F-G1 | SNT-SCLED240-6F-G1 |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 30W | 60W | 40W | 80W |
| Light output L100 (lm): | 3450LM | 6900LM | 4600LM | 9000LM |
| CCT L100 (K): | 3000-6500K | |||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 | ＞0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | ＞80 | ＞80 | ＞80 | ＞80 |
| Efficacy (lm/W): | 115LM/W | 115LM/W | 115LM/W | 115LM/W |
| Ingress protection (IP): | IP66 | IP66 | IP66 | IP66 |
| SIZE(mm): | 1500*80*72 | 1500*100*72 | 1800*80*72 | 1800*100*72 |

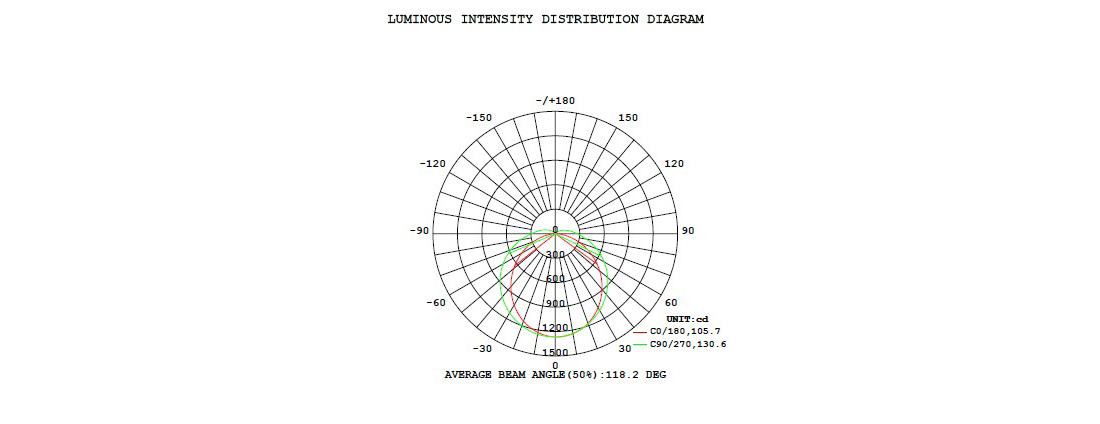

Light Distribution Curve:

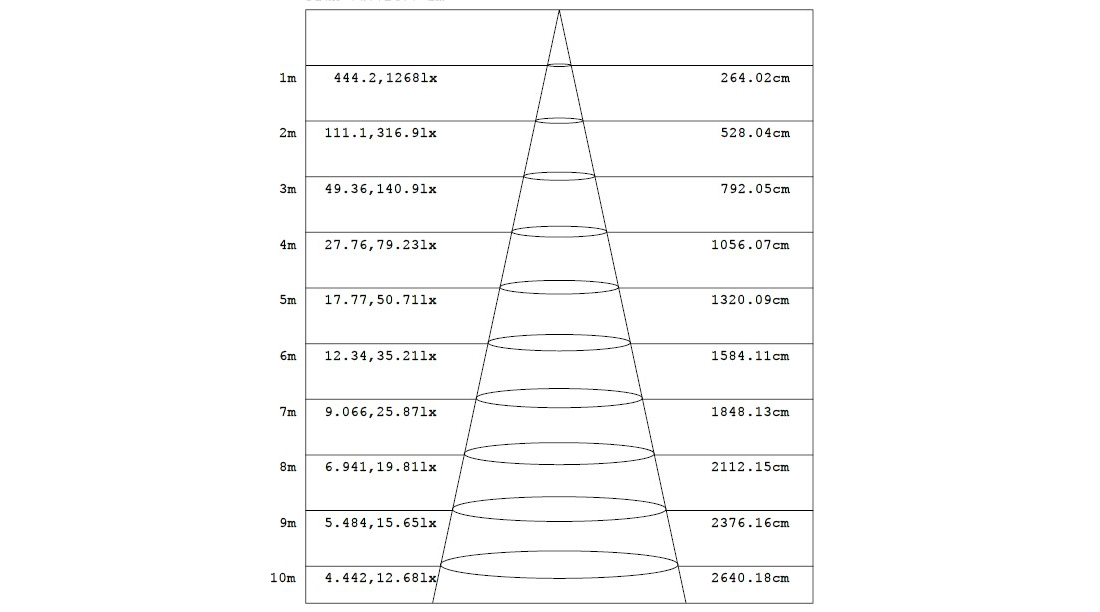

Lux Distance Curve:

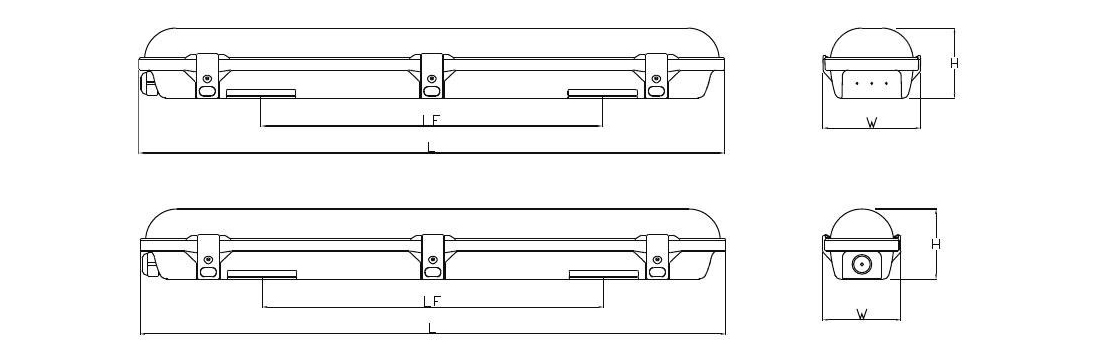

Size:

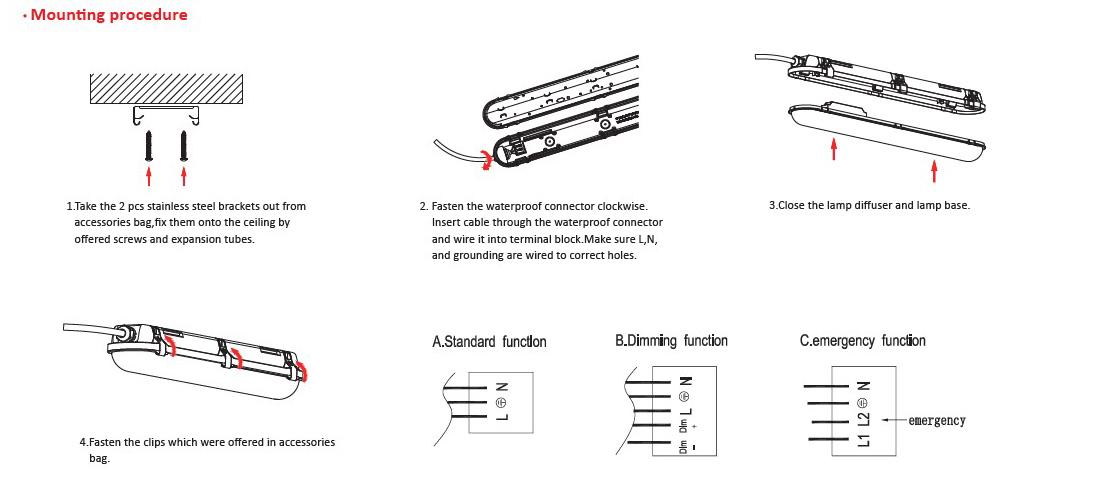

Installation:
