- IP66 waterproof
- Aluminum body
- Polycarbonate milky diffuser

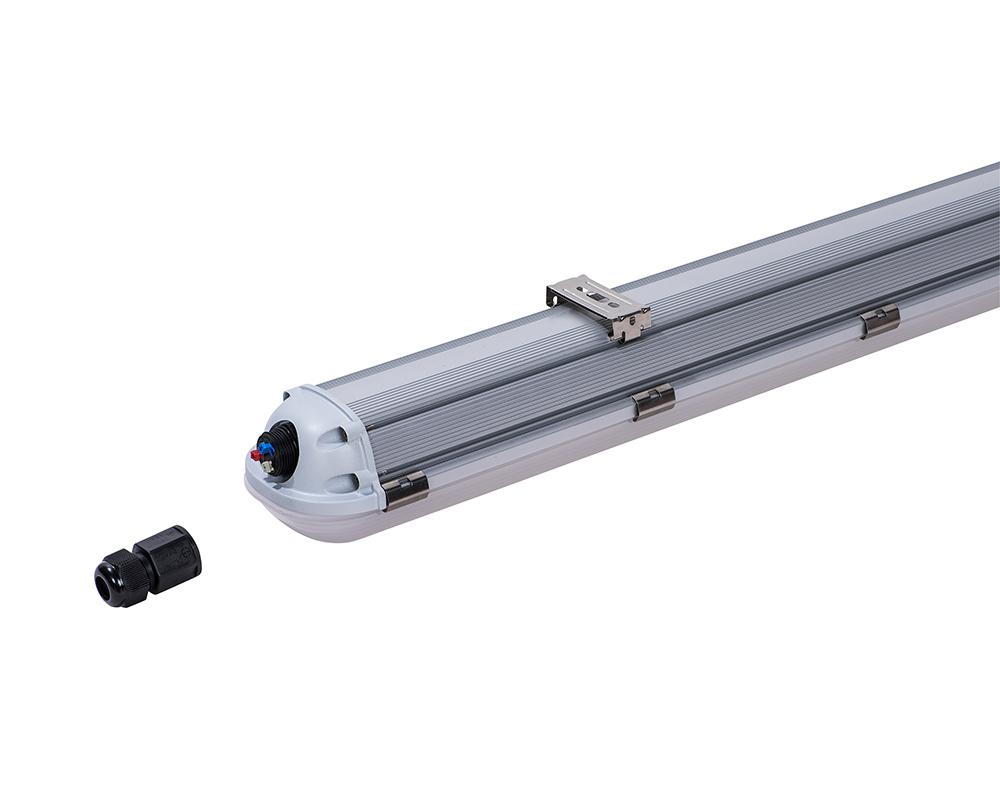

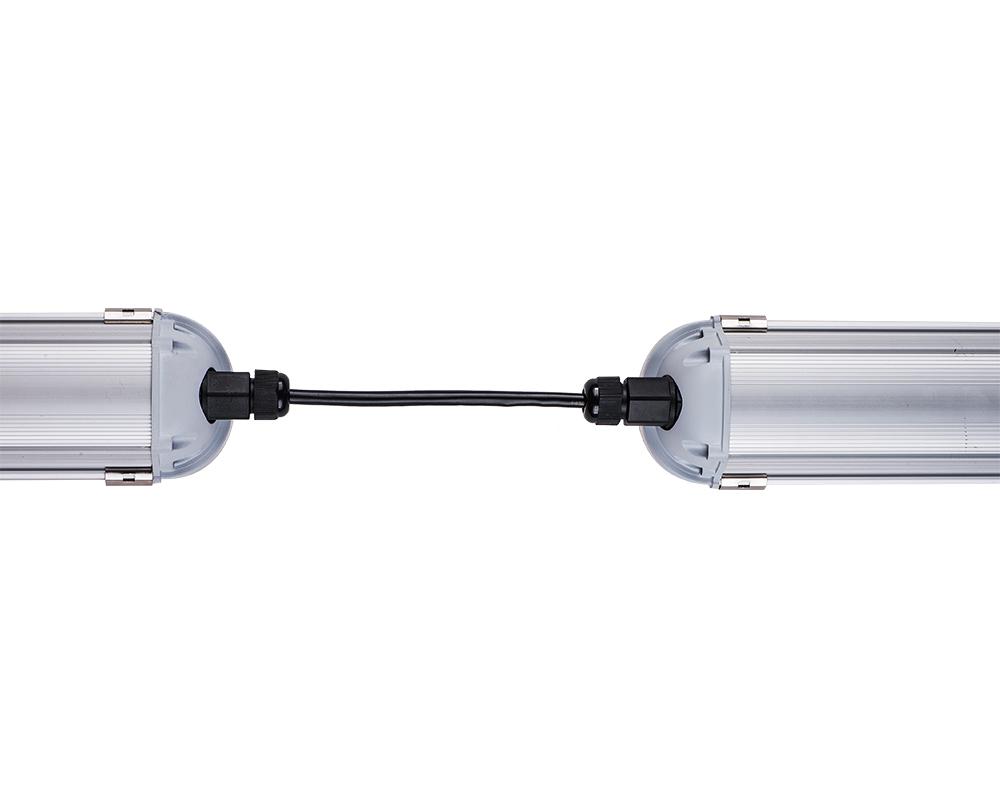

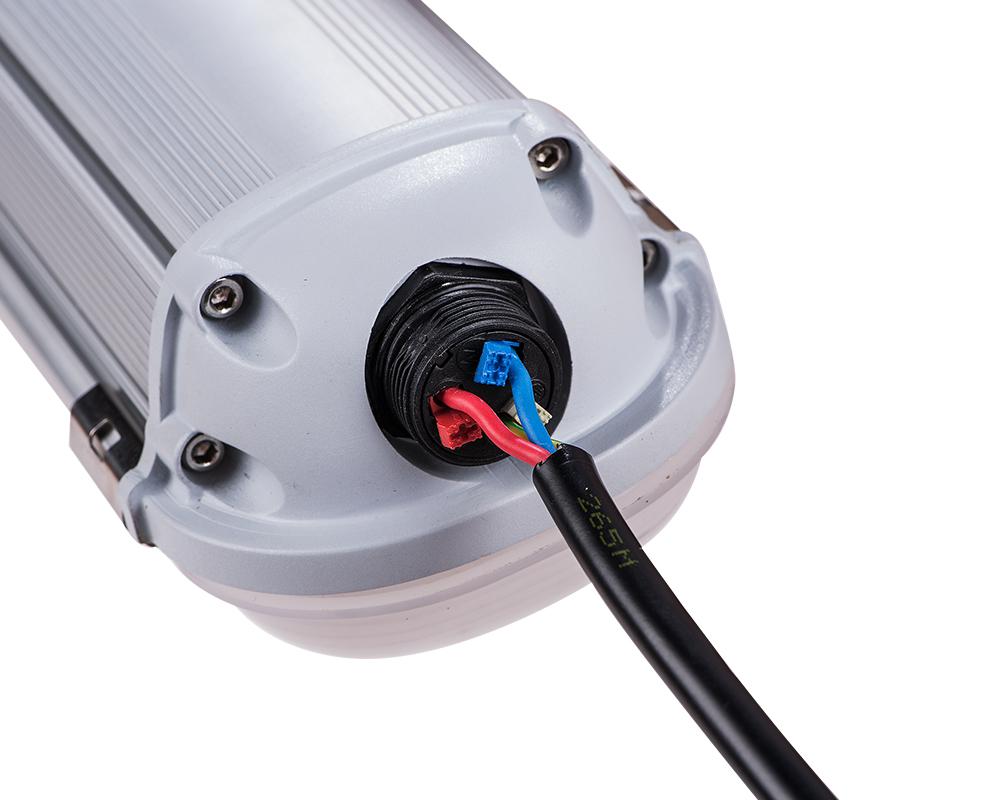

- Quick waterproof connector optional
- Easy installation
- 5 years warranty
Warehouses,car parks,supermarkets, food factory,clean room,marine etc
- Emitting color:CCT1

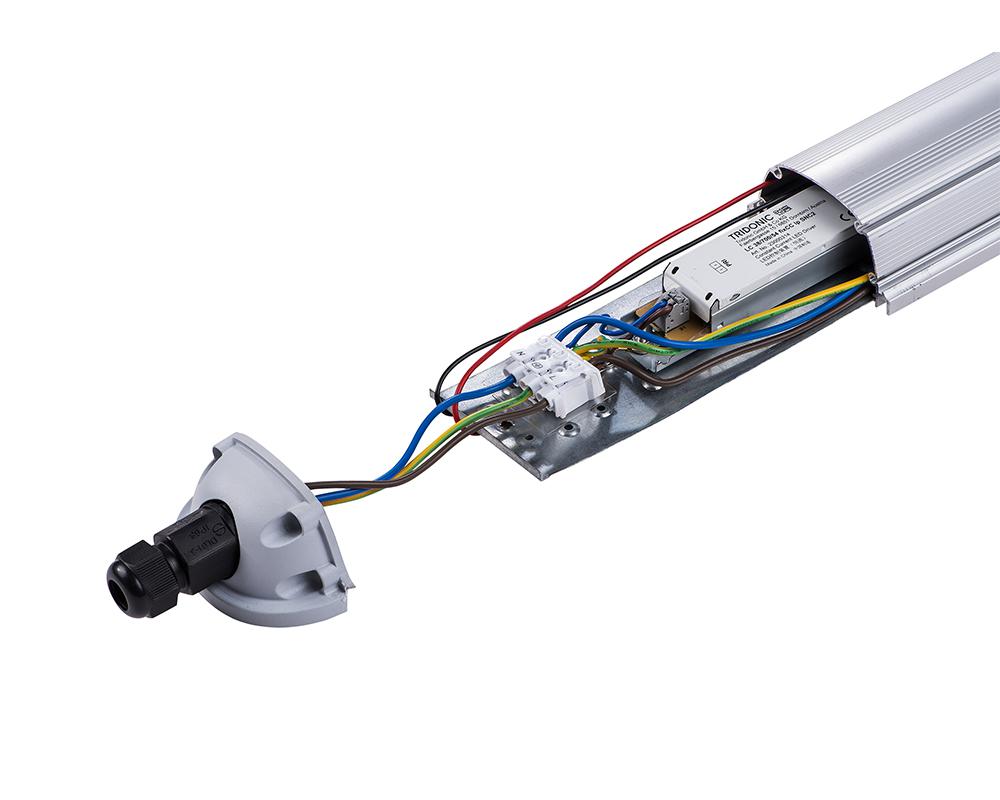

- Function:on-off microwave sensor /dimmable sensor/1-10V dimmable/DALI/emergency/through wiring
- Installation:Surface mounting/suspending
Technical data:
| Model | SNT-SHLED20-2F-QC | SNT-SHLED40-2F-QC | SNT-SHLED40-4F-QC | SNT-SHLED60-4F-QC |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 20W | 40W | 40W | 60W |
| Light output L100 (lm): | 2400LM | 4800LM | 4800LM | 7200LM |
| CCT L100 (K): | 4000K-6500K 4000K-6500K 4000K-6500K | 4000K-6500K | ||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 | ＞0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| IK rating: | IK08 | IK08 | IK08 | IK08 |
| IP rating: | IP65 | IP65 | IP65 | IP65 |
| Dimension (mm): | 600*90*73 | 600*90*73 | 1200*90*73 | 1200*90*73 |
| Model | SNT-SHLED60-5F-QC | SNT-SHLED75-5F-QC | ||
| Input Voltage | AC220-240V | AC220-240V | ||
| Power Consumption (W): | 60W | 70W | ||
| Light output L100 (lm): | 7200LM | 9000LM | ||
| CCT L100 (K): | ||||
| Power factor(PF) | ＞0.9 | ＞0.9 | ||
| Protection Class | Class I | Class I | ||
| CRI L100: | >80 | >80 | ||
| IK rating: | IK08 | IK08 | ||
| IP rating: | IP65 | IP65 | ||
| Dimension (mm): | 1500*90*73 | 1500*90*73 | ||

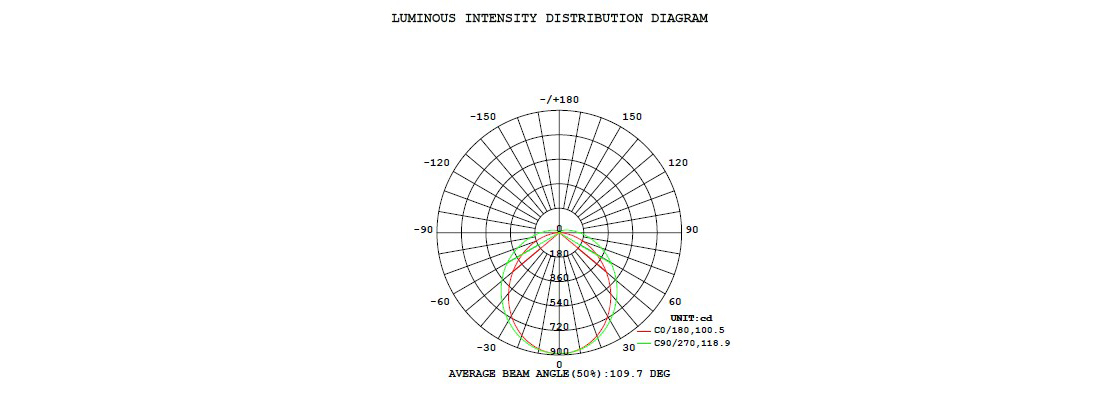

Light Distribution Curve:

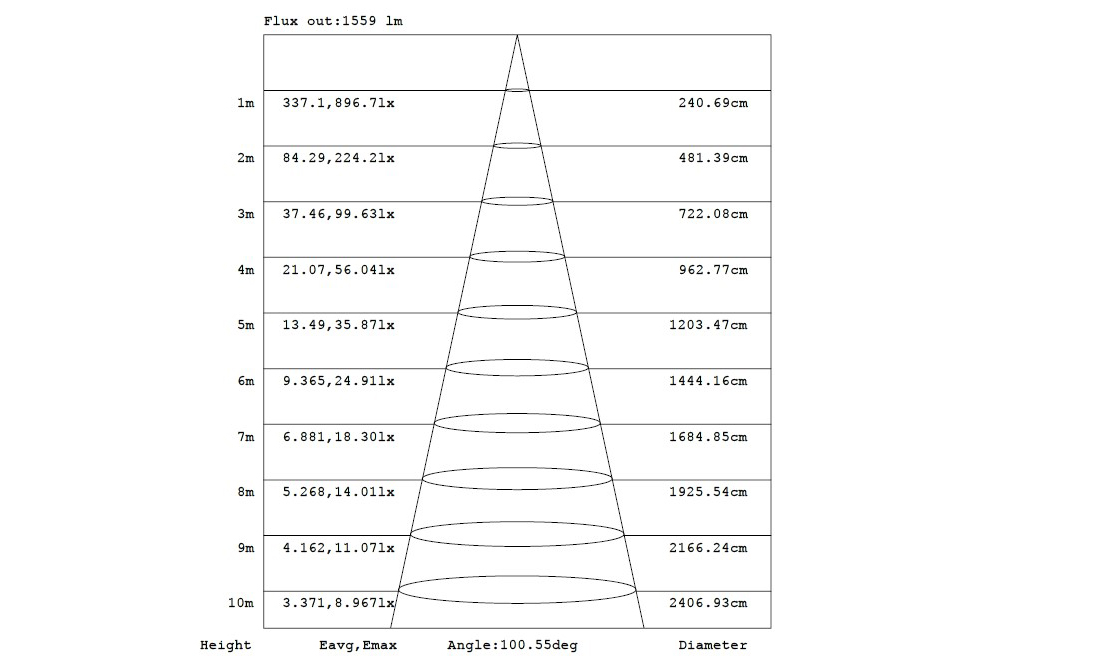

Lux Distance Curve:

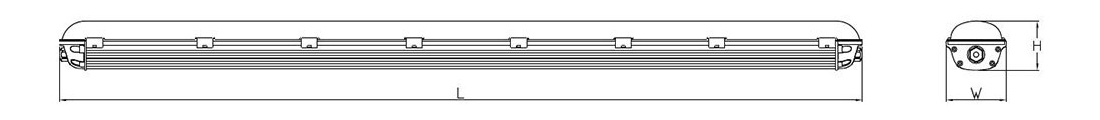

Size:

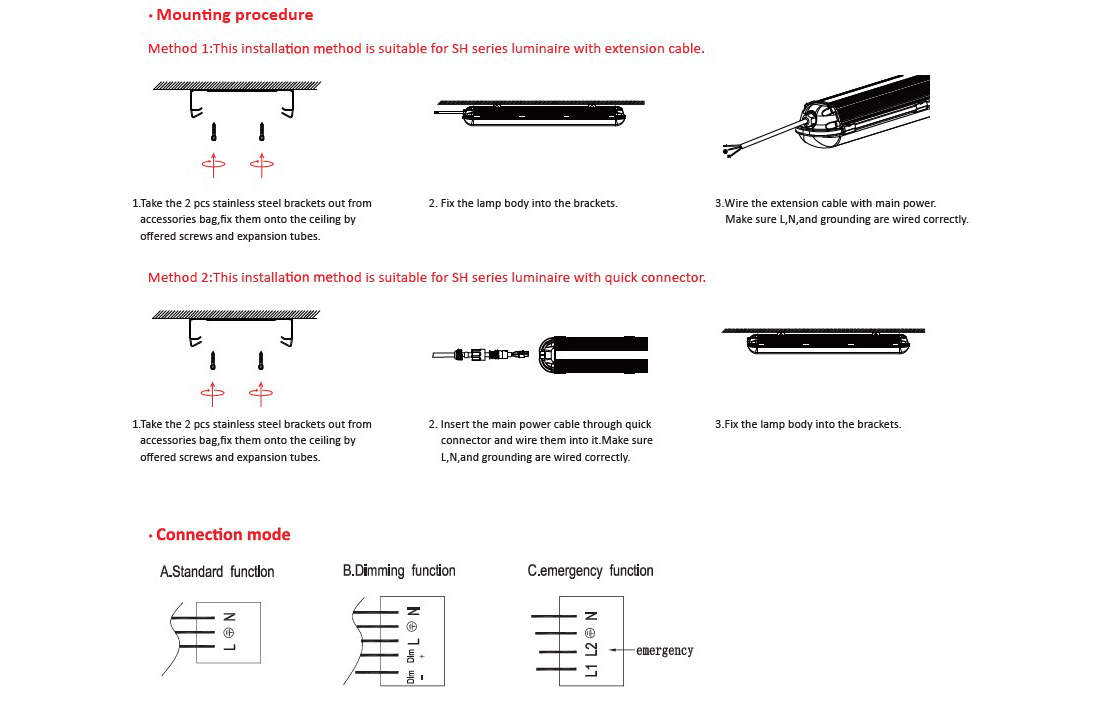

Installation:
