- IP65

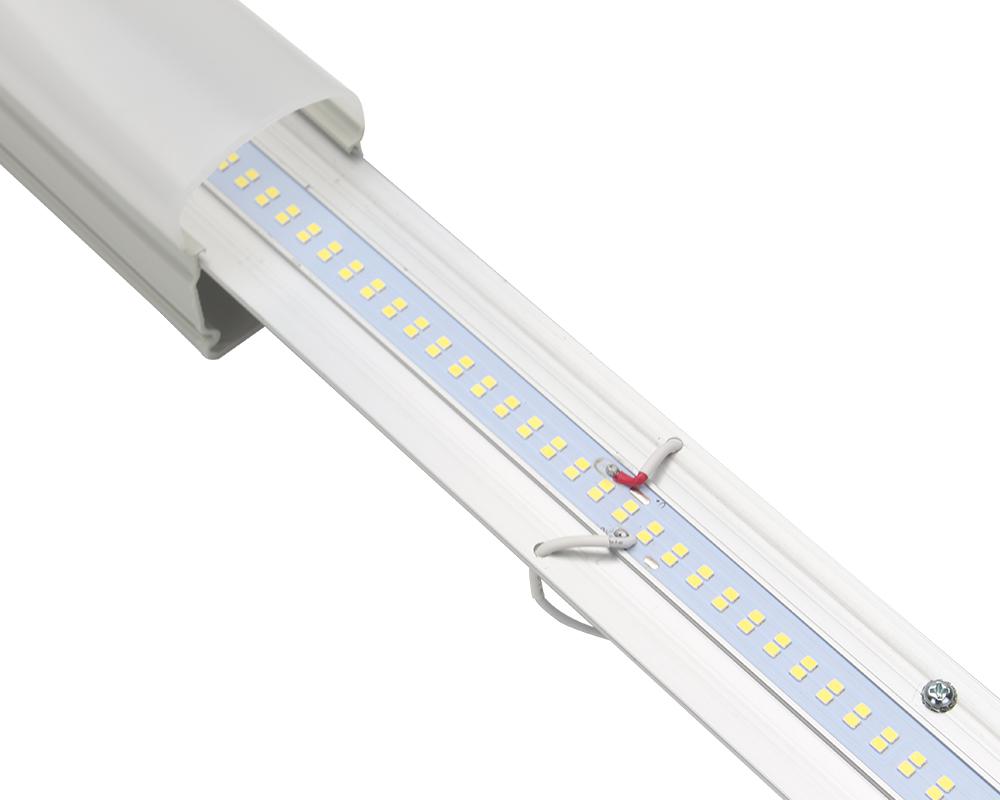

- PC diffuser,Aluminum heat sink

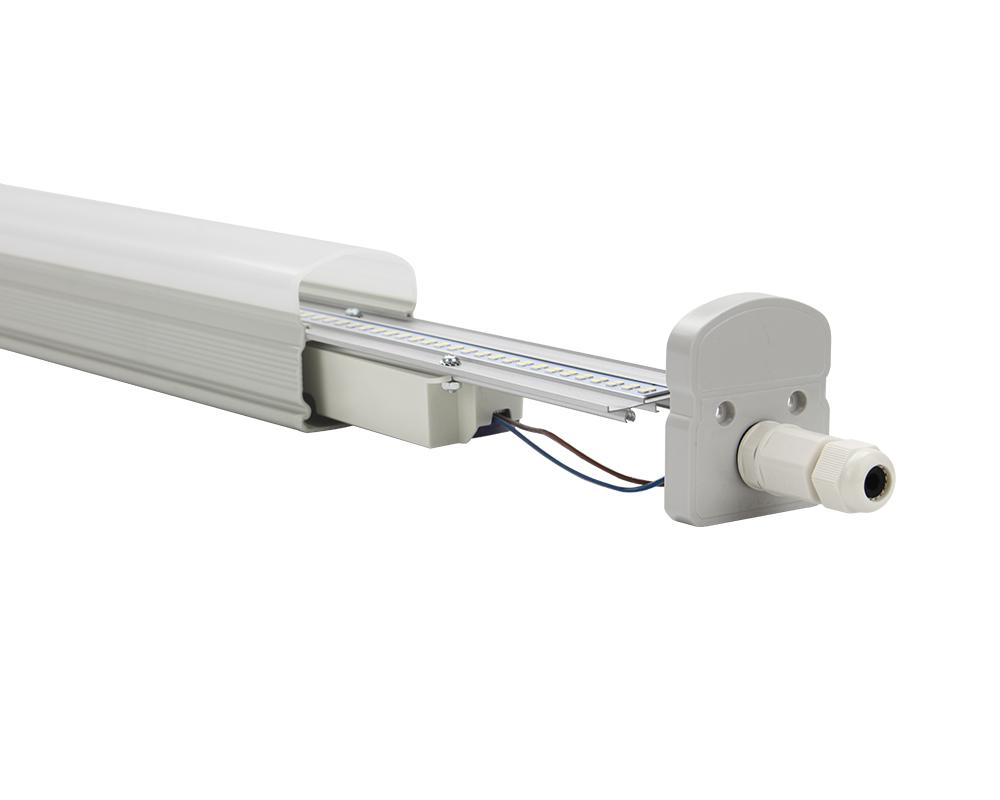

- Extrusion clips free design

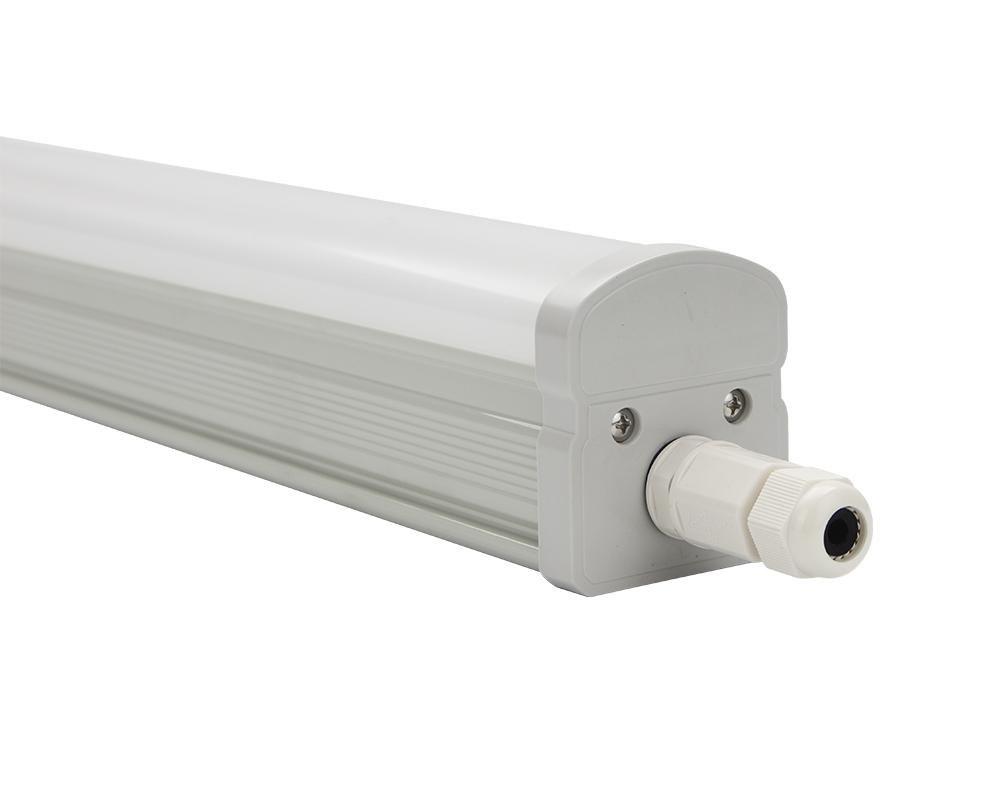

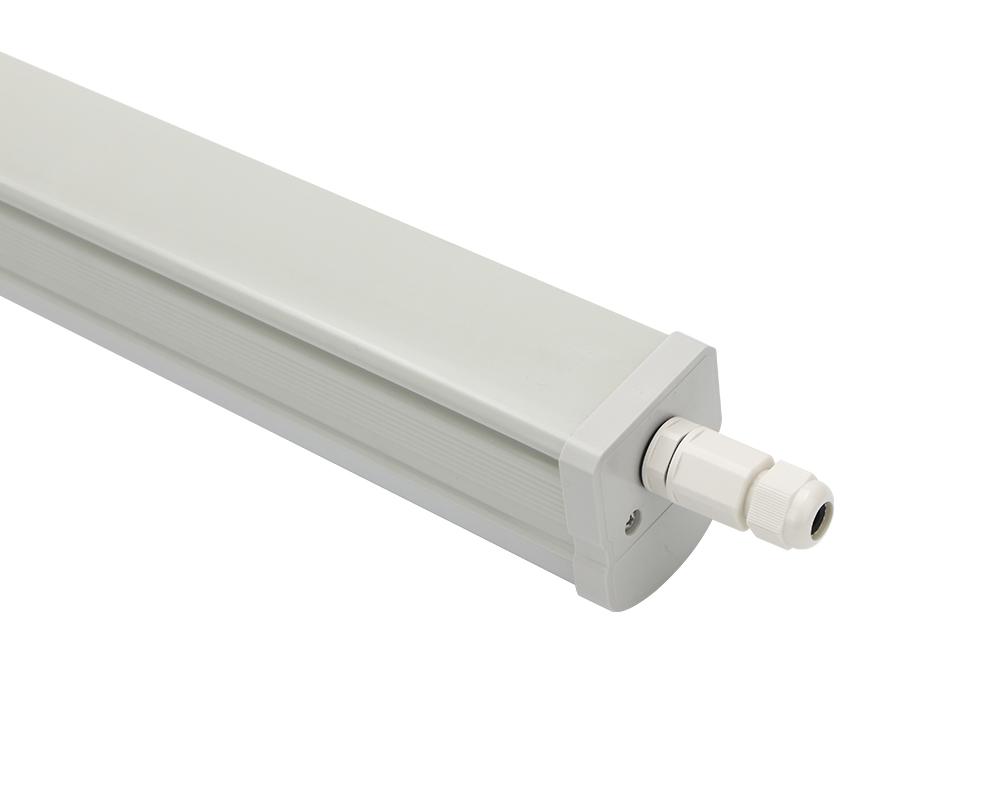

- With fast connector,easy installation
- 5 years warranty
Warehouses,car parks,supermarkets, food factory,clean room,marine etc
- Emitting color:CCT1
- Function:on-off microwave sensor /dimmable sensor/1-10V dimmable/DALI/emergency/through wiring
- Installation:Surface mounting/suspending
Technical data:
| Model | SNT-SILED20-2F | SNT-SILED36-4F | SNT-SILED50-5F |
| Input Voltage | AC220-240V | AC220-240V | AC220-240V |
| Power Consumption (W): | 20W | 36W | 50W |
| Light output L100 (lm): | 2200LM | 3960LM | 5500LM |
| CCT L100 (K): | 3000K-6000K | ||
| Power factor(PF) | ＞0.9 | ＞0.9 | ＞0.9 |
| Protection Class | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 |
| IK rating: | IK08 | IK08 | IK08 |
| IP rating: | IP65 | IP65 | IP65 |
| Dimension (mm): | 600*68*63 | 1200*68*63 | 1500*68*63 |

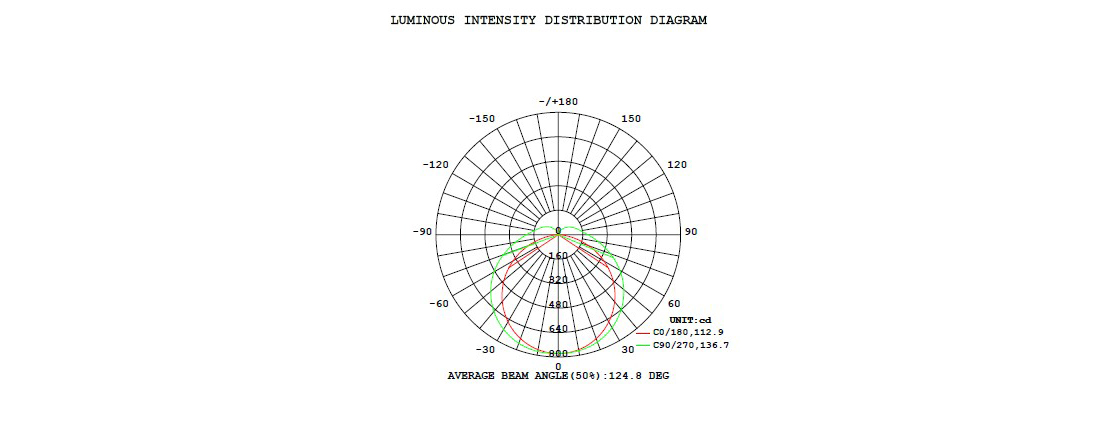

Light Distribution Curve:

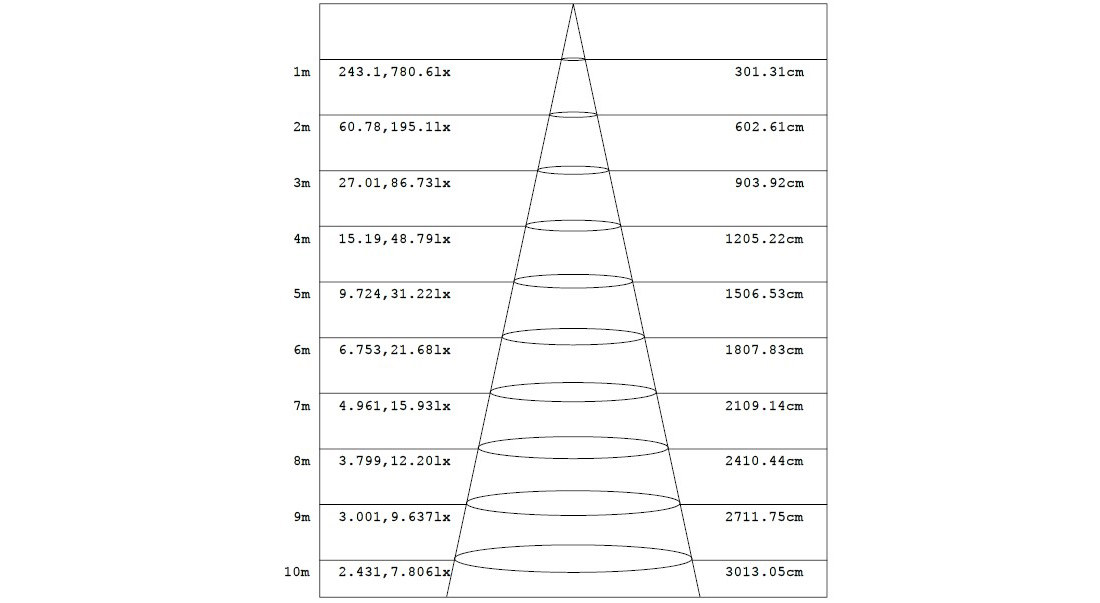

Lux Distance Curve:

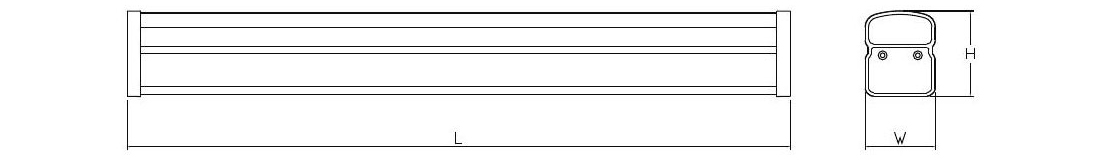

Size:

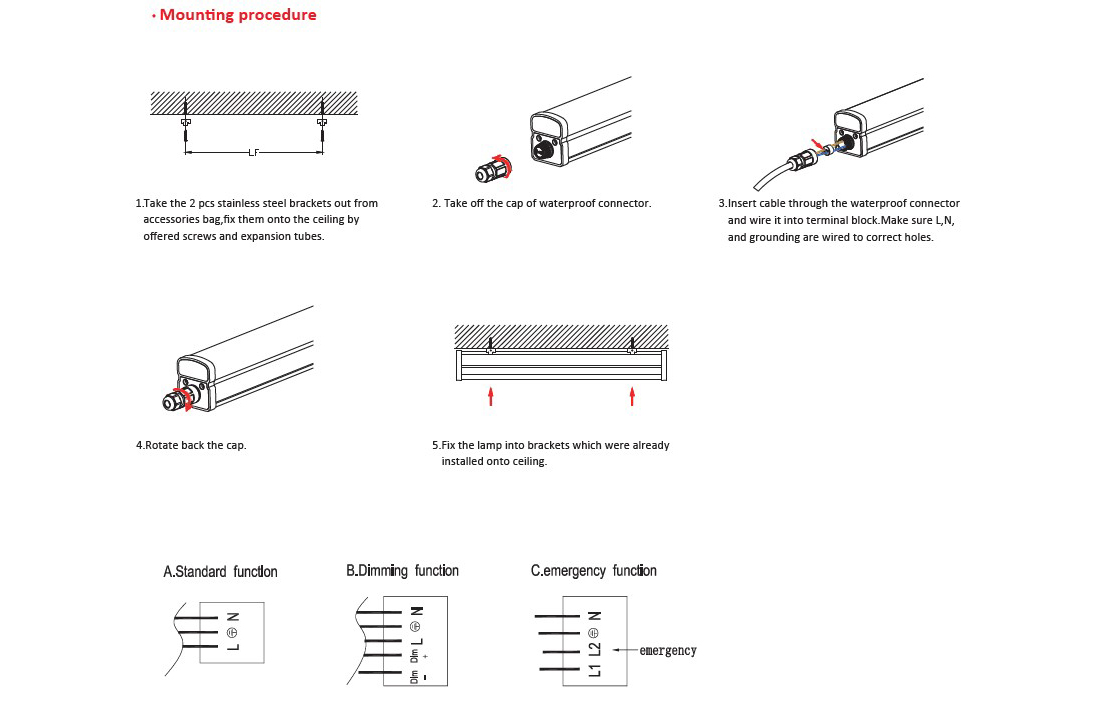

Installation:
