- IP65
- PC diffuser,PC base
- Steel gear tray optional
- Clips free
- Easy installation
- 5 years warranty
Warehouses,car parks,supermarkets,food factory,clean room,marine etc.
Emitting color:CCT1/CCT3
Function:on-off microwave sensor/dimmable sensor/1-10Vdimmable/DALI/emergency/through wiring
Installation:Surface mounting/suspending
Technical datas:
| Model | SNT-SCLED110-2F-G1 | SNT-SCLED210-2F-G1 | SNT-SCLED124-4F-G1 | YGBT10A-007 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 12W | 25W | 40W | 50W |
| Light output L100 (lm): | 1300±7％ | 2700±7％ | 4200±7％ | 5400±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |||
| Power factor(PF) | >0.85 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >110 | >110 | >110 | >110 |
| Ingress protection (IP): | IP65 | IP65 | IP65 | IP65 |
| SIZE(mm): | 600*63*74 | 1200*63*74 | 1500*63*74 | 1800*63*74 |
| Model | YGBT10A-002 | YGBT10A-004 | YGBT10A-006 | YGBT10A-008 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 25W | 50W | 65W | 75W |
| Light output L100 (lm): | 2700±7％ | 5000±7％ | 7000±7％ | 8300±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |||
| Power factor(PF) | >0.9 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >105 | >105 | >105 | >105 |
| Ingress protection (IP): | IP65 | IP65 | IP65 | IP65 |
| SIZE(mm): | 600*63*74 | 1200*63*74 | 1500*63*74 | 1800*63*74 |

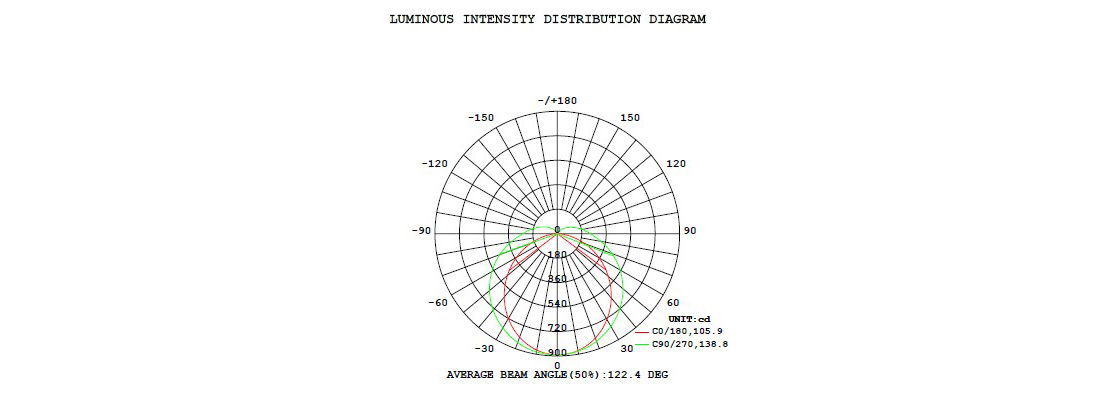

Light Distribution Curve:

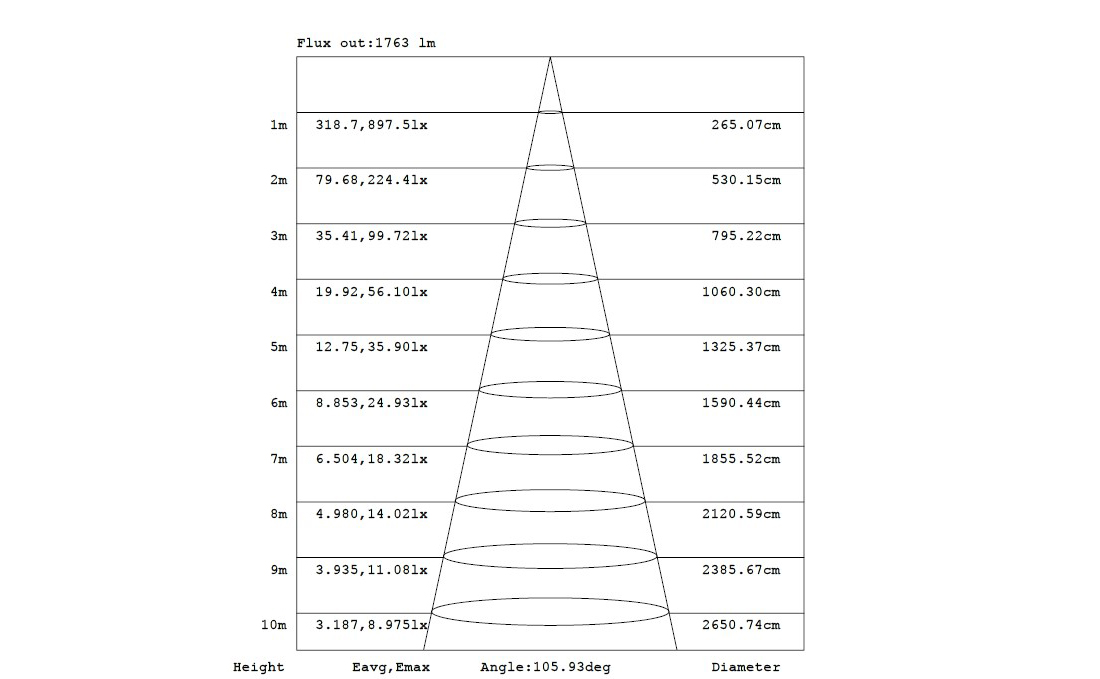

Lux Distance Curve:

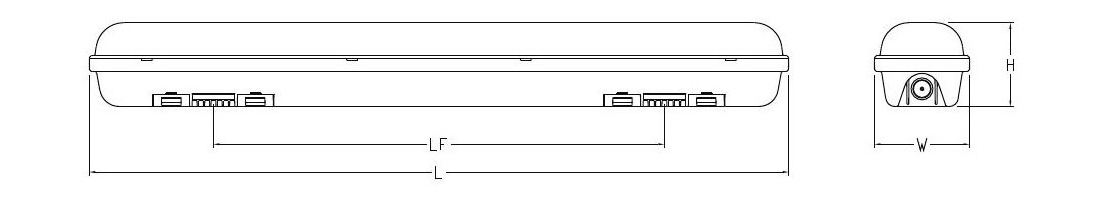

Size:

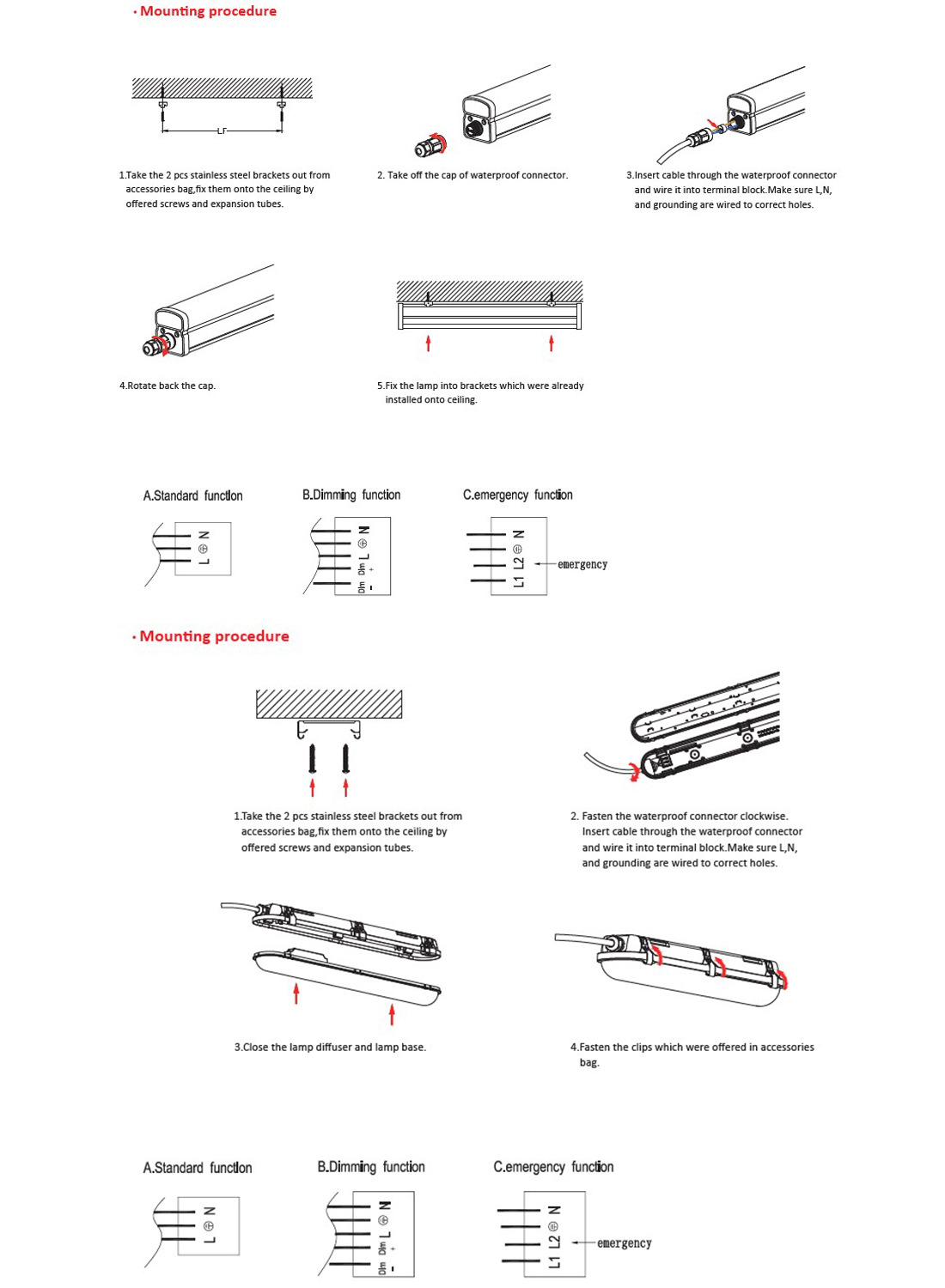

Installation:
