- Injection moulded White Polycarbonate body construction
- Acrylic lit panel
- Changeable PVC legend panel
- Supplied complete with arrow-down legend as shown
- Lithium Iron Phosphate (LiFePO4) battery cells (not suitable for use below 0oC)
- 3 hours operation on battery power after mains power failure
- Can be installed as maintained or non-maintained. Details in instructions.
- 30m maximum viewing distance
- Self-test version, compliant with BS5266 available.
- Corridors
- Exits
- Escape routes
- Self testing Version is available
- LEGENDS Alternative legends available
Technical datas:
| Model | YGRX5A-REX-04 | YGRX5A-RL04-20 | YGRX5A-RL04-20M |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 4W | 4W | 4W |
| Light output L100 (lm): | 38（charging）/50(discharging) | 47（charging）/53(discharging) | 47（charging）/53(discharging) |
| CCT L100 (K): | 6500K | ||
| Power factor(PF) | <0.5 | <0.5 | <0.5 |
| Protection Class | Class II | Class II | Class II |
| CRI L100: | >80 | >80 | >80 |
| IP rating: | IP20 | IP20 | IP20 |
| Dimension (mm): | 392*196*28 | 392*196*28 | 392*196*28 |
Lux Distance Curve:

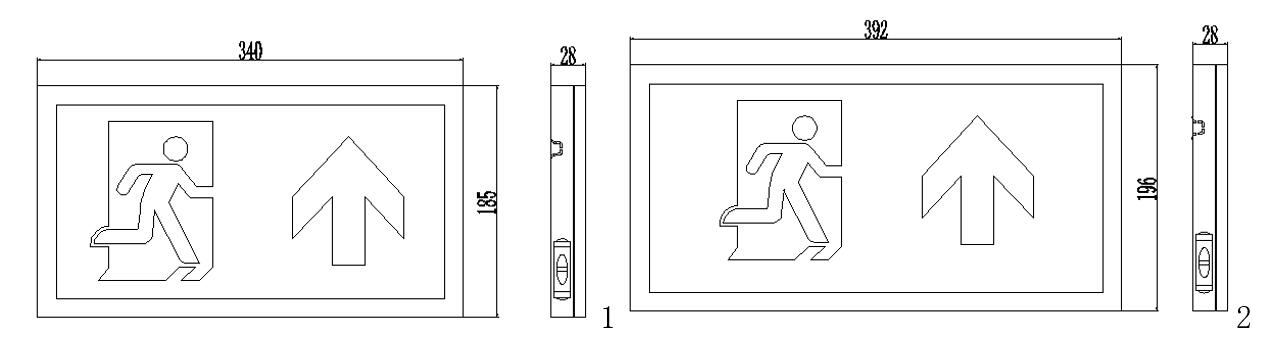

Size:
Light Distribution Curve:

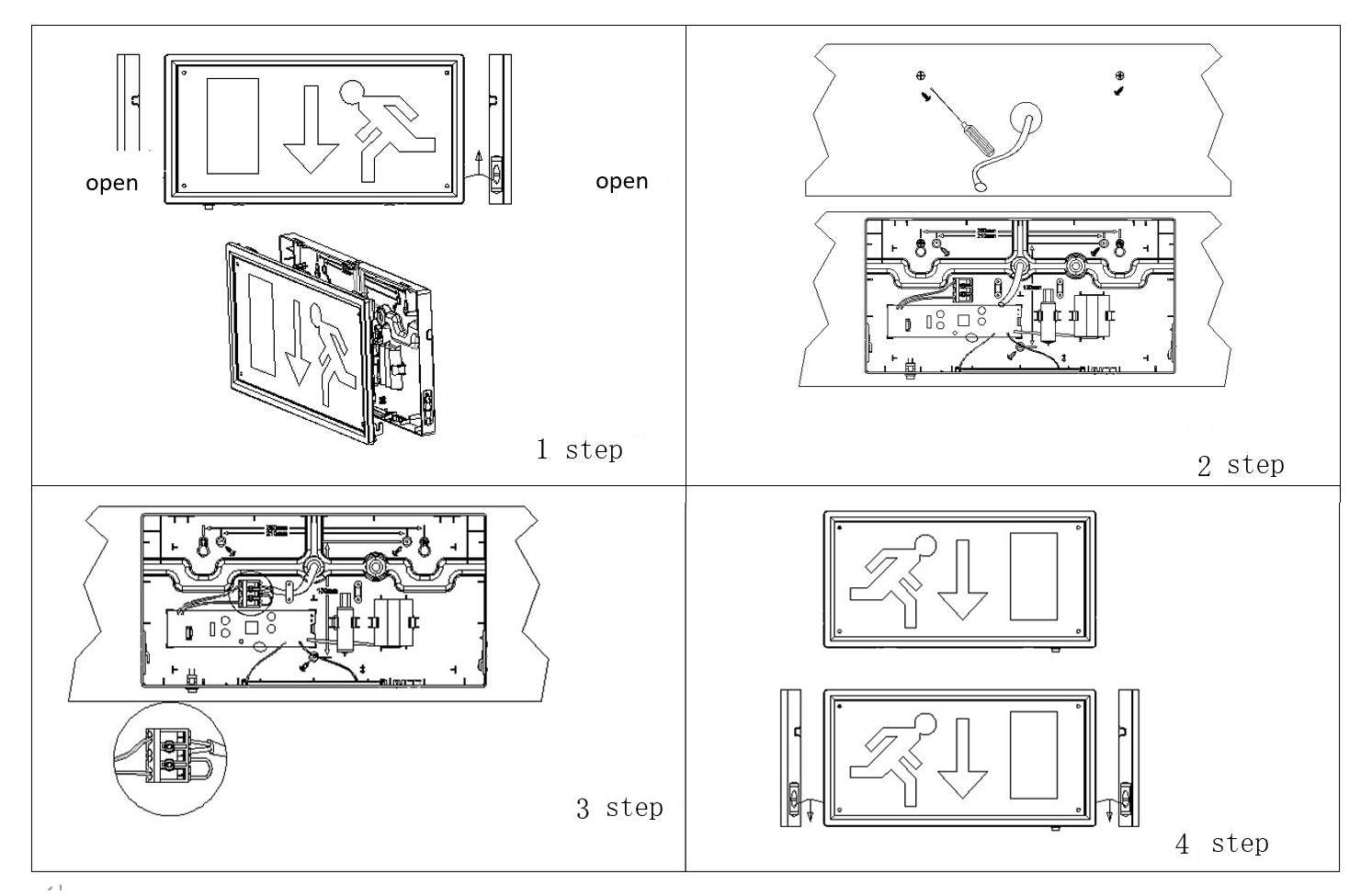

Installation:
