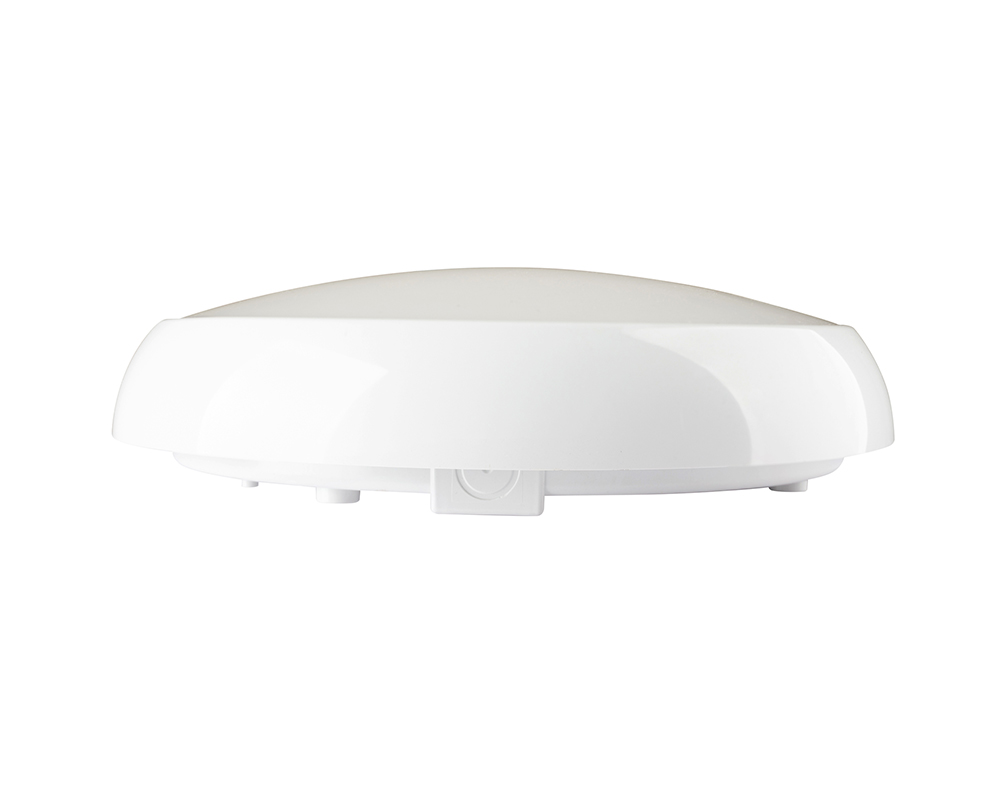

Polycarbonate base and diffuser with trim ring.

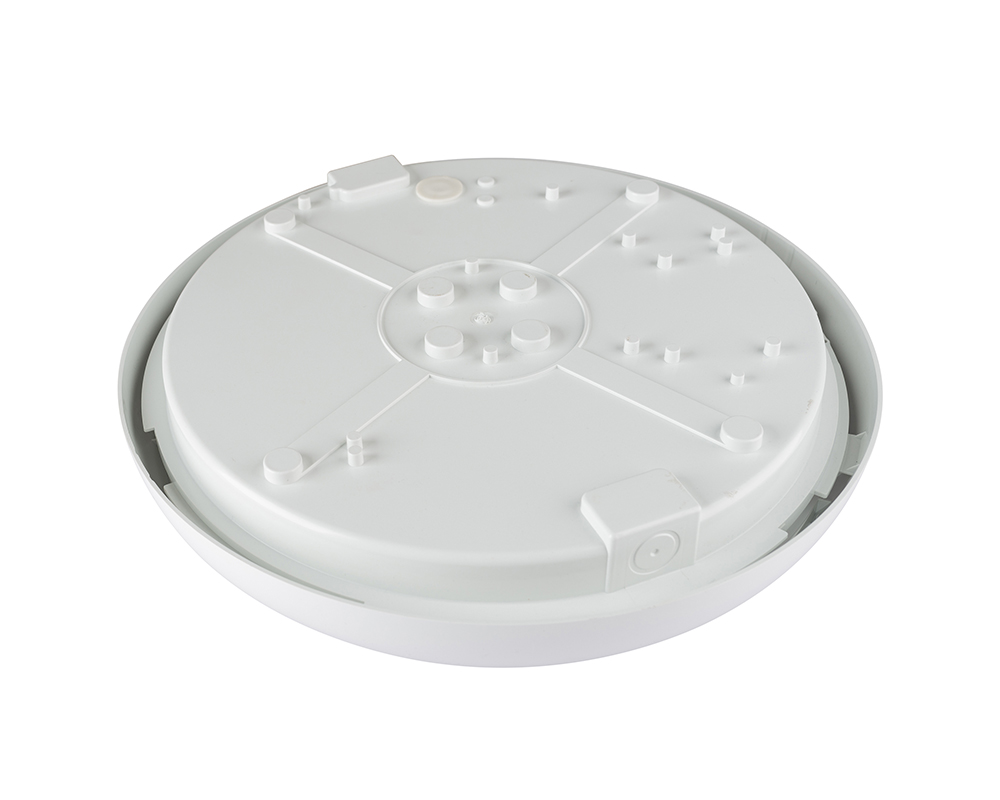

Unique fixing back plate for easy installation
Completed with base assembled to diffuser , for instant access to terminal block & fixing points for faster installation

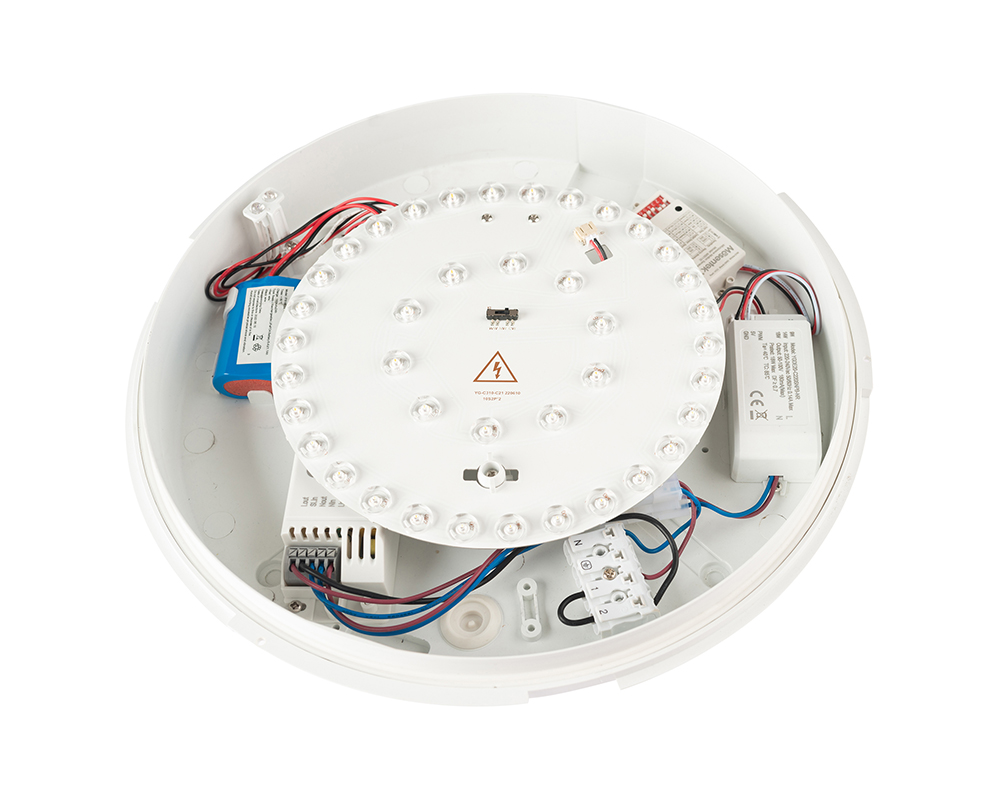

Multiple low power LED array & optically Optimised opal diffuser ensures a soft, even lighting effect
Piano key terminal block for easy installation & allows loop in / out wiring
3CCT with internal DIP switch, allows the installer to choose between 3000K，4000K and 6500K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For commercial interior use in corridors, stairs, toilets and changing rooms
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBT18C-1A-02P(CCT3/DIP) | YGBT24C-1A-02P(CCT3/DIP) |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 9W-14W-18W | 12W-18W-24W |
| LED | LED 2835 | LED 2835 |
| Efficiency: | 100LM /W | 100LM /W |
| CCT L100 (K): | 3000K-4000K-6500K(Selectable) | 3000K-4000K-6500K(Selectable) |
| Power factor(PF) | >0.7 | >0.7 |
| IP/IK | IP54/IK08 | IP54/IK08 |
| Lifetime | 50000hrs(L70B50) | 50000hrs(L70B50) |
| Size (mm): | 315*76MM | 315*76MM |
Light Distribution Curve:
Lux Distance Curve:

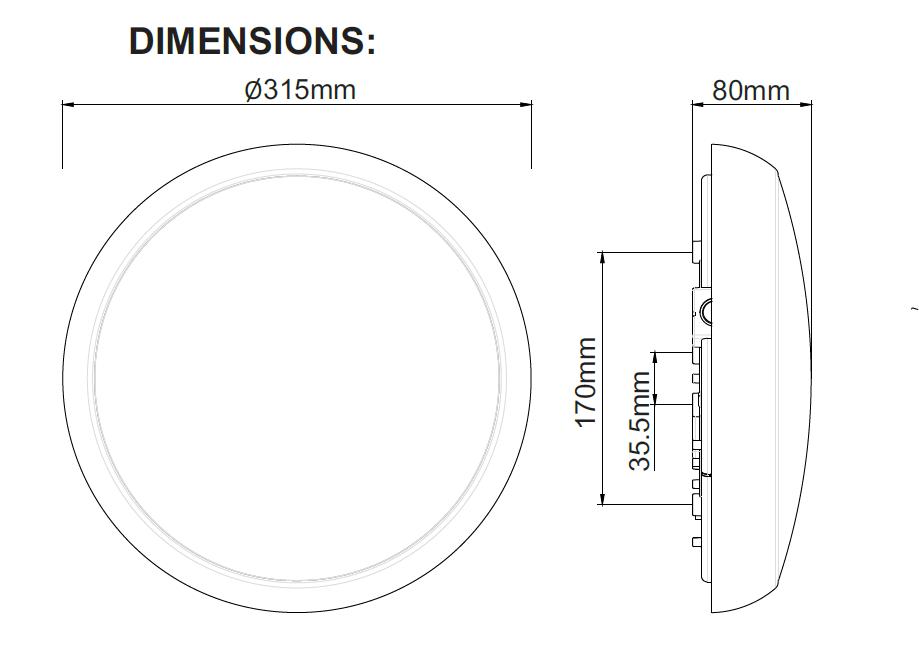

Size:
