- Polycarbonate Housing
- Short-circuit-proof battery connection
- Ambient Temperature: 0℃-55℃
- Open-circuit-proof
- Automatic shutdown of output if LED load is out of range
- Constant power output, output current self-adjustable
- Compatible with all dimmable and non-dimmable constant current LED driver
Suitable for Ceiling light & Non-corrosive light.This is range of LED Emergency Modules.Each variant has controlled current SELV compliant outputs,built-in adaptability that allows for optimum output current based on the forward voltage of the specific light engine for a more precise match to the controlled LED scheme.The range includes options for Self Testing.
--Self testing Version is available
Technical datas:
Model | YGEP4E 24-48V | YGEP4E 38-55V |
Input Voltage | 220-240V AC | 220-240V AC |
Power Consumption (W): | 2W Max | 2W Max |
Output Current(A): | 30-70mA | 20-50mA |
Power factor(PF) | >0.8 | >0.8 |
Protection Class | Class II | Class II |
Type | Insulation | Insulation |

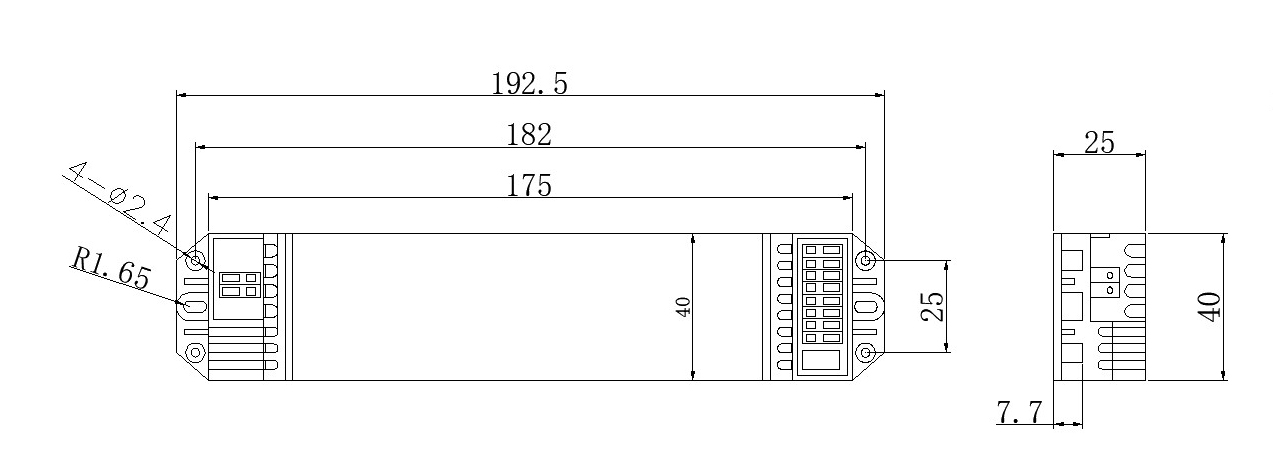

Size:
