- Polycarbonate Housing
- Short-circuit-proof battery connection
- Ambient Temperature: 0℃-55℃
- Open-circuit-proof
- Automatic shutdown of output if LED load is out of range
- Constant power output, output current self-adjustable
- Compatible with all dimmable and non-dimmable constant current LED driver
Suitable for Ceiling light & Non-corrosive light.This is range of LED Emergency Modules.Each variant has controlled current SELV compliant outputs,built-in adaptability that allows for optimum output current based on the forward voltage of the specific light engine for a more precise match to the controlled LED scheme.The range includes options for Self Testing. NI-CD and LiFePO4 battery is options. For Emergency Modules, it have 3 hrs Emergency Duration.
Self testing Version is available
Technical datas:
Model | YGEP4D-CY22-10EM | YGEP4D-NO16-10 | YGEP4D-WL-001 | YGEP4D-C016-10 |
Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
Power Consumption (W): | 15-32W | 8-22W | 20-70W | 15-32W |
Output Current(A): | 480-720mA | 300-700mA | 300-900mA | 480-720mA |
Power factor(PF) | >0.8 | >0.9 | >0.9 | >0.9 |
Protection Class | Class II | Class II | Class II | Class II |
Type | Insulation | Insulation | Non-Insulation | Insulation |

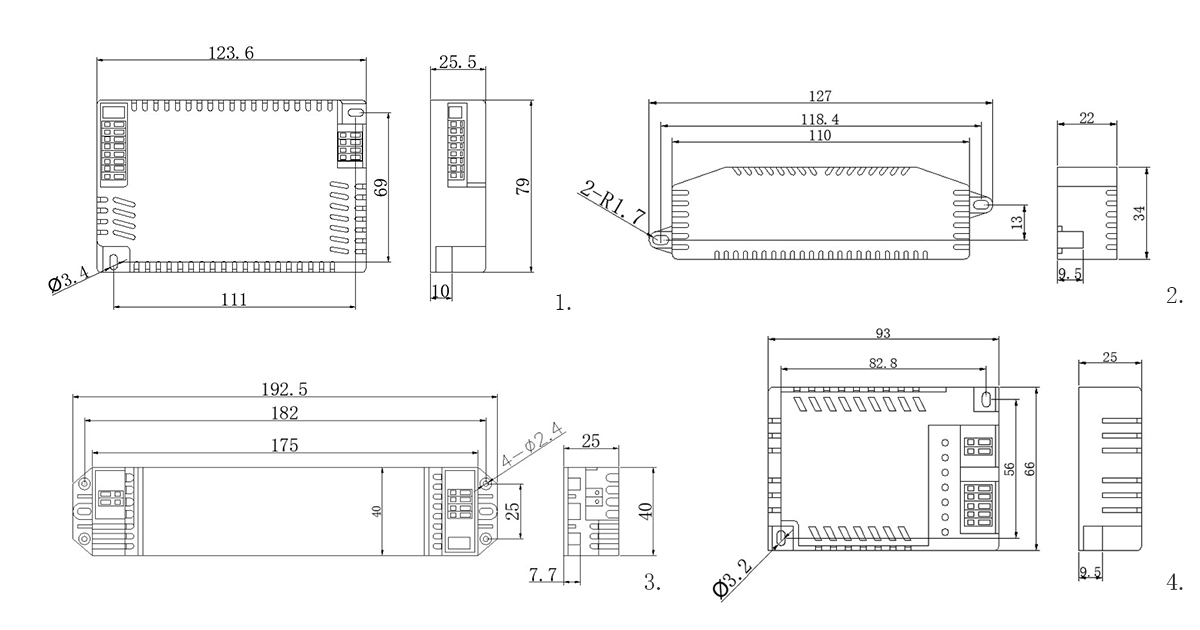

Dimension (mm): | 123.6*79*25.5 | 127*34*22 | 192.5*40*25 | 93*66*25 |
Size:
