- Polycarbonate base and cover
- Screwless cover, for instant access to terminal block & fixing points for faster installation
- Lithium (LiFePO4) and NI-CD battery cells (not suitable for use below 0℃)
- 3 hours operation on battery power after mains failure
- 20m maximum viewing distance with standard legends
- 30m maximum viewing distance with drop-down attachment
- Can be installed as maintained or non-maintained.
- Corridors
- Exits
- Escape routes
-Self testing Version is available
Technical datas:
| Model | YGBH1F-N | YGBH1F-L | YGBH1F-LMCU |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 2W | 2W | 2W |
| Light output L100 (lm): | 120 | 120 | 120 |
| CCT L100 (K): | 6500K | ||
| Power factor(PF) | <0.5 | <0.5 | <0.5 |
| Protection Class | CLASS II | CLASS II | CLASS II |
| CRI L100: | >80 | >80 | >80 |
| IK rating: | 08 | 08 | 08 |
| IP rating: | 40 | 40 | 40 |
| Dimension (mm): | 256*89*38 | 256*89*38 | 256*89*38 |
Light Distribution Curve:

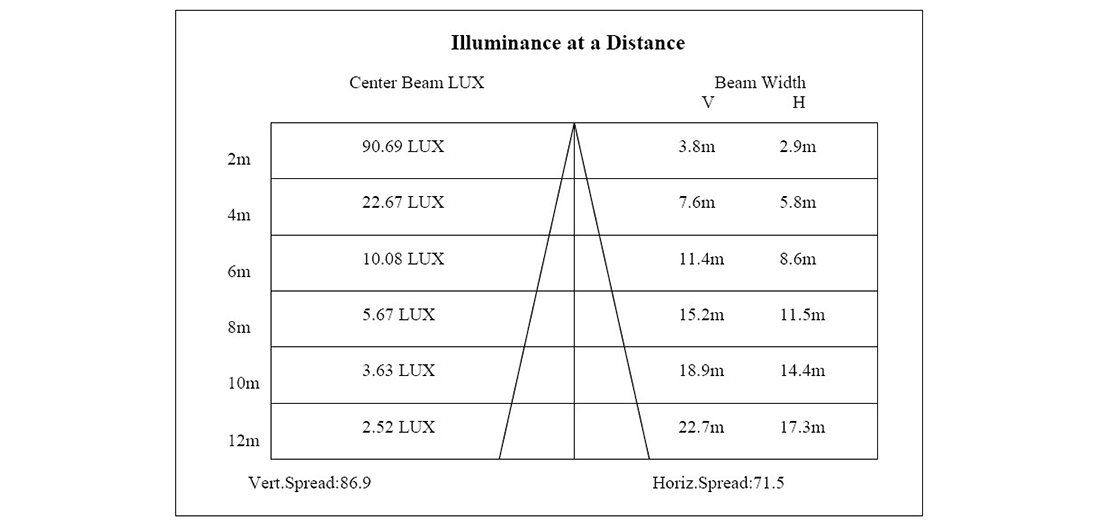

Lux Distance Curve:

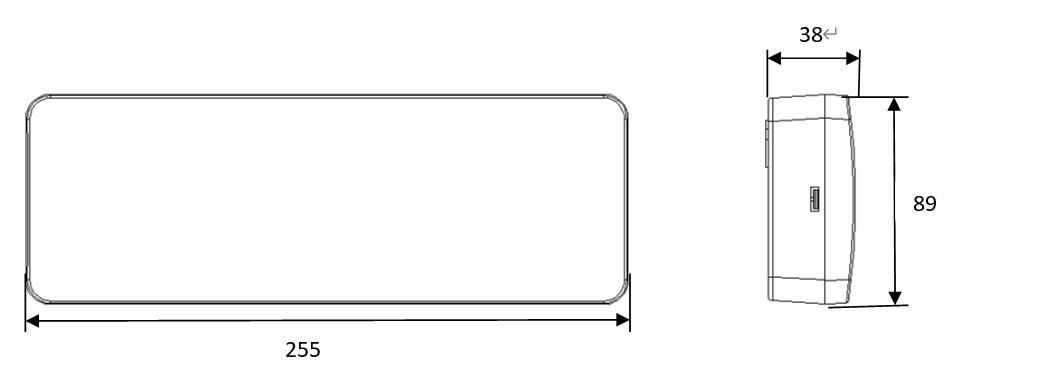

Size:

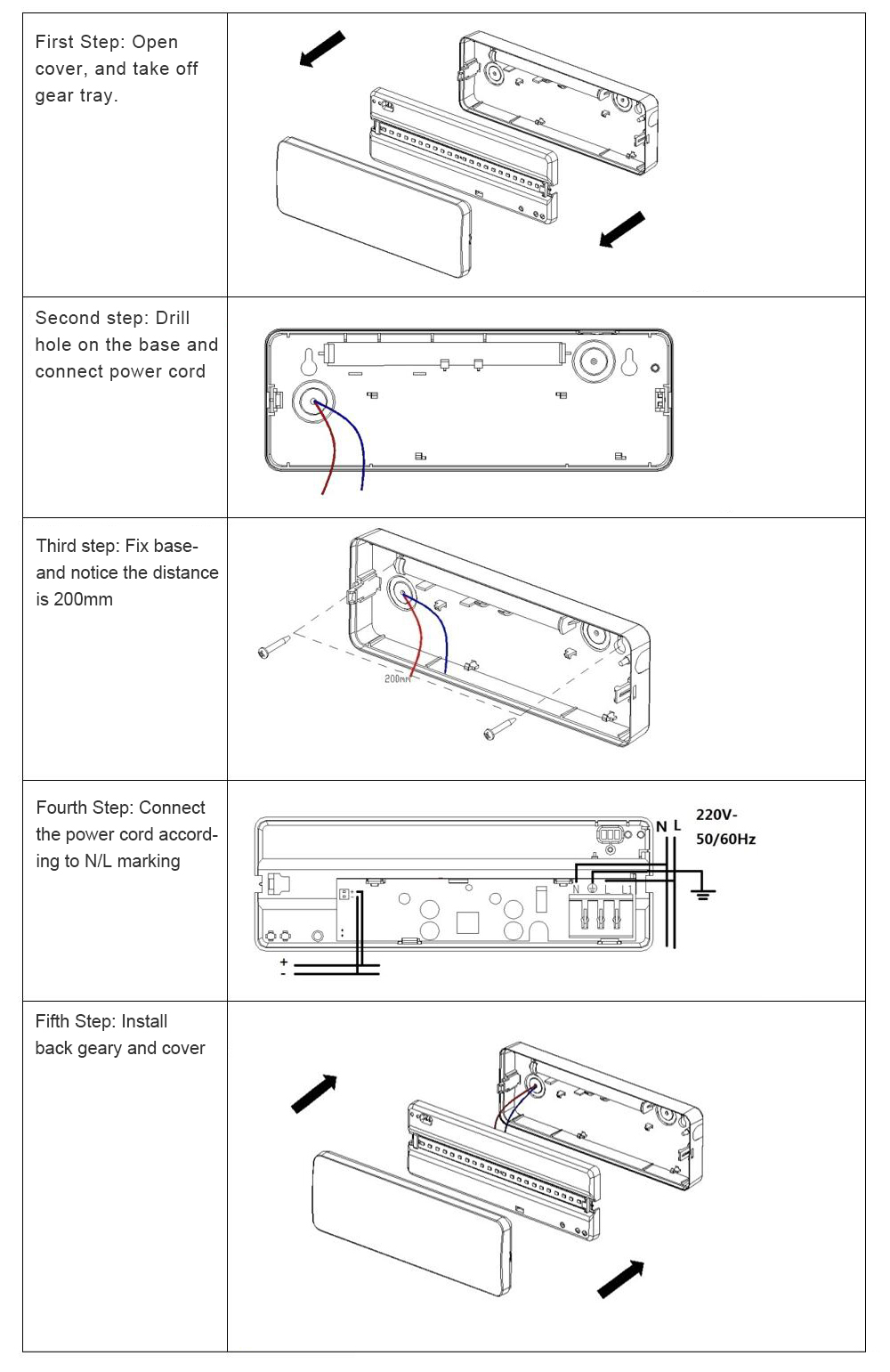

Installation:
