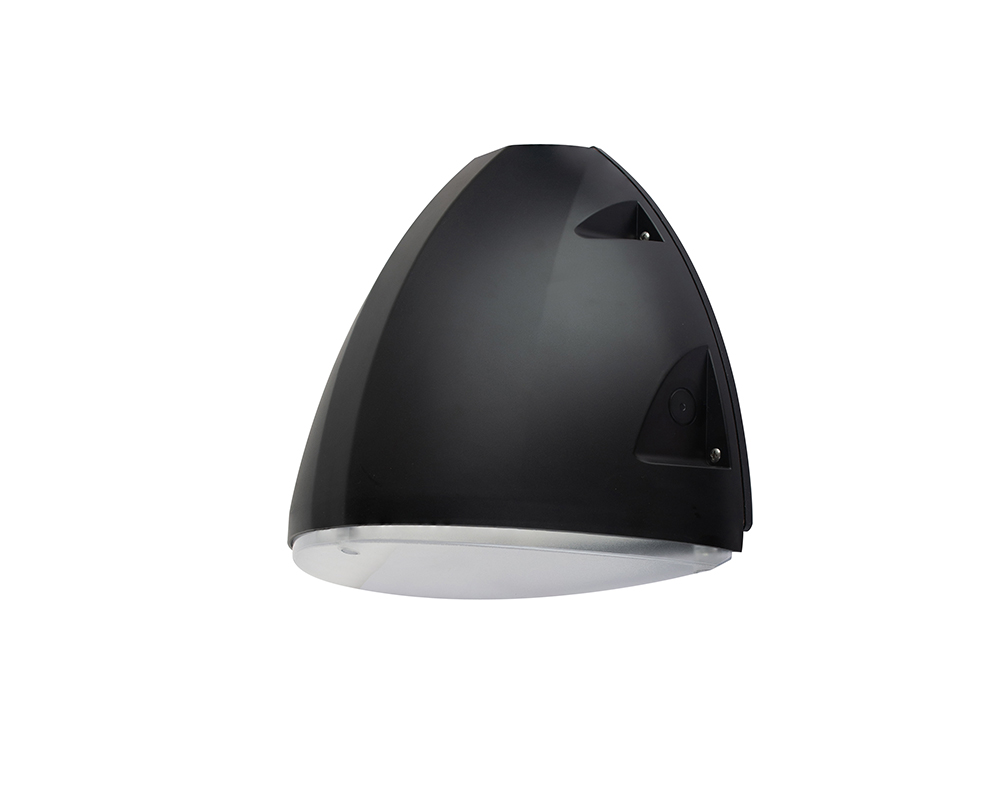

-- IP65 – IK10 Bulkhead
-- Polycarbonate opal diffuser and Base.

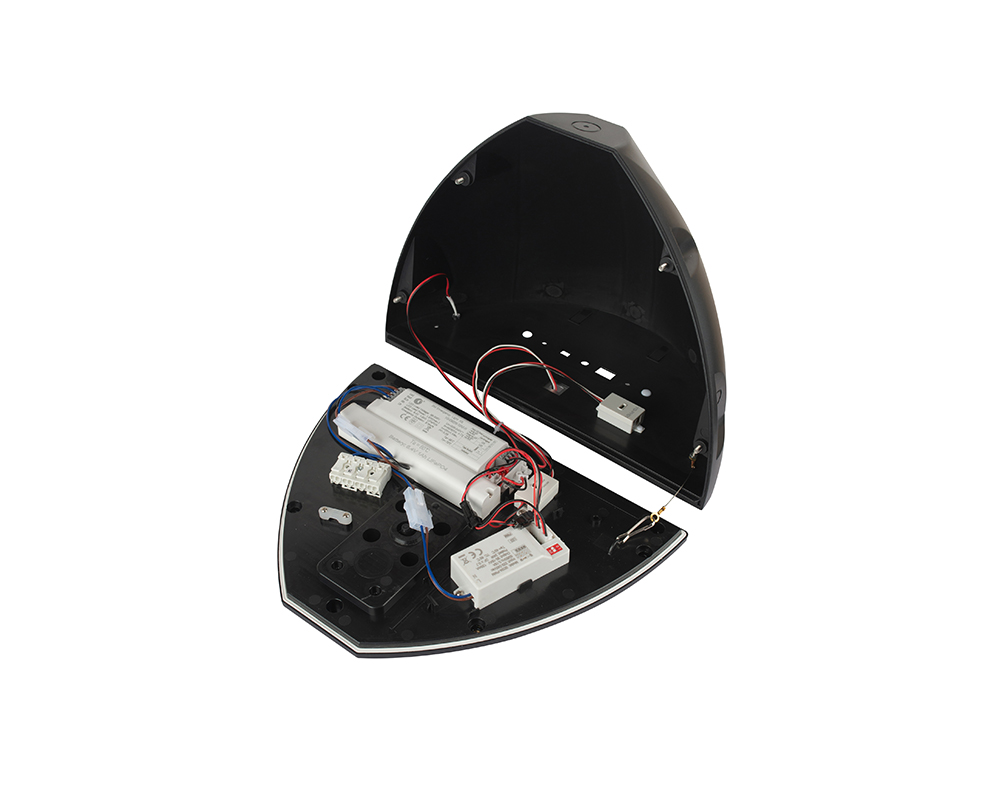

-- Piano-key terminal block with capacity for 3 x 1.5mm2 cable
for loop-in/loop-out.
-- Entry holes from 4 sides for easy wire connection,avoid re-wiring costs
-- Available with a full range of emergency, Microwave sensor options
-- Emergency maintained 3 hr versions available.
-- Multi- power options and Multi- color temperature options
-- 5Years warranty
Walkways, Stairways, Security Areas
MICROWAVE SENSOR, EMERGENCY version is available
| Codes | YGWL24-AS | YGWL24-PS | YGWL24-MS | YGWL24-EM | YGWL24-EMPS | YGWL24-EMMS |
| Input Voltage | AC220-240V 50/60Hz | |||||
| Power Consumption (W): | 24W/20W/16W/12W | 24W/20W/16W/12W+EM 2W | ||||
| DF | >0.7 | |||||
| Ripple current | <10% | |||||
| LED | 54S2P*2 2835 | |||||
| Light output L100 (lm): | 1800/2400/2900/3500LM±10％ | |||||
| CCT L100 (K): | 3000/4000/6500K±300K | |||||
| CRI L100: | >80 | |||||
| Efficacy (lm/W): | ＞130LM/W | ＞120LM/W | ||||
| Operate Levels | NA | 10~20Lx On (All types of light) 30~80Lx Off (natural light) | ADJ | NA | 10~20Lx On (All types of light) 30~80Lx Off (natural light) | ADJ |
| (LX) | ||||||
| L×W×H (mm): | 310×257×155 | |||||
| Codes | YGWL18-AS | YGWL18-PS | YGWL18-MS | YGWL18-EM | YGWL18-EMPS | YGWL18-EMMS |
| Input Voltage | AC220-240V 135mA | |||||
| Power Consumption (W): | 18W/15W/12W/9W | 18W/15W/12W/9W+EM 2W | ||||
| DF | >0.7 | |||||
| Ripple current | <10% | |||||
| LED | 41S2P*2 2835 | |||||
| Light output L100 (lm): | 1200/1600/2000/2400LM±10％ | |||||
| CCT L100 (K): | 3000/4000/6500K±300K | |||||
| CRI L100: | >80 | |||||
| Efficacy (lm/W): | ＞130LM/W | ＞120LM/W | ||||
| Operate Levels | NA | 10~20Lx On (All types of light) 30~80Lx Off (natural light) | ADJ | NA | 10~20Lx On (All types of light) 30~80Lx Off (natural light) | ADJ |
| (LX) | ||||||
| L×W×H (mm): | 275×228×140 | |||||
