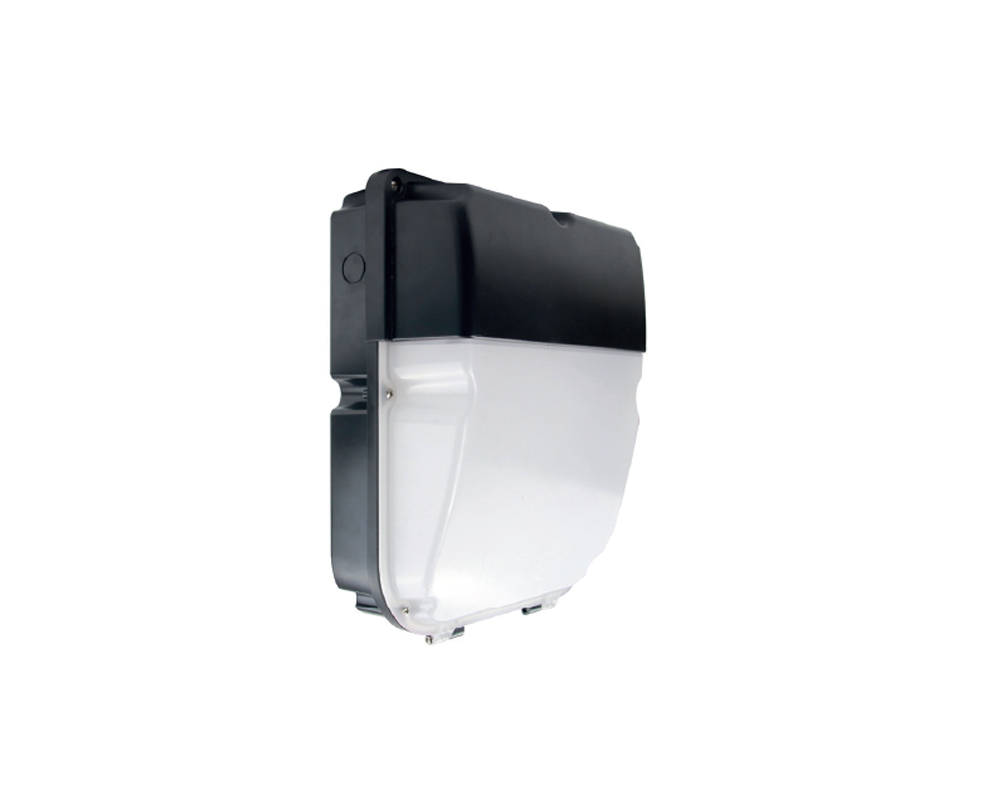

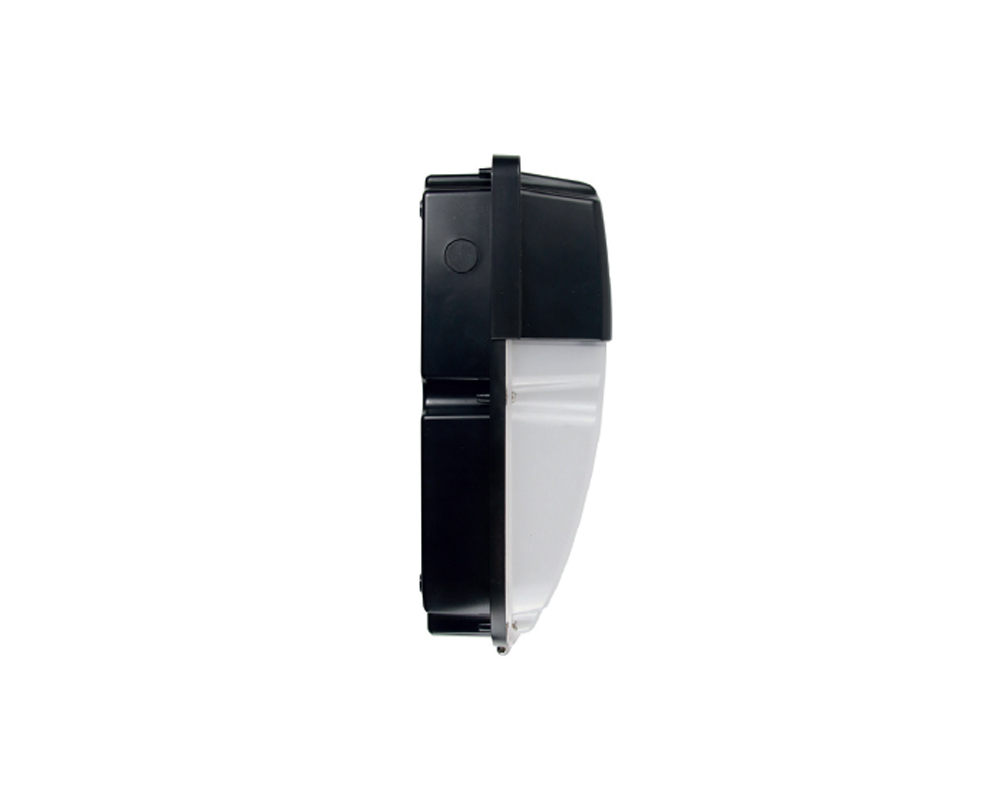

TEXAS

Description

-- IP65 – IK10 Bulkhead
-- Polycarbonate opal diffuser and Base.
-- Piano-key terminal block with capacity for 3 x 1.5mm2 cable
for loop-in/loop-out.
-- Entry holes from 4 sides for easy wire connection,avoid re-wiring costs
-- Available with a full range of emergency, Microwave sensor options
-- Emergency maintained 3 hr versions available.
-- Multi- power options and Multi- color temperature options
-- 5Years warranty

CodesYGWL30-ASYGWL30-PSYGWL30-MSYGWL30-EMYGWL30-EMPSYGWL30-EMMS
Input VoltageAC220-240V 50/60Hz
Power Consumption (W): 30W/26W/22W/18W 30W/26W/22W/18W +EM 2W
DF>0.7
Ripple current<10%
LEDSMD 2835
Light output L100 (lm):3000/2600/2200/1800LM±10%
CCT L100 (K):3000/4000/6500K±300K
CRI L100:>80
Efficacy (lm/W): 100LM/W
  Operate Levels     (LX)NA10~20Lx On (All types of light) 30~80Lx Off (natural light)ADJNA10~20Lx On (All types of light) 30~80Lx Off (natural light)ADJ
L×W×H (mm):306×265×110
