- Polycarbonate base and cover
- Short-circuit-proof battery connection
- Ambient Temperature: 0℃-55℃
- Open-circuit-proof
- Automatic shutdown of output if LED load is out of range
- Constant power output, output current self-adjustable
- Compatible with all dimmable and non-dimmable constant current LED driver
- Suitable for Batten lights/Waterproof lights/Panel lights.
-Plug-in M3 emergency conversion pack with Lithium Iron Phosphate (LiFePO4) battery.
This is range of LED Emergency Modules.Each variant has controlled current SELV compliant outputs,built-in adaptability that allows for optimum output current based on the forward voltage of the specific light engine for a more precise match to the controlled LED scheme. 3 hrs Emergency Duration.
-Self testing Version is available
Technical datas:
Model | YGEP4A | YGEP4A |
Input Voltage | 220-240V AC | 220-240V AC |
Output Voltage | 20-70Vdc(20-60mA) | 20-70Vdc(20-60mA) |
Power Consumption (W): | 2W | 2W |
Battery | LifePO4 6.4V*1.5Ah | LifePO4 6.4V*1.5Ah |
Protection Class | Class II | Class II |
CRI L100: | >70 | >70 |
IP rating: | IP40 | IP40 |
Dimension (mm): | 275*40*29 | 275*40*29 |

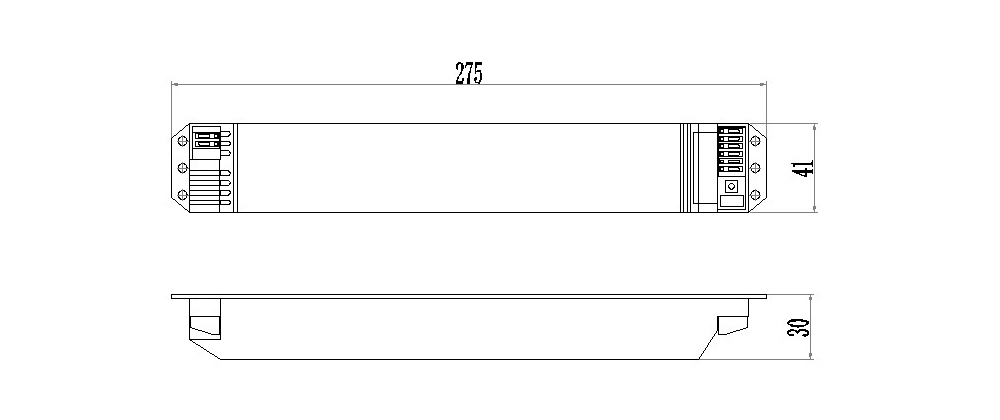

Size:

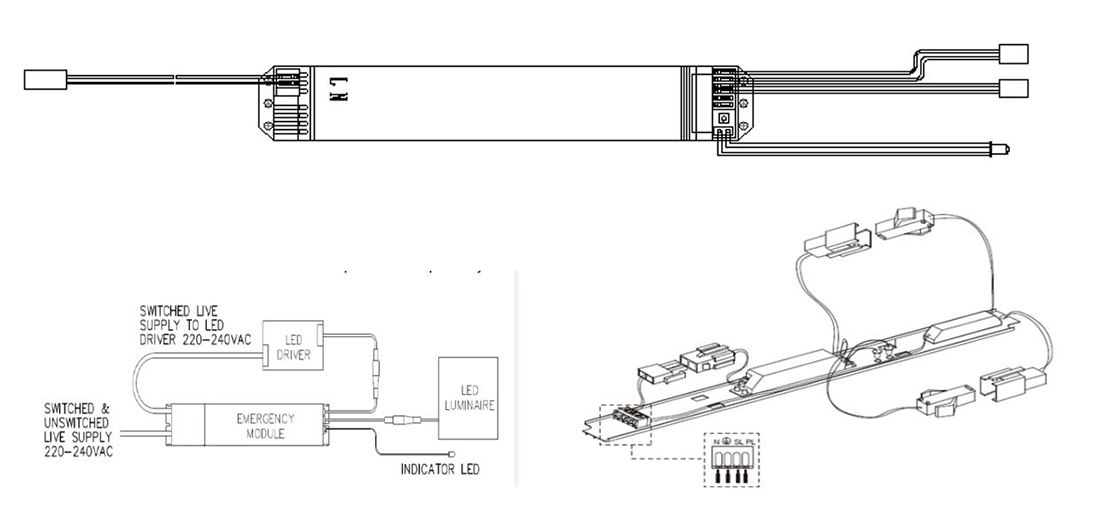

Installation:
