- Polycarbonate base and cover
- Cover fitted to base with stainless steel screws
- 20mm conduit entry - Lithium (LiFePO4) and NICD battery cells (not suitable for use below 0℃)
- 150/170 lm on mains 133 lm on battery supply –
- 3 hours operation on battery power after mains failure
- 20m maximum viewing distance with standard legends
- 30m maximum viewing distance with drop-down attachment
- Can be installed as maintained or non-maintained. Wiring diagrams are supplied in the instruction leaflet.
- Corridors
- Exits
- Escape routes
-Self testing Version is available
Technical datas:
Model | YGBH1B | YGBH1B(MCU) |
Input Voltage | 220-240V AC | 220-240V AC |
Power Consumption (W): | 3W | 5W |
Light output L100 (lm): | 150 | 170 |
CCT L100 (K): | 6500K | 6500K |
Power factor(PF) | <0.5 | <0.5 |
Protection Class | Class II | Class II |
CRI L100: | >80 | >80 |
IK rating: | 8 | 8 |
IP rating: | IP65 | IP65 |
Dimension (mm): | 264*128*63 | 264*128*63 |

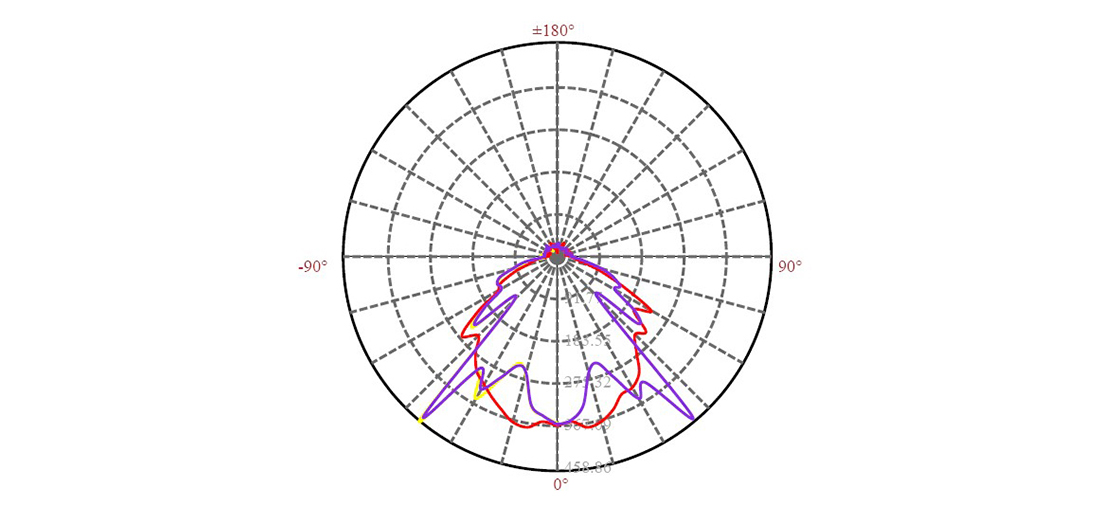

Light Distribution Curve:

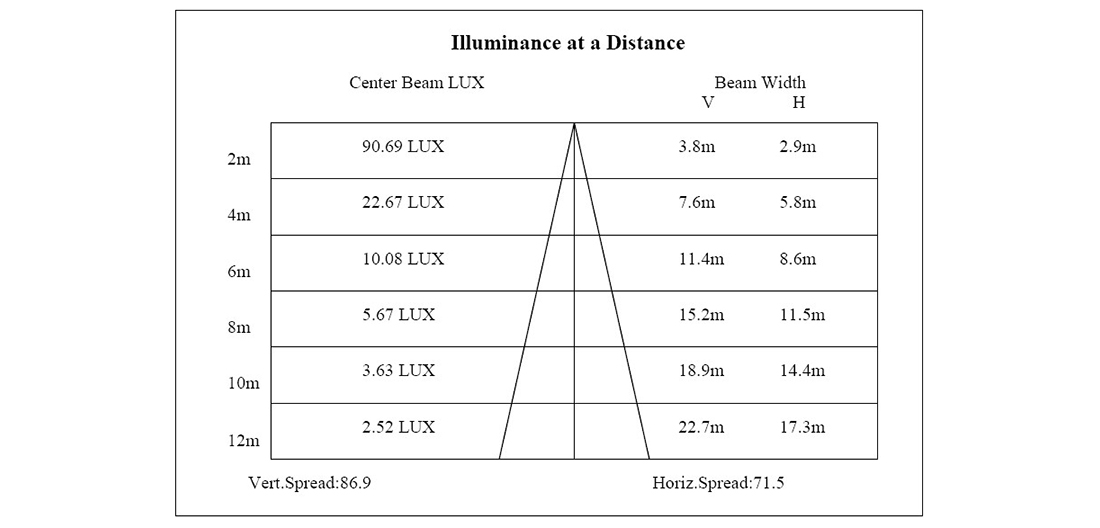

Lux Distance Curve:

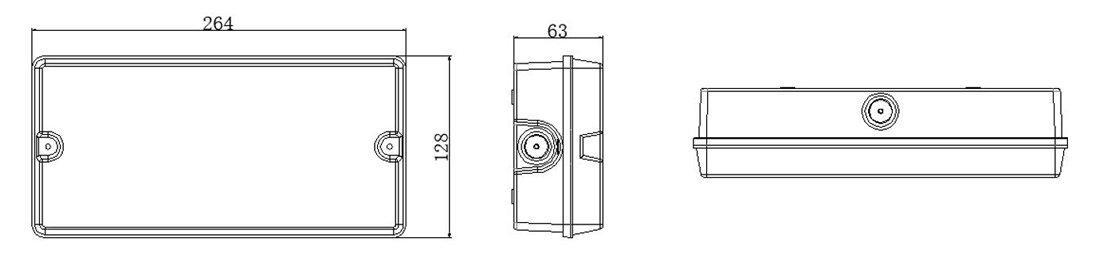

Size:

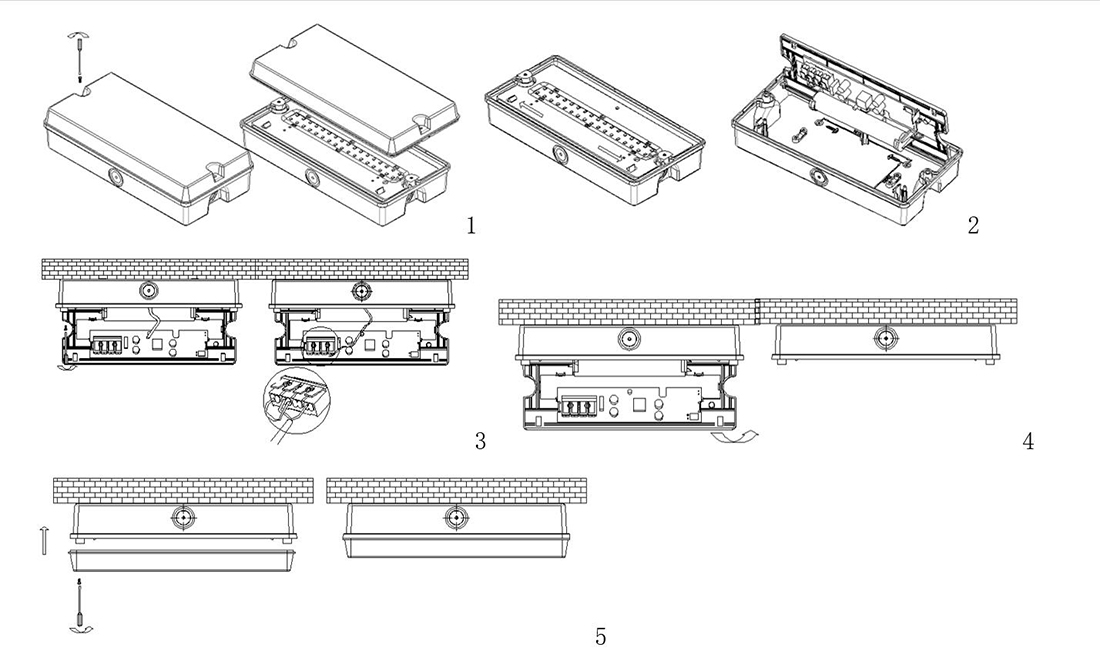

Installation:
