- Polycarbonate base and cover
- Screwless cover for instant access to terminal block & fixing points for faster installation
- Supplied with standard (“Man running towards door”) legend pack.
- 20mm conduit entry - Lithium (LiFePO4) and NICD battery cells (not suitable for use below 0℃)
- 3 hours operation on battery power after mains failure
- 20m maximum viewing distance with standard legends
- 30m maximum viewing distance with drop-down attachment
- Can be installed as maintained or non-maintained. Wiring diagrams are supplied in the instruction leaflet.
- Corridors
- Exits
- Escape routes
- Self testing Version is available
- RECESSED MOUNTING KIT Semi-recessed mounting kit available. Order as a separate item. LEGENDS Spare legend packs available. Alternative legend pack available as listed - to be ordered as a separate item.
Technical datas:
| Model | YGBH1G-N | YGBH1G-L | YGBH1G-LMCU |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 2W | 2W | 2W |
| Light output L100 (lm): | 120 | 120 | 120 |
| CCT L100 (K): | 6500K | ||
| Power factor(PF) | >0.4 | >0.4 | >0.4 |
| Protection Class | CLASS II | CLASS II | CLASS II |
| CRI L100: | >80 | >80 | >80 |
| IK rating: | 08 | 08 | 08 |
| IP rating: | 40 | 40 | 40 |
| Dimension (mm): | 261.5*113.7*42.3 | 261.5*113.7*42.3 | 261.5*113.7*42.3 |

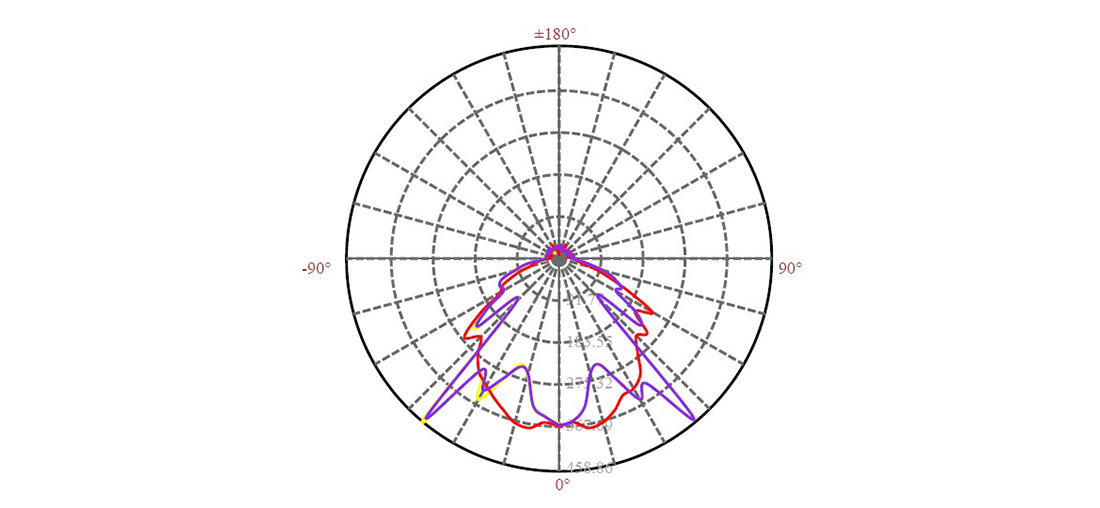

Light Distribution Curve:

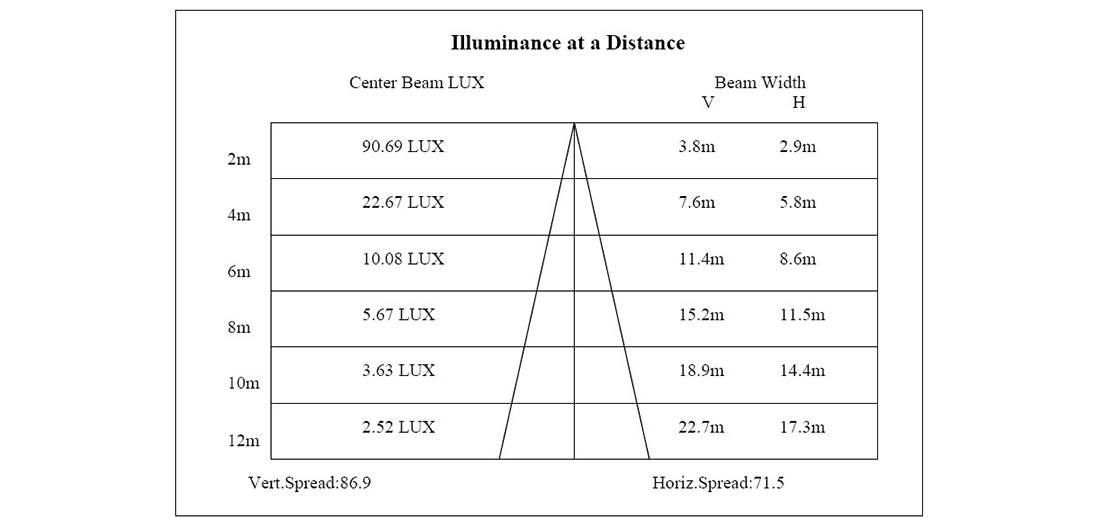

Lux Distance Curve:

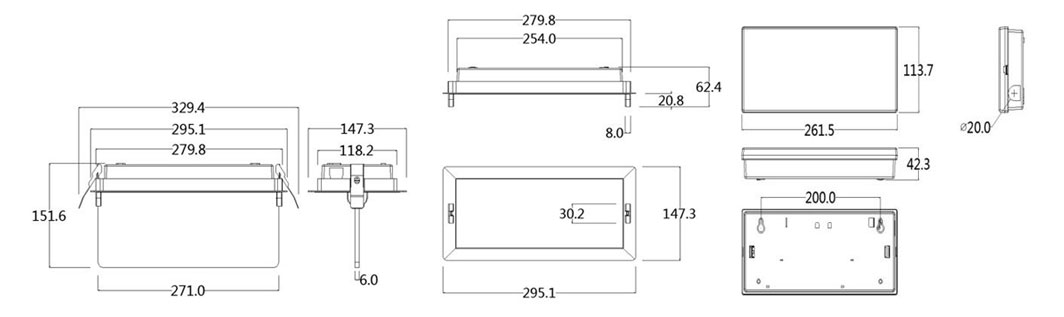

Size:

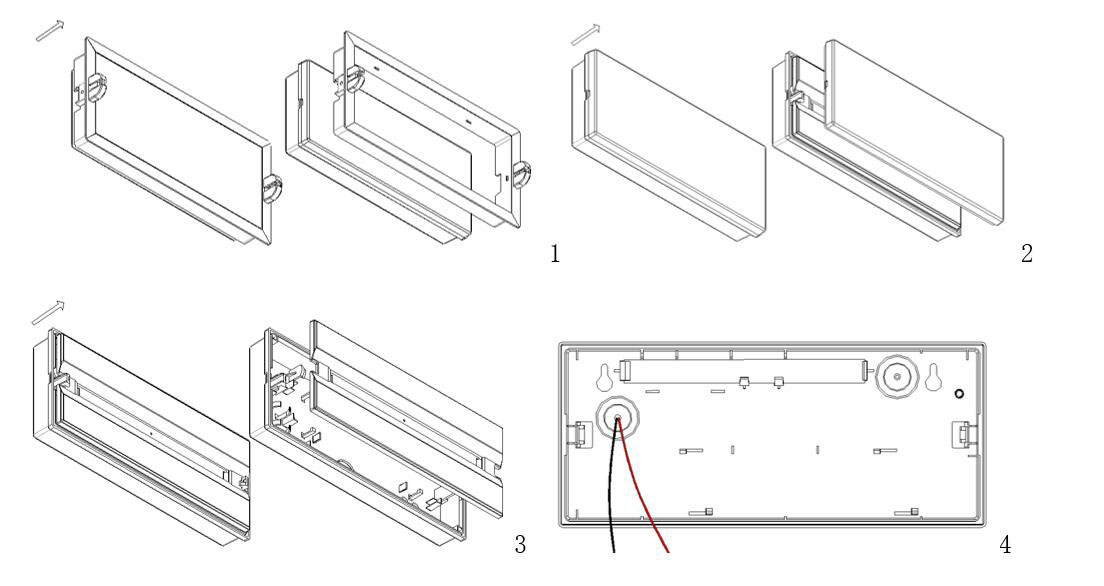

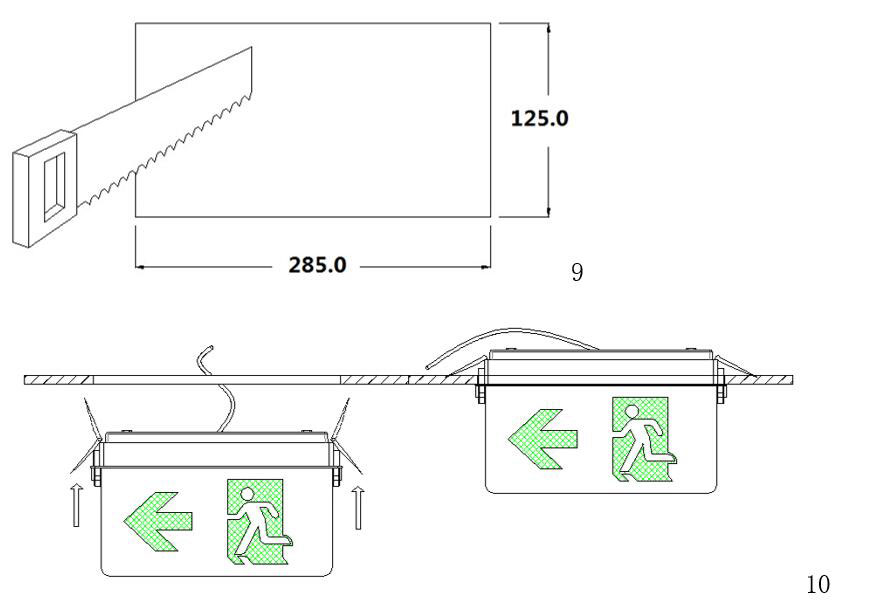

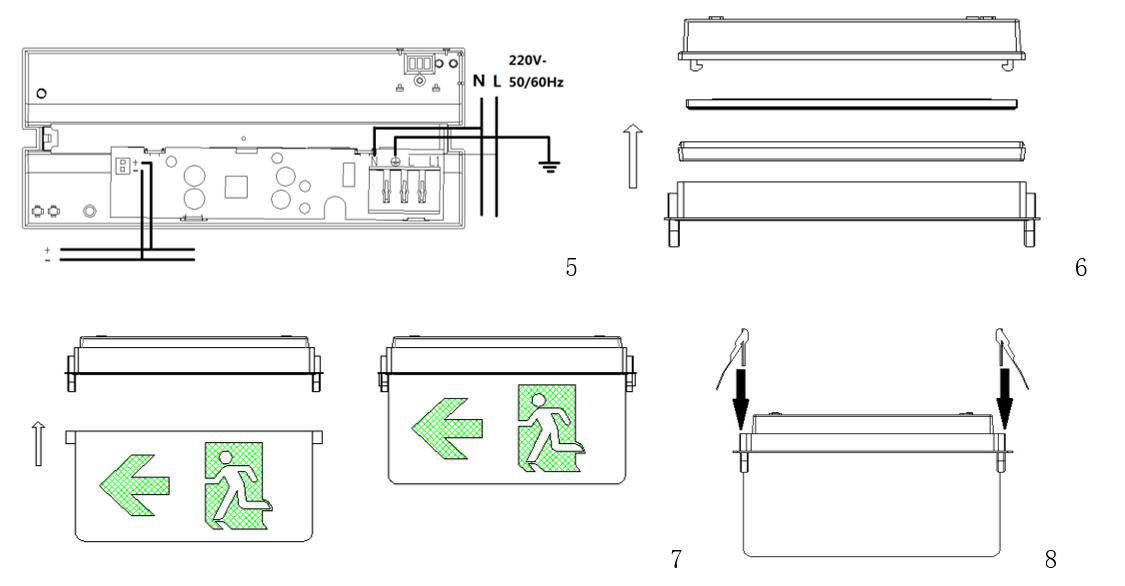

Installation:
