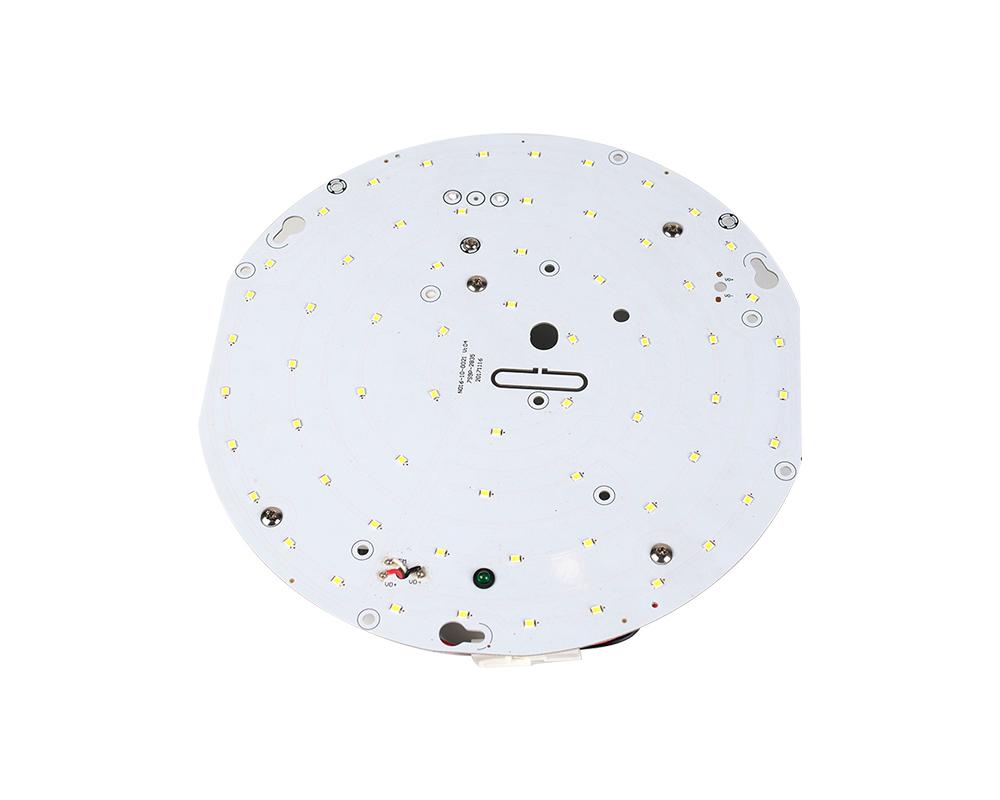

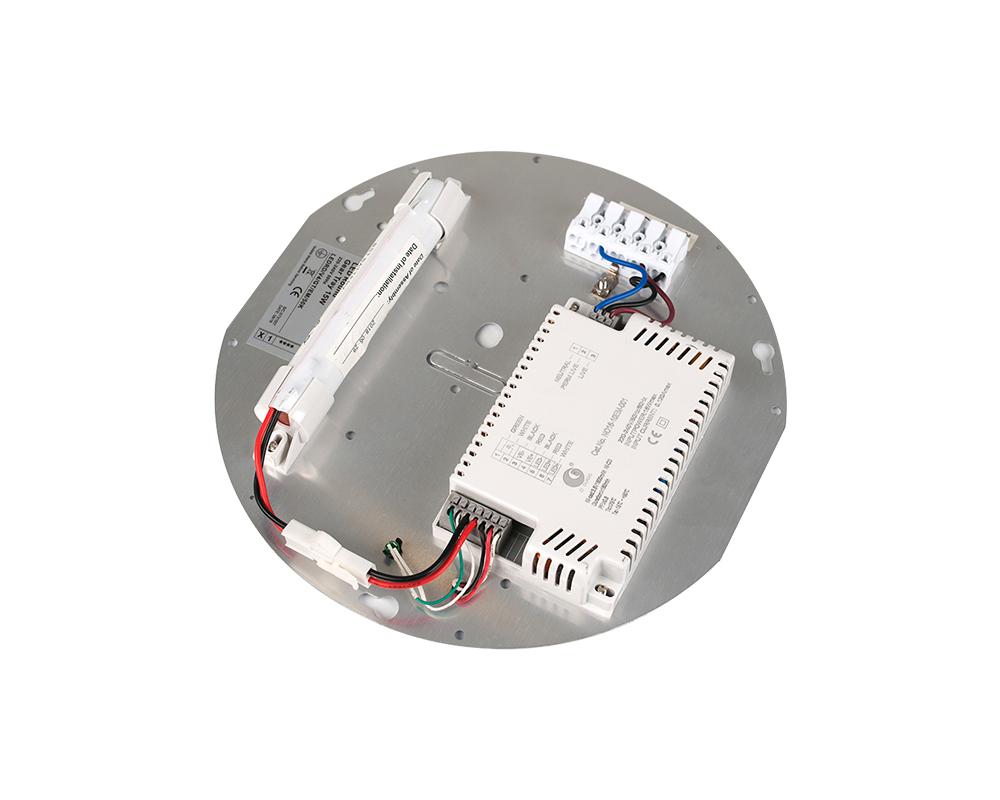

LED Gear tray, replacement to 28/38W 2D fittings
Fits many existing bulkheads
Efficacy: >120lm/w
3 CCT available, selectable by DIP switch (3000K/4000K/5000K)
ENEC approved LED driver
Emergency, Dimming and Microwave Sensor for option
LED lifespan L70 50,000 hours
For use in commercial interior & exterior bulkheads
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8I | |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 14W | 18W |
| Light output L100 (lm): | 1700±7％ | 2200±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |
| Power factor(PF) | >0.9 | >0.9 |
| Protection Class | Class I | Class I |
| CRI L100: | >80 | >80 |
| Efficacy (lm/W): | >90 | >90 |
| Operating Temp | -10°C to 25°C | -10°C to 25°C |
| Dimension (mm): | ɸ244*234 | ɸ244*234 |

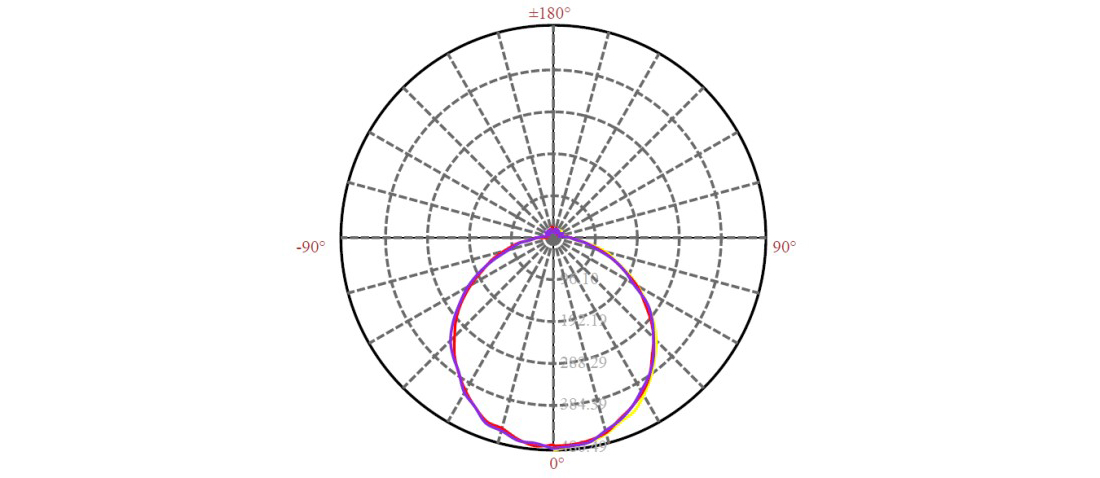

Light Distribution Curve:

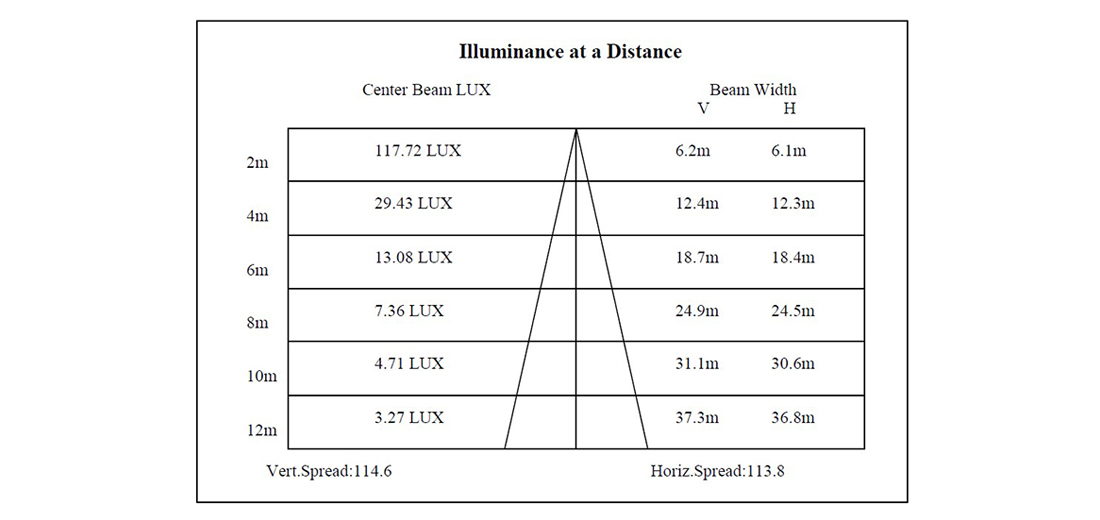

Lux Distance Curve:

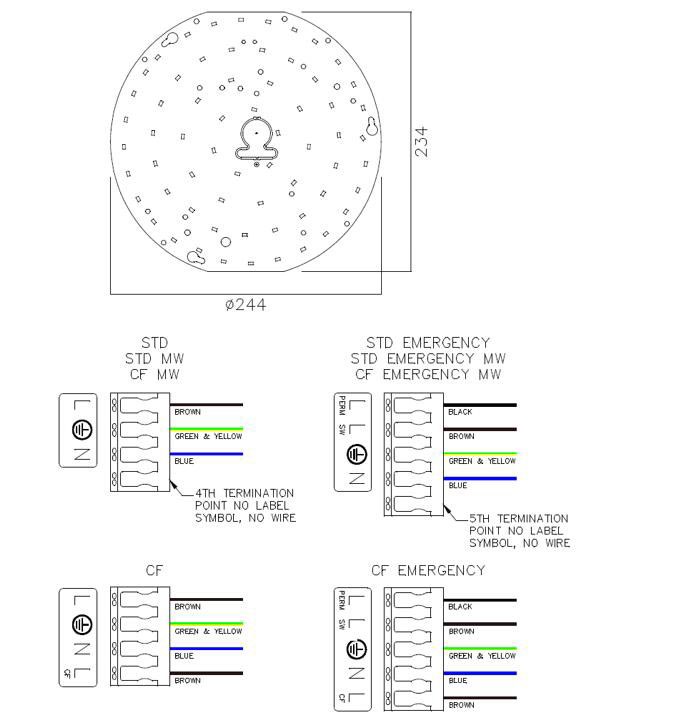

Size:
Installation:
