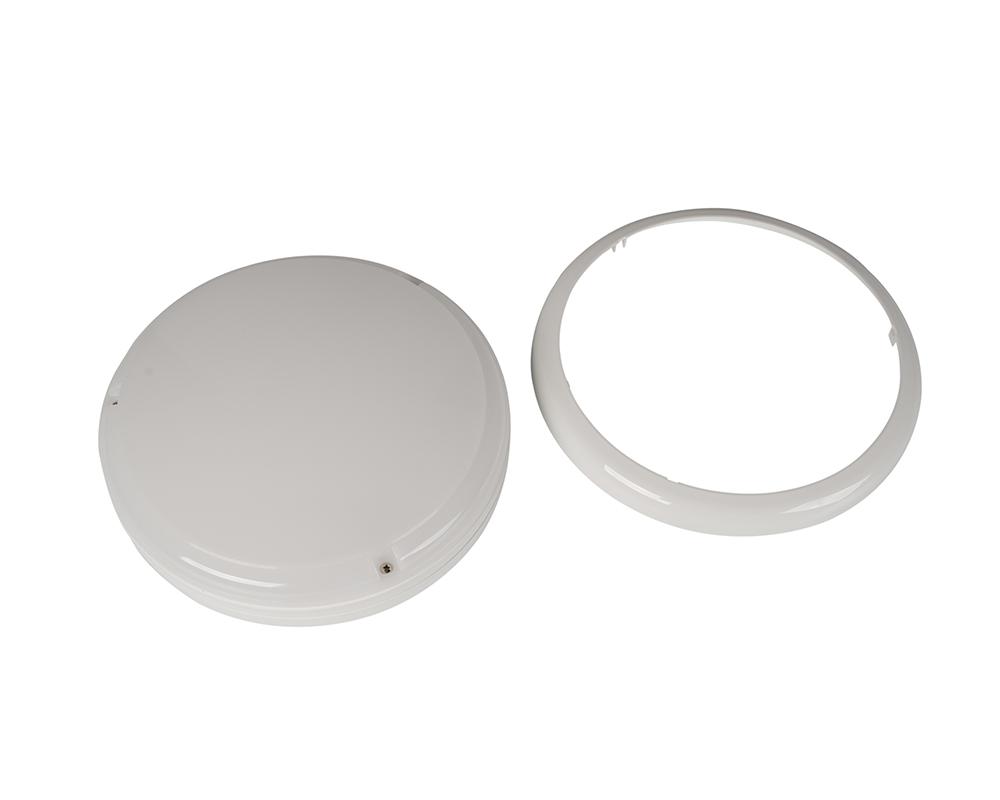

Polycarbonate base and diffuser with trim ring.

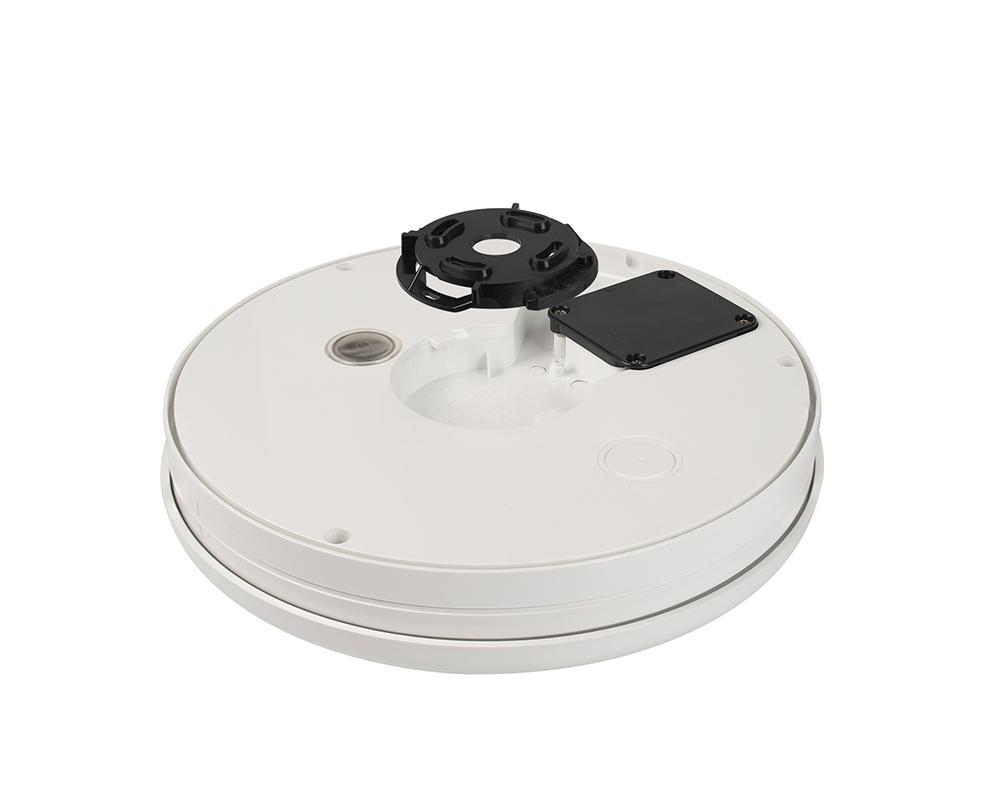

Unique fixing back plate for easy installation
Completed with base assembled to diffuser , for instant access to terminal block & fixing points for faster installation
Multiple low power LED array & optically Optimised opal diffuser ensures a soft, even lighting effect
14W exceeds performance of 38W TC-DD.
Piano key terminal block for easy installation & allows loop in / out wiring
3CCT with internal DIP switch, allows the installer to choose between 3000K，4000K and 5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For commercial interior use in corridors, stairs, toilets and changing rooms
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8E | |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 14W | 18W |
| Light output L100 (lm): | 1300±7％ | 1700±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |
| Power factor(PF) | >0.9 | >0.9 |
| Protection Class | Class I | Class I |
| CRI L100: | >80 | >80 |
| Efficacy (lm/W): | >90 | >90 |
| Operating Temp | -10°C to 40°C | -10°C to 40°C |
| IP rating: | IP54 | IP54 |
| IK rating: | IK08 | IK08 |
| Dimension (mm): | ɸ286*65 | ɸ286*65 |

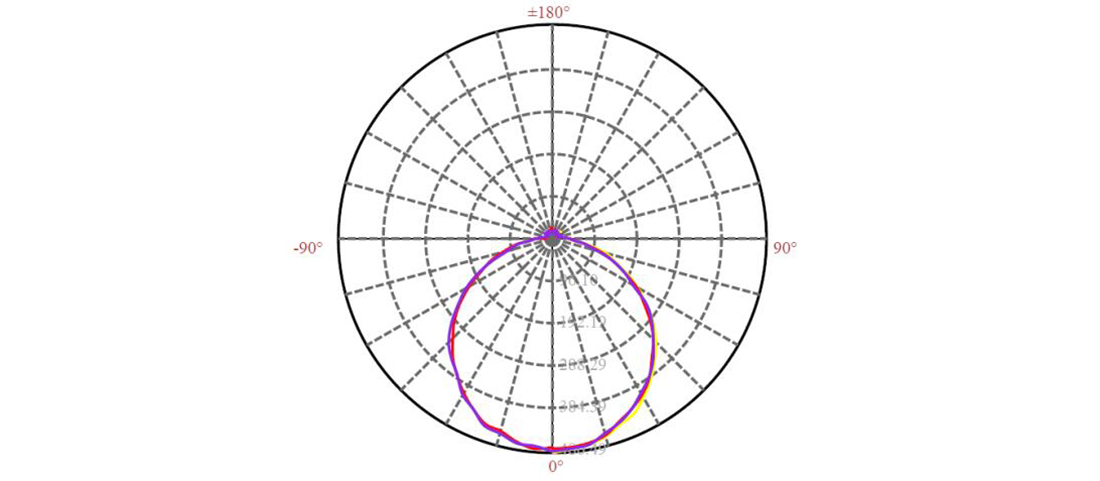

Light Distribution Curve:

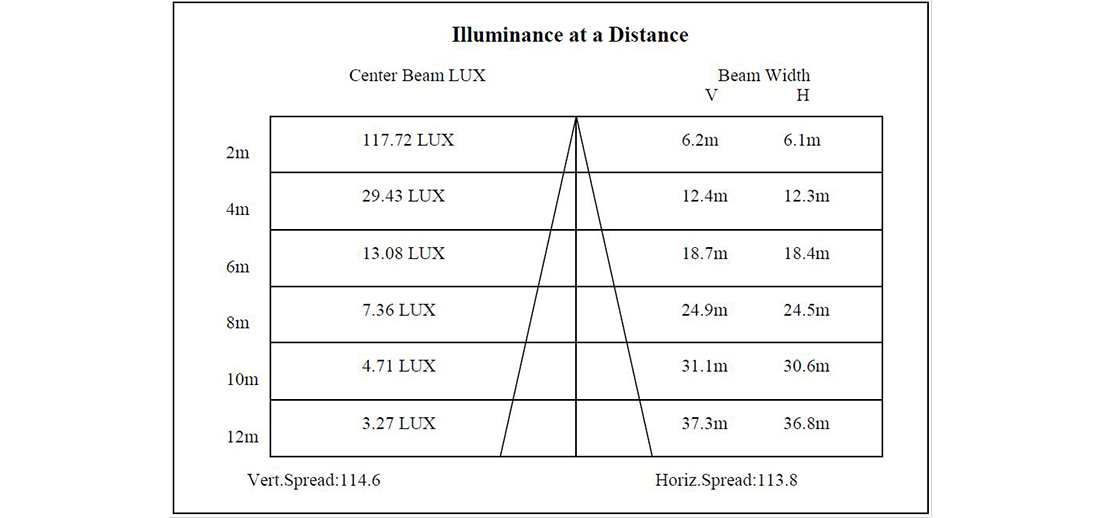

Lux Distance Curve:

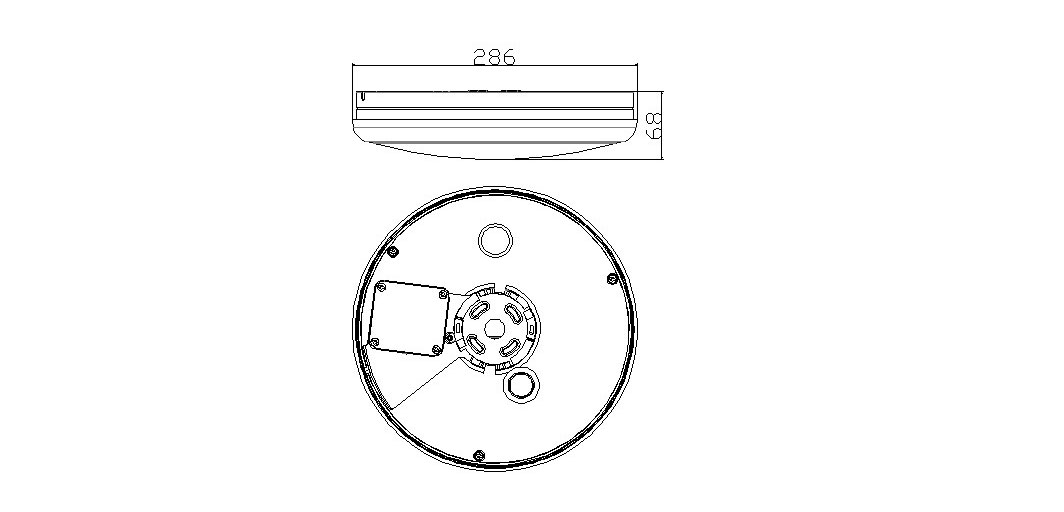

Size:

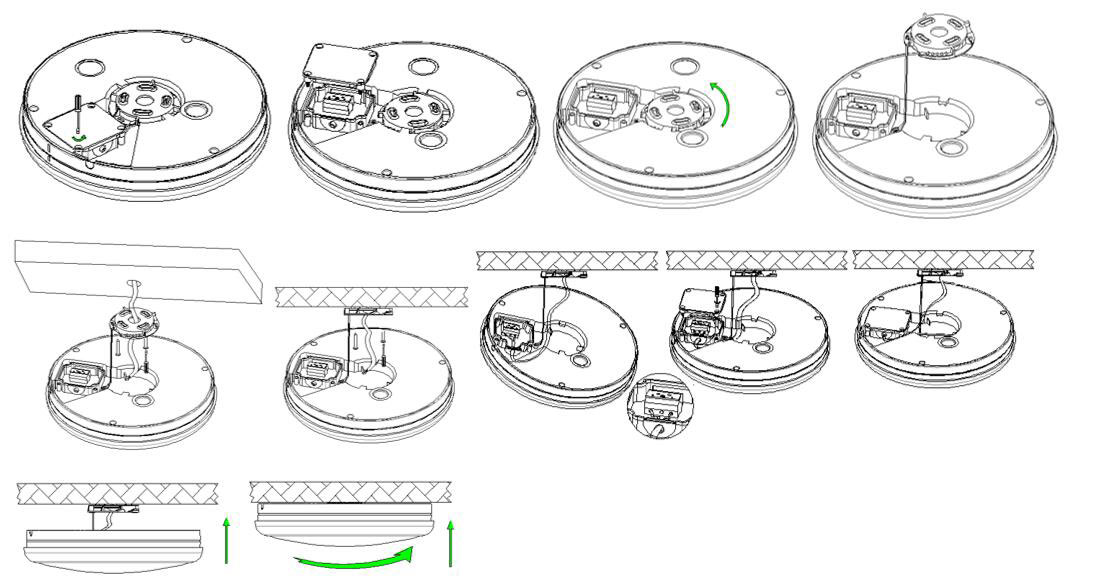

Installation:
