Polycarbonate construction with opal diffuser
Base allows side conduit entry

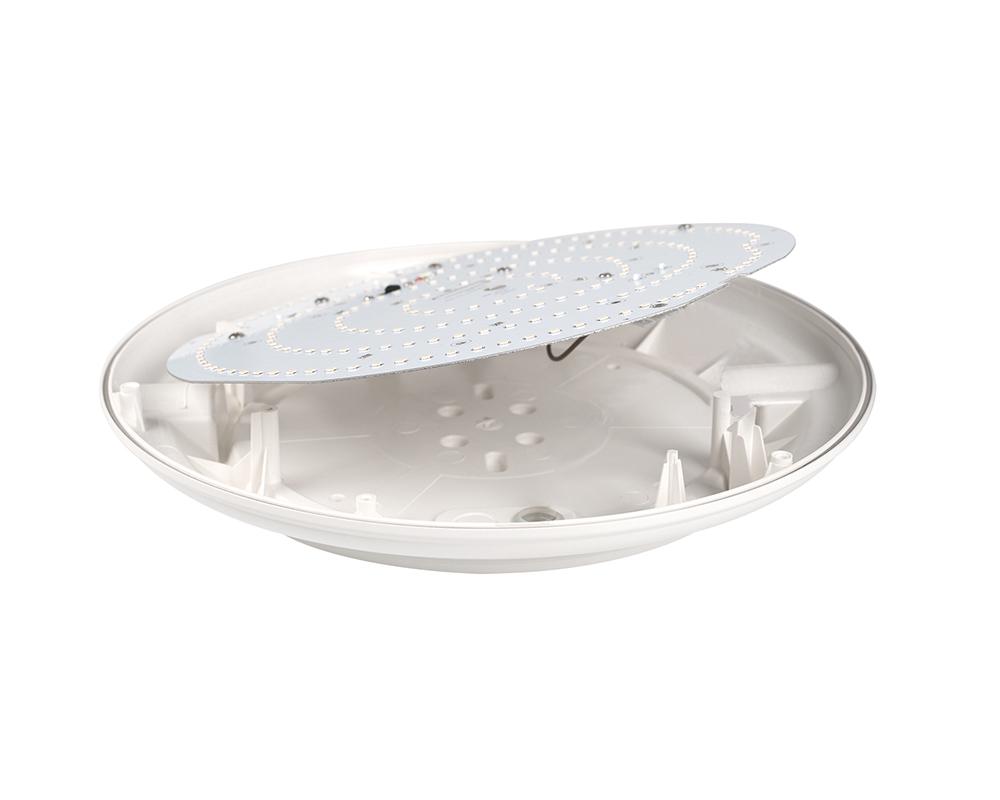

Gear tray retained on strap for easy installation
Piano key terminal block for easy installation & allows loop in / out wiring
3 CCT selectable with internal DIP switch,3000K/4000K/5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For general lighting applications in office, supermarket, shop, school, hotel. As well as public areas, such as stairway, lobby, reception, corridors etc.
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8F | |
| Input Voltage | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 21W | 32W |
| Light output L100 (lm): | 1700±7％ | 2750±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | |
| Power factor(PF) | >0.9 | >0.9 |
| Protection Class | Class I | Class I |
| CRI L100: | >80 | >80 |
| Efficacy (lm/W): | >80 | >90 |
| Operating Temp | -10°C to 25°C | -10°C to 25°C |
| IP rating: | IP54 | IP54 |
| IK rating: | IK08 | IK08 |
| Dimension (mm): | ɸ360*110 | ɸ430*110 |

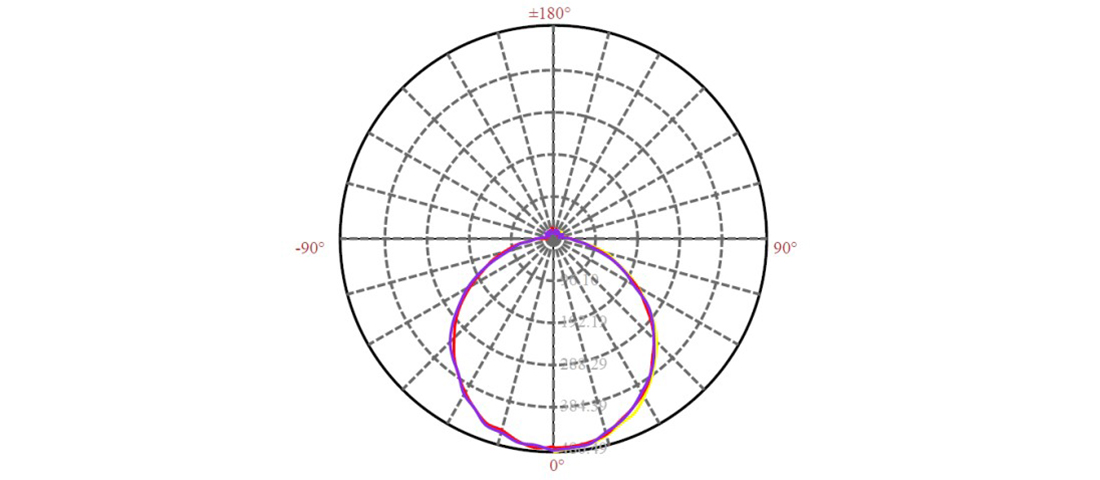

Light Distribution Curve:

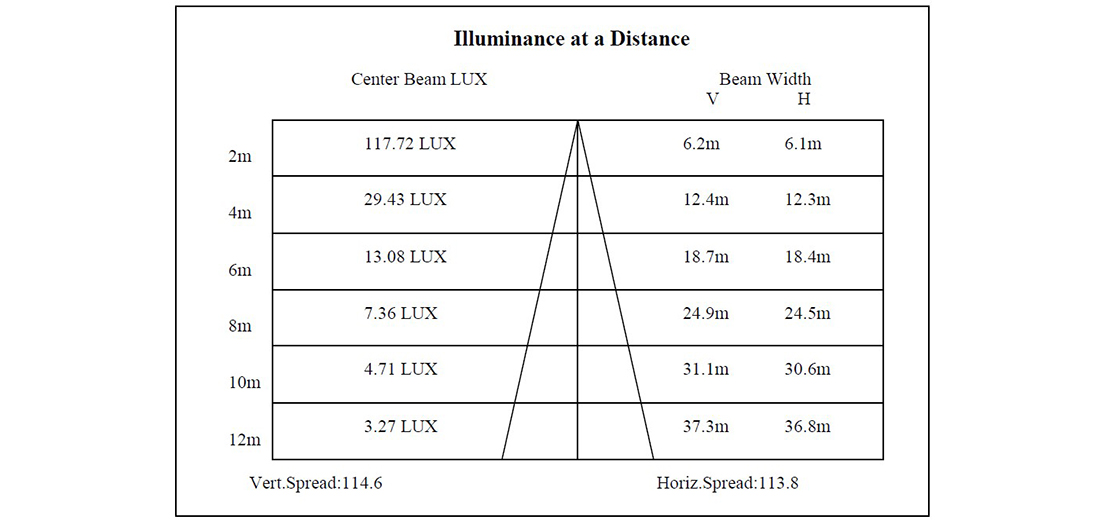

Lux Distance Curve:

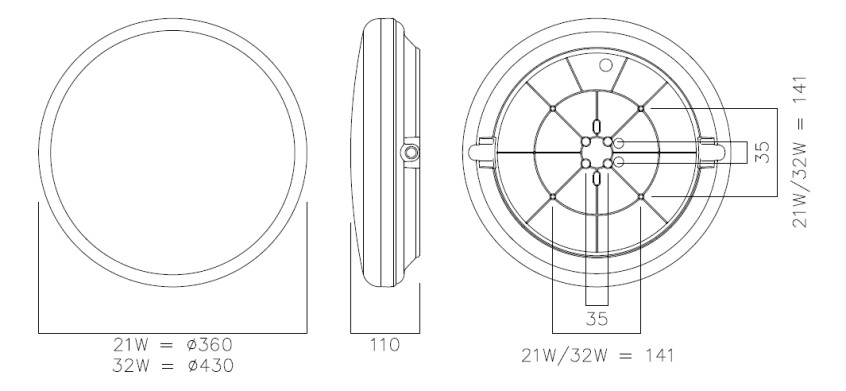

Size:

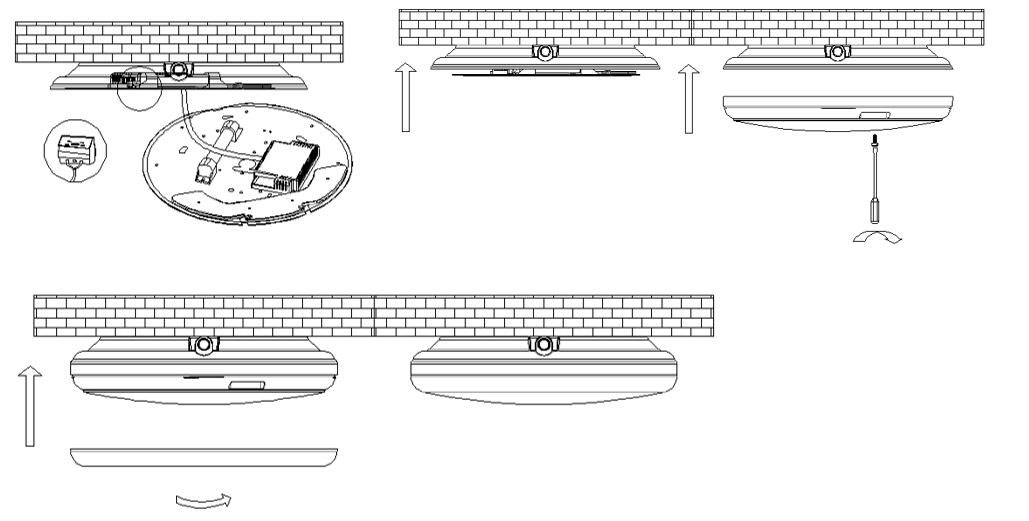

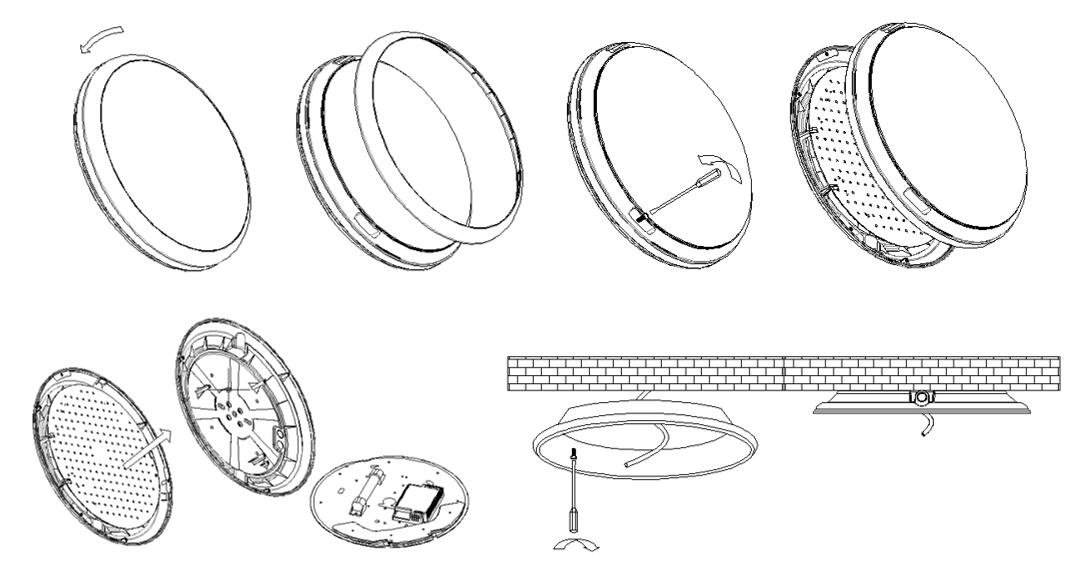

Installation:
