Polycarbonate construction
High efficiency diffuser ensures a soft, even lighting effect with no degradation of light output
Visually similar, energy efficient alternative to 28/38W 2D fittings. Up to 70% energy saving compared to standard CFL
Piano key terminal block for easy installation & allows loop in / loop out wiring
3CCT selectable with Internal DIP selector switch 3000K/4000K /5000K
ENEC approved LED driver
LED lifespan L70 50,000 hours
For use in retail, public buildings, communal areas, sports centres, stairwells, corridors, walkways.
Emergency, microwave sensor, Corridor function available
Technical datas:
Model | YGBH2A |
Input Voltage | 220-240V AC |
Power Consumption (W): | 14W |
Light output L100 (lm): | 1350±7% |
CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) |
Power factor(PF) | >0.9 |
Protection Class | Class I |
CRI L100: | >80 |
Efficacy (lm/W): | >95 |
Operating Temp | -10°C to 25°C |
IP rating: | IP65 |
IK rating: | IK08 |
Dimension (mm): | ɸ283*80 |

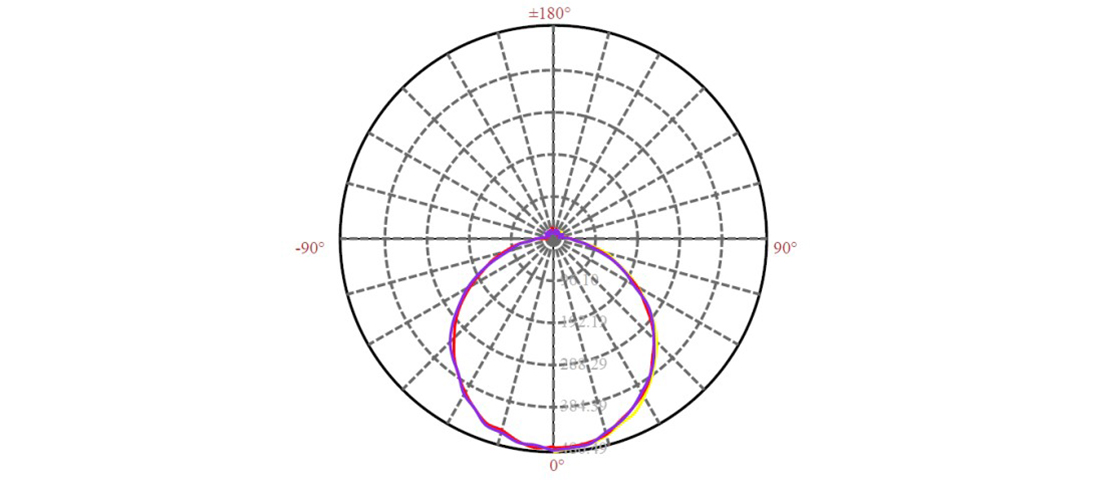

Light Distribution Curve:

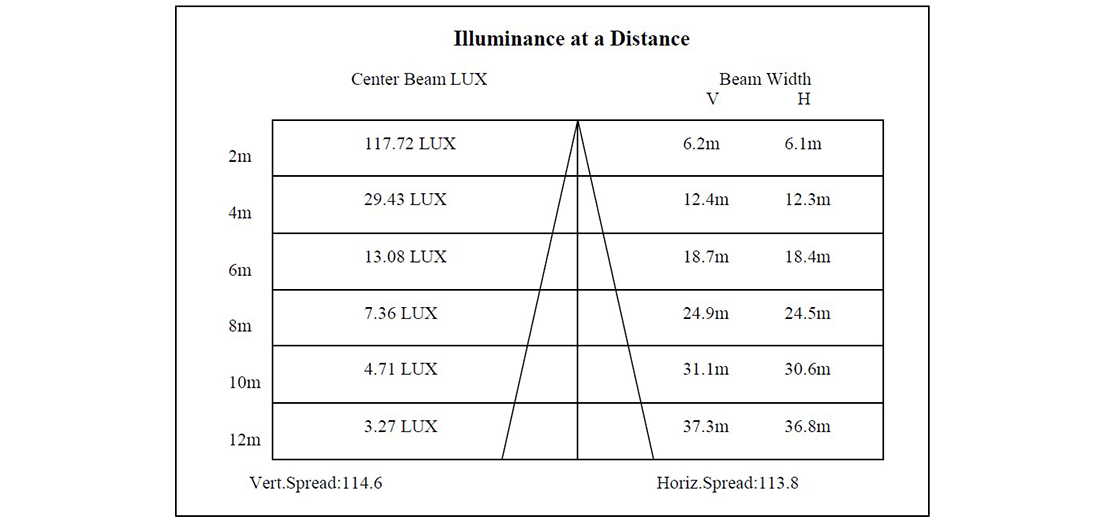

Lux Distance Curve:

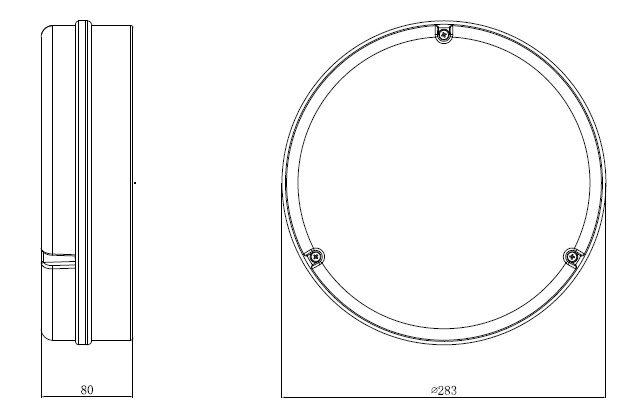

Size:

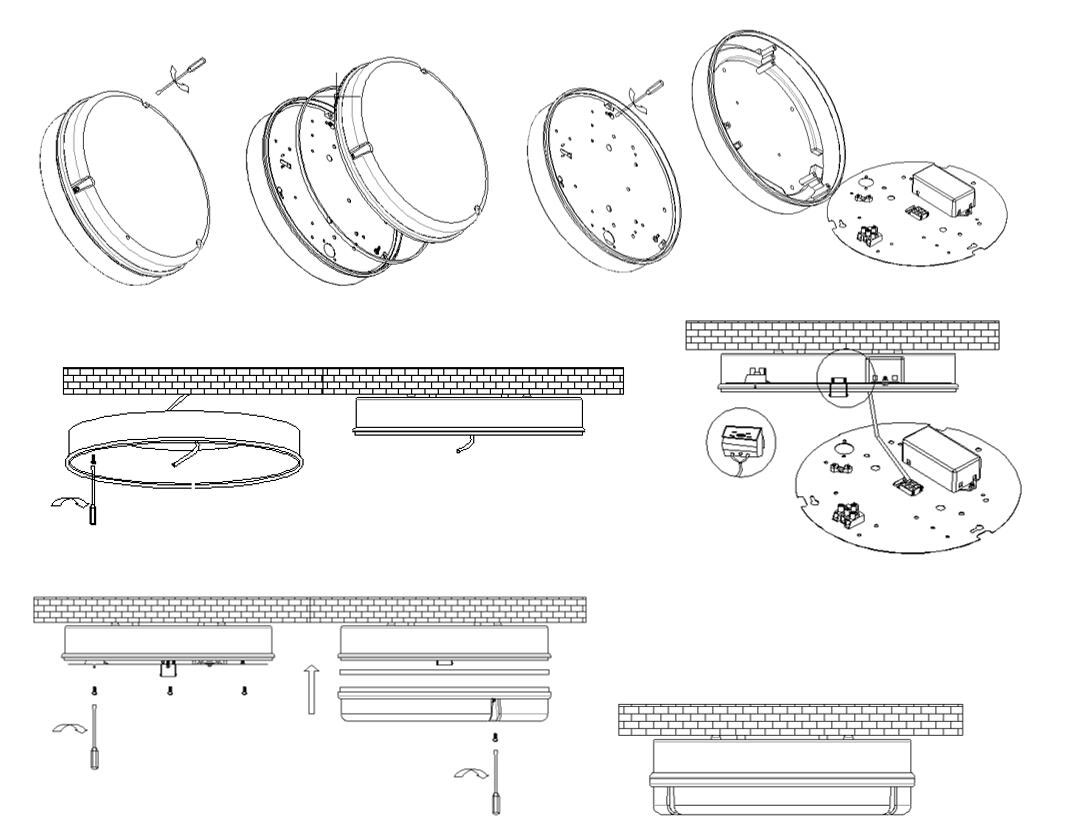

Installation:
