Polycarbonate construction.
High efficiency diffuser allows maximum light transmission
LED replacement for 28W/38W CFL fittings
White or Chrome trim as option
Piano key terminal block for easy installation & allows loop in / out wiring
3CCT with internal selector switch allows the installer to choose 3000K/4000K/5000K
LED lifespan L70 50,000 hours
For use in offices, cinemas, stirs,corridors, cares homes, student accommodation, hospitals, hotels changing rooms, entrances.
Emergency, microwave sensor, Corridor function available
Technical datas:
| Model | YGBH8 | YGBH8A | |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 8W | 14W | 18W |
| Light output L100 (lm): | 730±7％ | 1350±7％ | 1750±7％ |
| CCT L100 (K): | 3000K/4000K/5000K(3CCT SELECTABLE) | ||
| Power factor(PF) | >0.9 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 |
| Efficacy (lm/W): | >95 | >95 | >95 |
| Operating Temp | -10°C to 25°C | -10°C to 25°C | -10°C to 25°C |
| IP rating: | IP44 | IP44 | IP44 |
| IK rating: | IK08 | IK08 | IK08 |
| Dimension (mm): | ɸ220*80 | ɸ325*80 | ɸ325*80 |

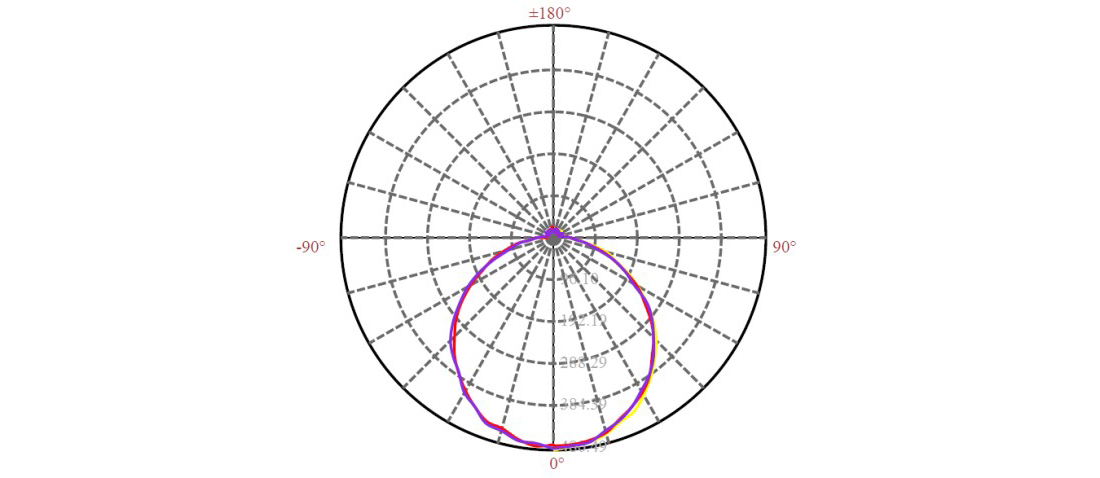

Light Distribution Curve:

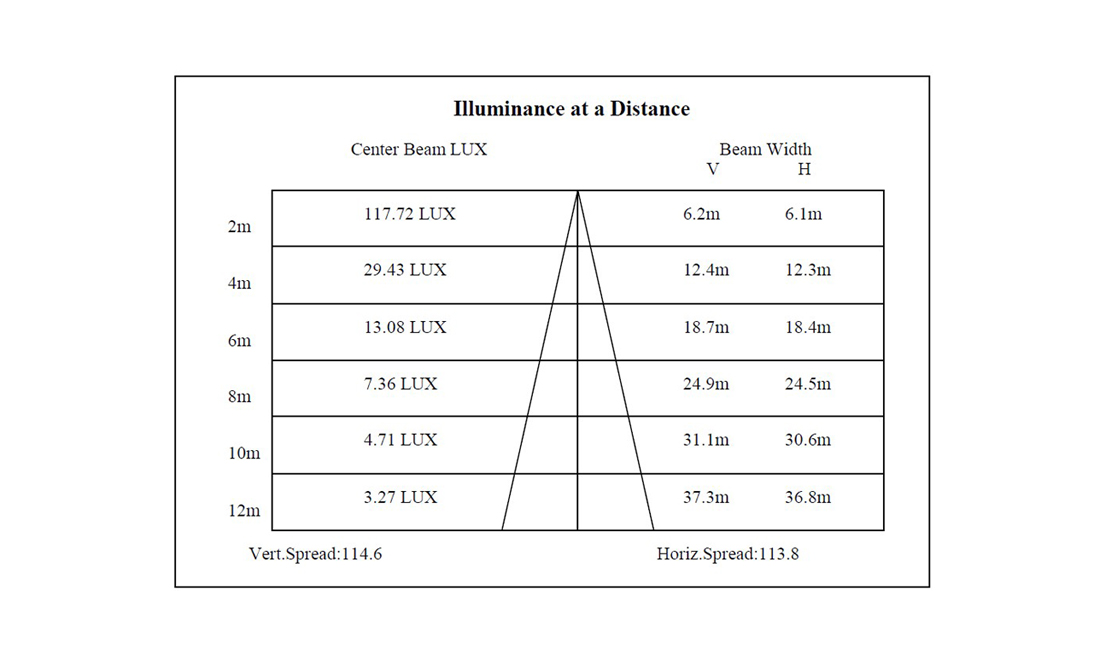

Lux Distance Curve:

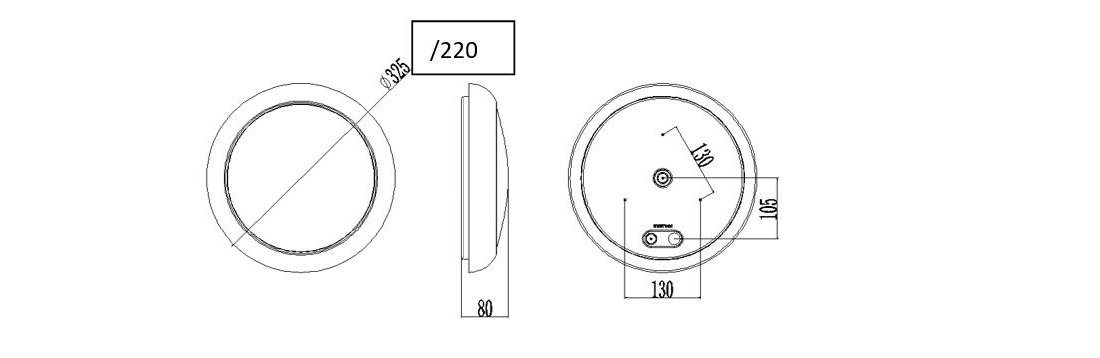

Size:

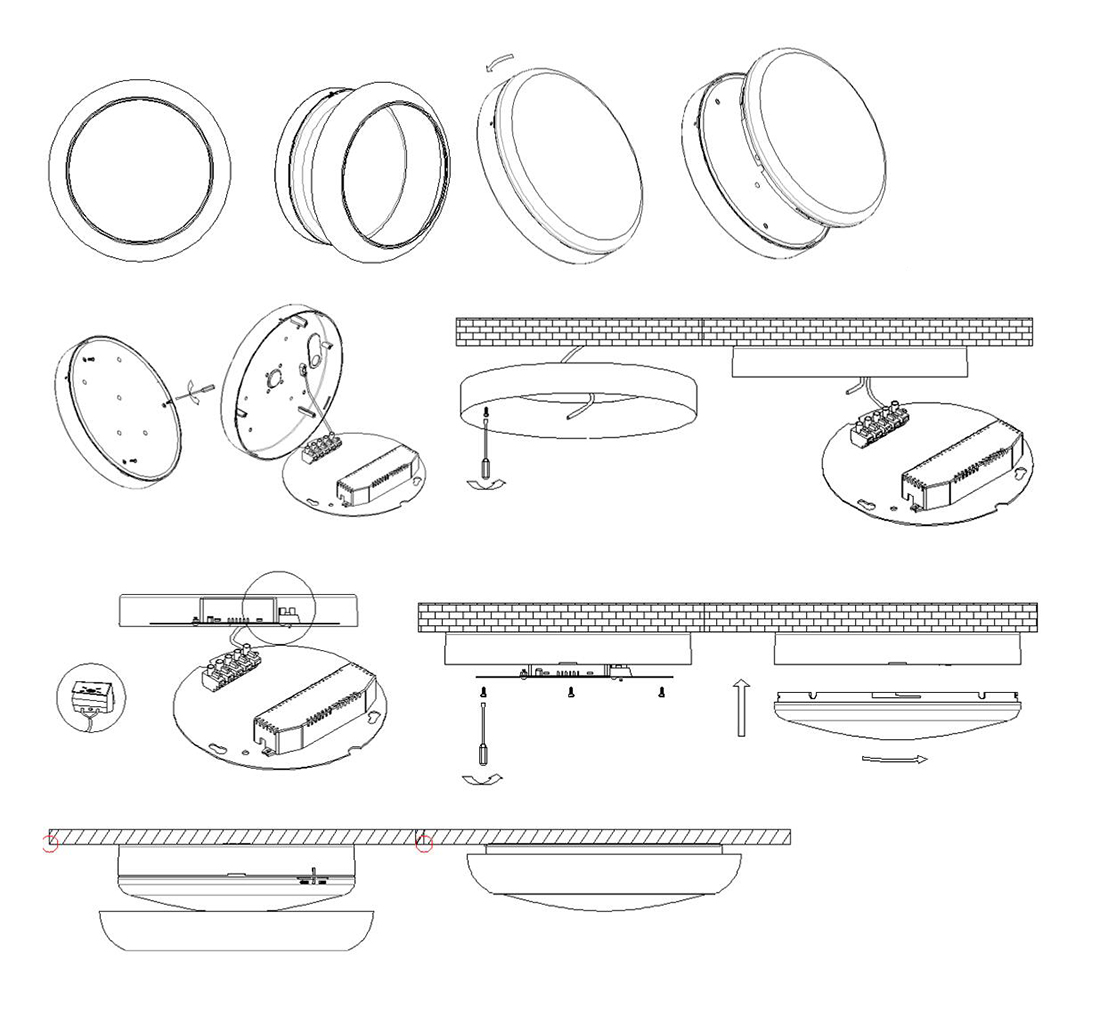

Installation:
