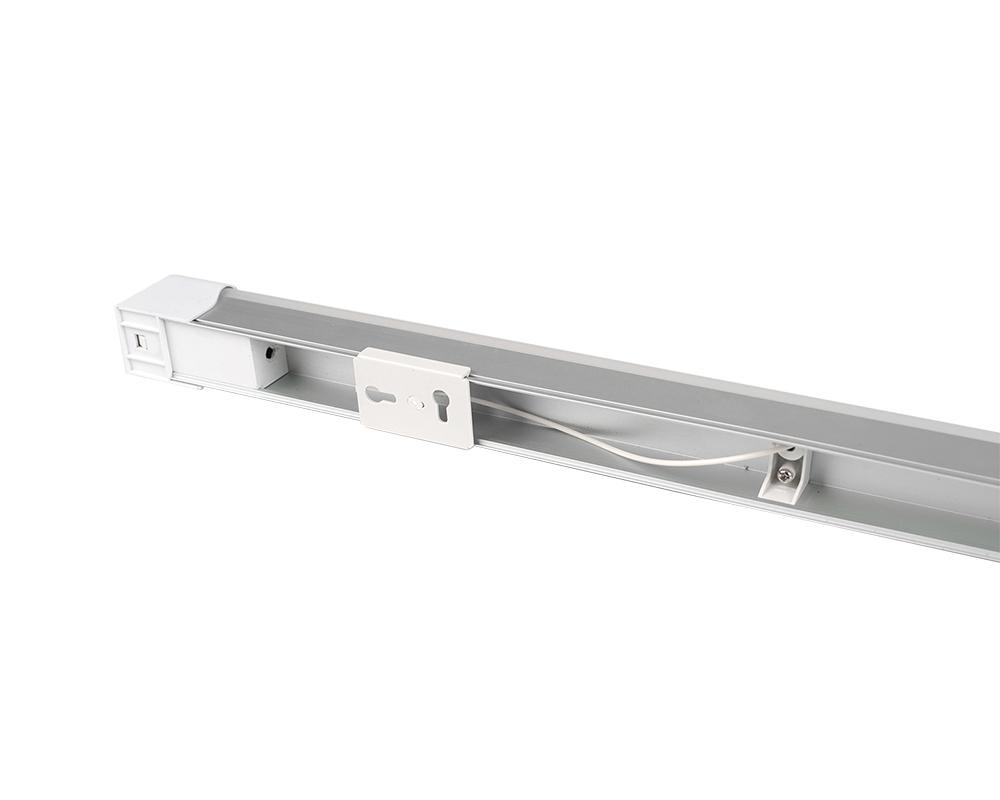

Slimline LED Batten Fitting
Polycarbonate and aluminium construction
230V, 4000k ultra-bright LED batten.
Double insulated, lightweight, versatile and Slimline.
Simple to install via easy wire terminal box on the rear. Alternative to T5/T8 batten.
Suitable for use in cabinet displays, kitchen wall units, workbench lighting, wardrobe lighting, under counter, bed headboard.
N/A
Technical datas:
| Model | YGBL11A-01 | YGBL11A-02 | YGBL11A-03 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 10W | 17W | 20W |
| Light output L100 (lm): | 1060 | 1950 | 2260 |
| CCT L100 (K): | 4000K | 4000K | 4000K |
| Power factor(PF) | >0.85 | >0.9 | >0.9 |
| Protection Class | Class I | Class I | Class I |
| CRI L100: | >80 | >80 | >80 |
| Efficacy (lm/W): | >110 | >110 | >105 |
| IP rating: | IP20 | IP20 | IP20 |
| Dimension (mm): | 605x30x46 | 1220x30x46 | 1520x30x46 |

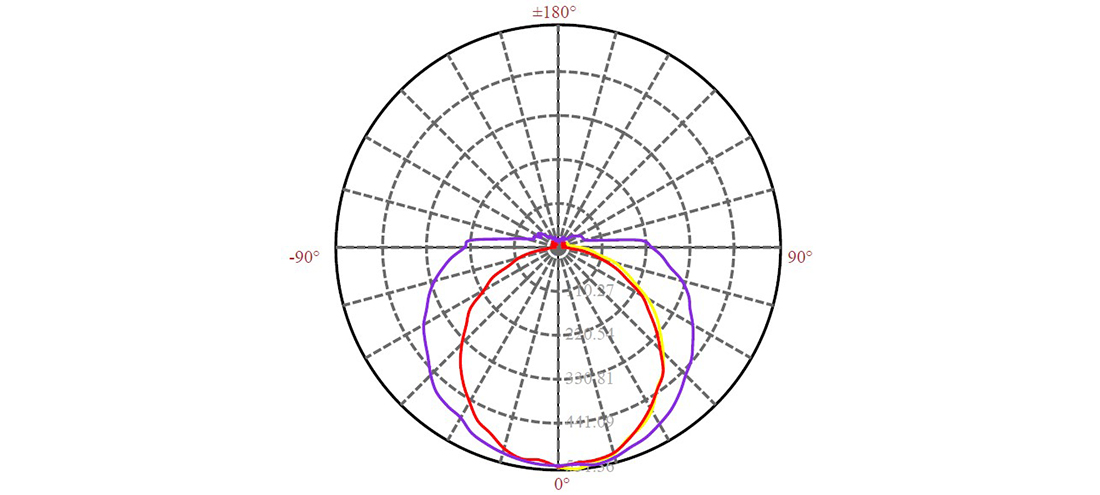

Light Distribution Curve:

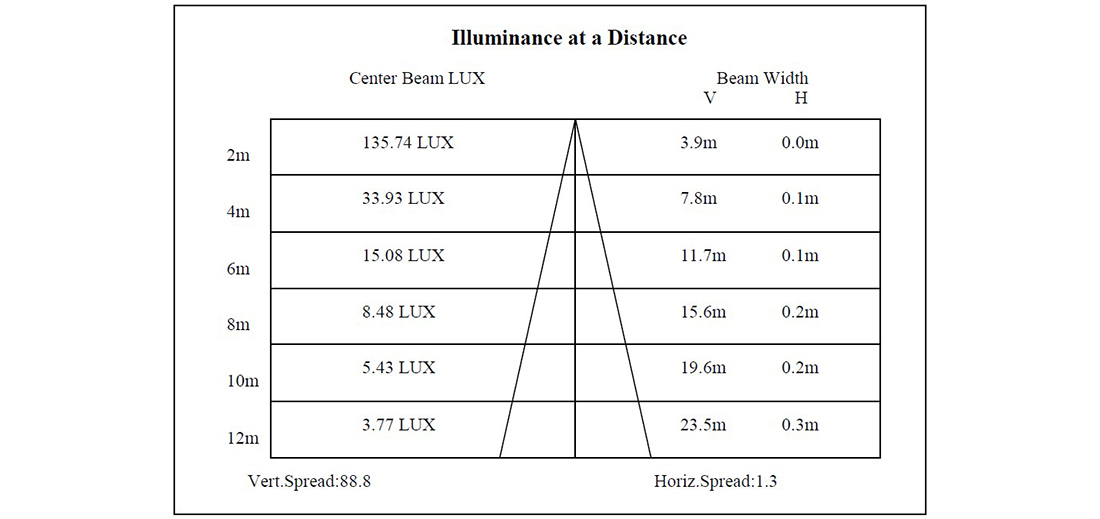

Lux Distance Curve:

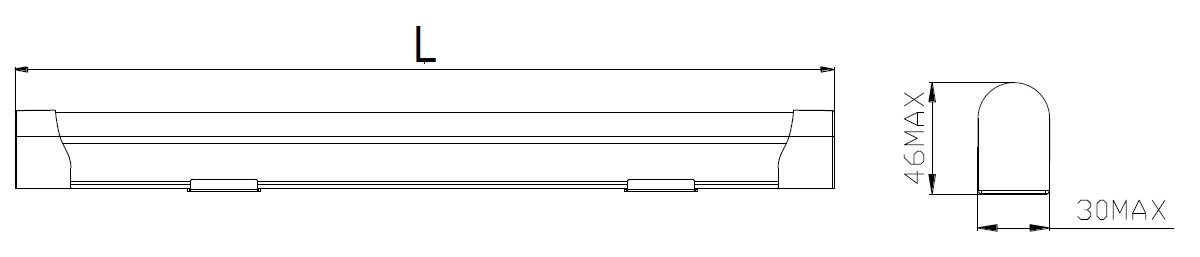

Size:

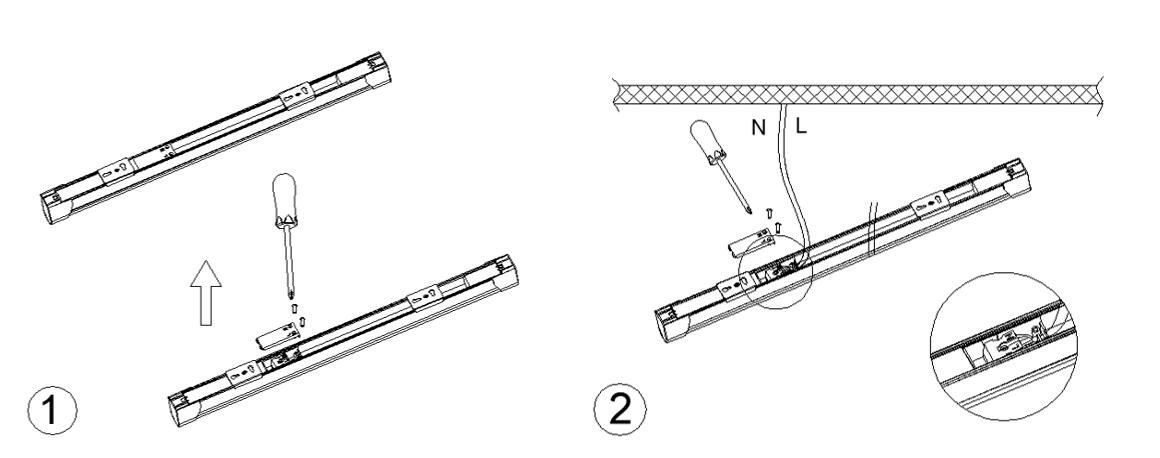

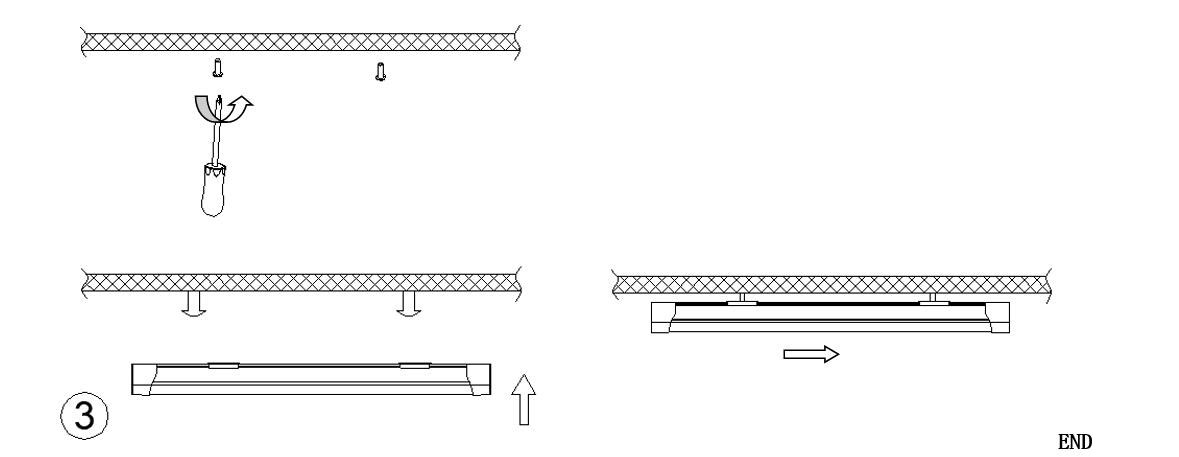

Installation:
