Steel body with powder coat finish
Opal polycarbonate diffuser design
Ideal for replacement/ alternative to T5/T8
High lumen efficiency: >105lm/W
3 CCT selectable by DIP switch (3000K/4000K/5000K).
Push-fit terminals for fast installation
ENEC approved flicker free driver
Emergency, microwave sensor, Dali function available
Suitable for use in offices, corridors, retail shops, storage areas, classrooms,work stations.
Emergency, microwave sensor, Dali function available
Technical datas:
| Model | YGBT10C-005 | YGBT10C-006 | YGBT10C-007 | YGBT10C-008 |
| Input Voltage | 220-240V AC | 220-240V AC | 220-240V AC | 220-240V AC |
| Power Consumption (W): | 20W | 40W | 50W | 60W |
| Light output L100 (lm): | 2100 | 4200 | 5250 | 6300 |
| CCT L100 (K): | 4000K | 4000K | 4000K | 4000K |
| Power factor(PF) | >0.9 | >0.9 | >0.9 | >0.9 |
| Protection Class | Class II | Class II | Class II | Class II |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | >105 | >105 | >105 | >105 |
| IP rating: | IP20 | IP20 | IP20 | IP20 |
| Dimension (mm): | 615x95x85 | 1225x95x85 | 1525x95x85 | 1790x95x85 |

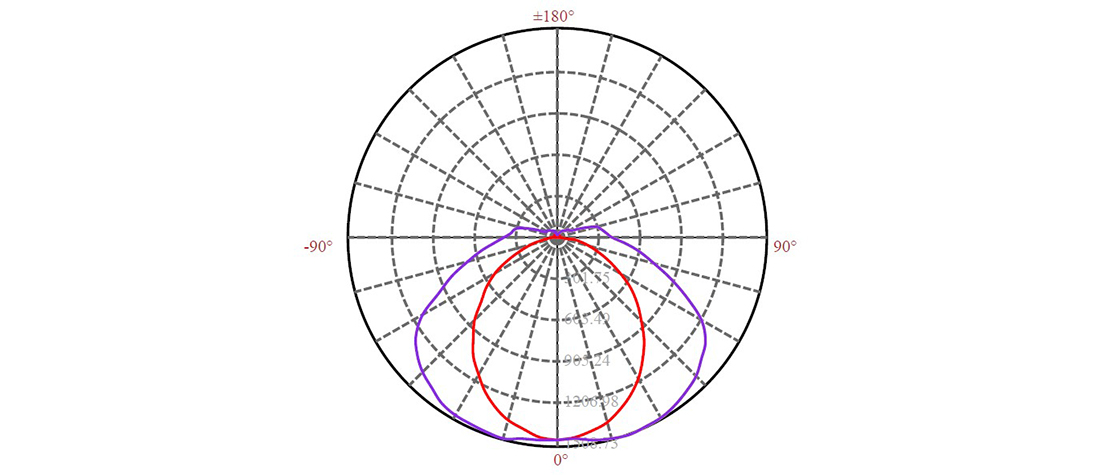

Light Distribution Curve:

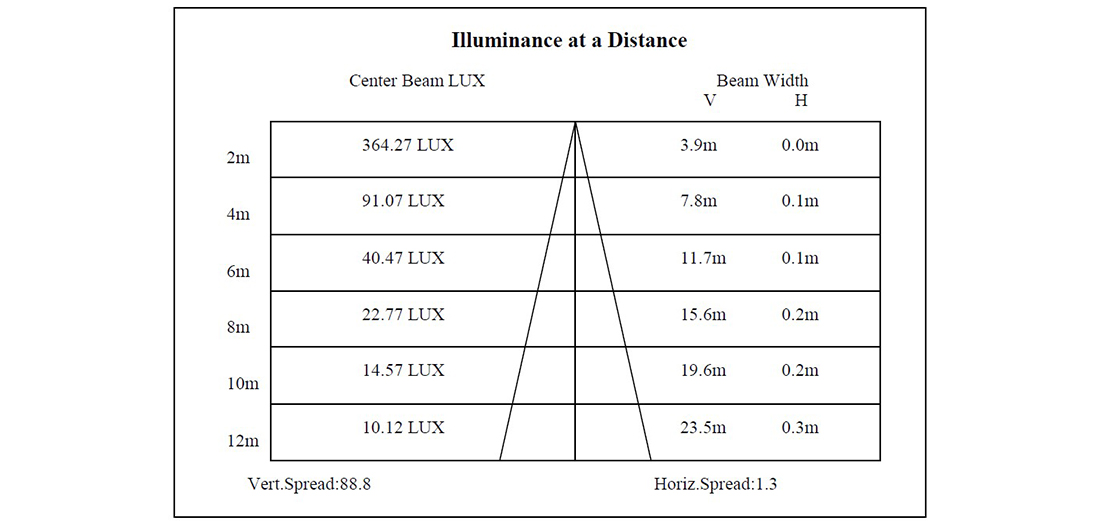

Lux Distance Curve:

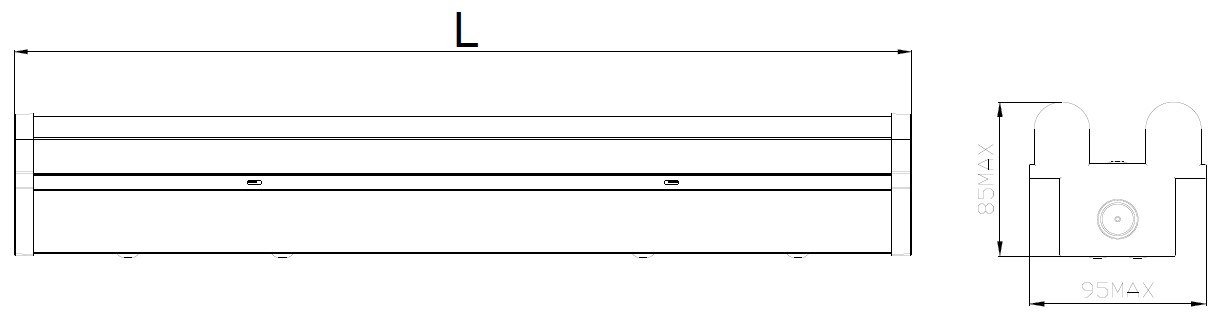

Size:

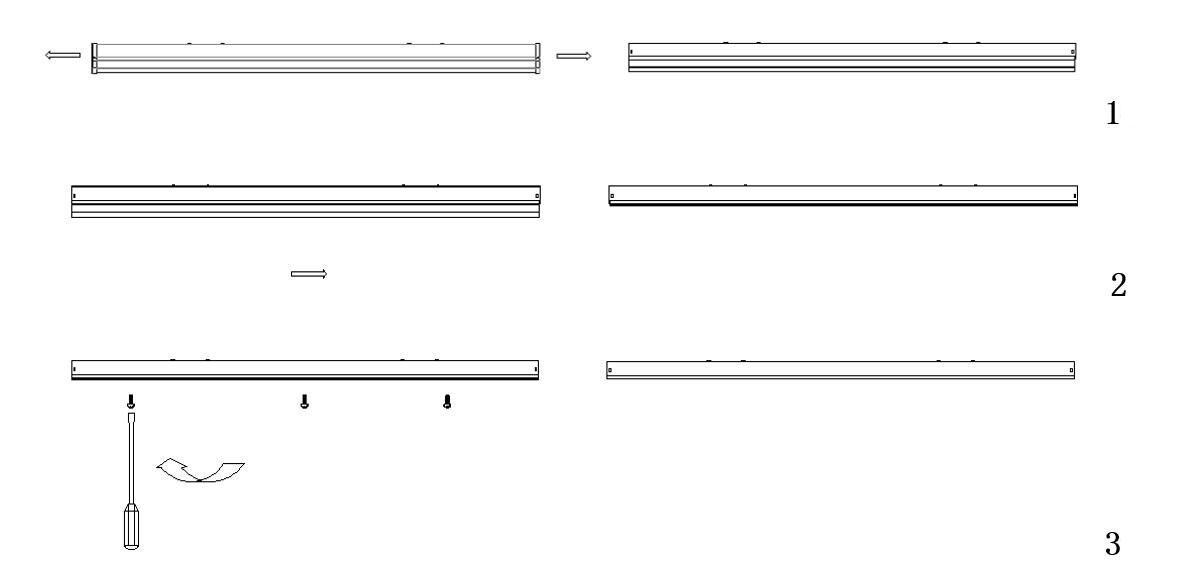

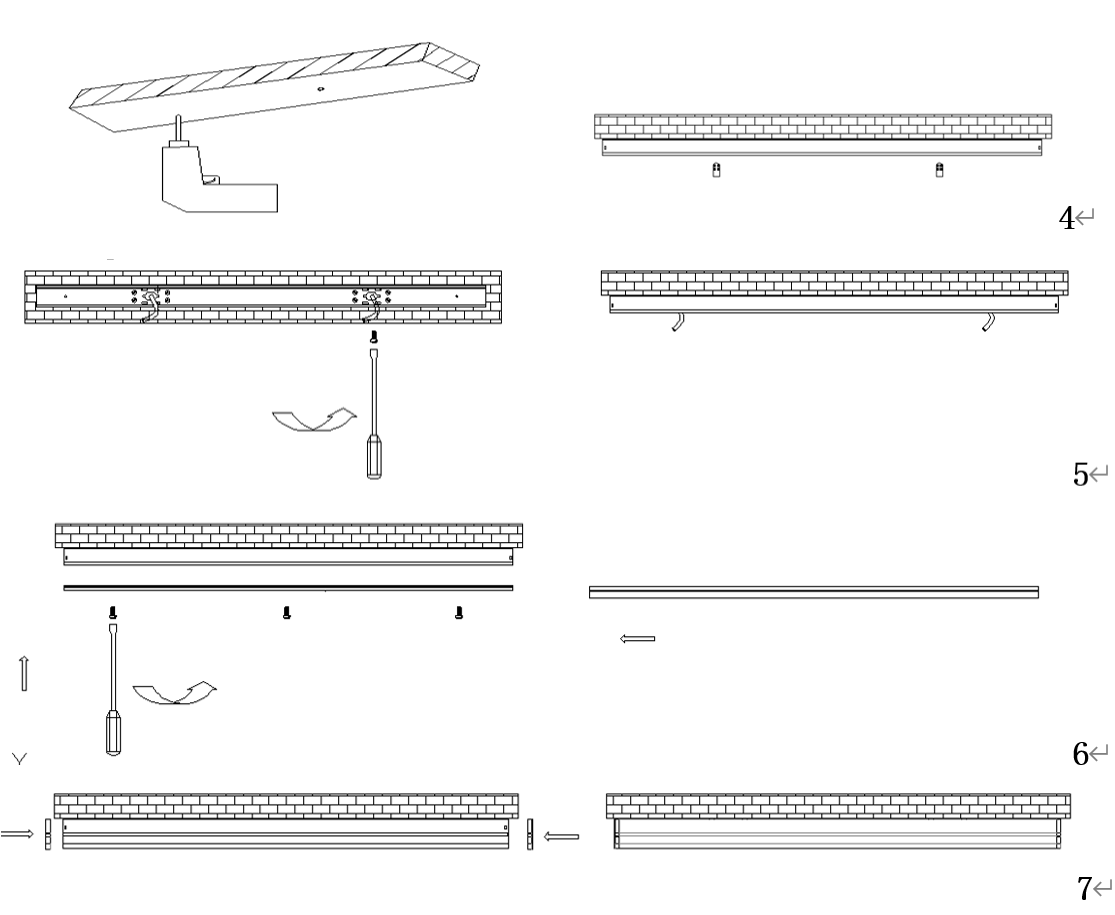

Installation:
