Manufactured from aluminium alloy body with polycarbonate diffuser.
Warm and cool white versions with high CRI LED’s,
Integral LED driver, Integral switch
CCT selectable, Tilt and linkable
Caters for most cupboard or unit sizes to ensure uniform light distribution and effect
Suitable for use in cabinet displays, workbench lighting, wardrobe lighting, under counter
CCT selectable, Linkable
Technical data:
| Model | YGCB9D-01 | YGCB9D-02 | YGCB9D-03 |
| Input Voltage | 220-240V | 220-240V | 220-240V |
| Power Consumption (W): | 5W | 9W | 14W |
| Light output L100 (lm): | 500 | 850 | 1250 |
| CCT L100 (K): | 4000K | 4000K | 4000K |
| Power factor(PF) | >0.5 | >0.5 | >0.5 |
| Protection Class | Ⅱ | Ⅱ | Ⅱ |
| CRI L100: | >80 | >80 | >80 |
| Efficacy (lm/W): | >90 | >90 | >90 |
| IP rating: | IP20 | IP20 | IP20 |
| Dimension (mm): | 362*84*28 | 591*84*28 | 923*84*28 |

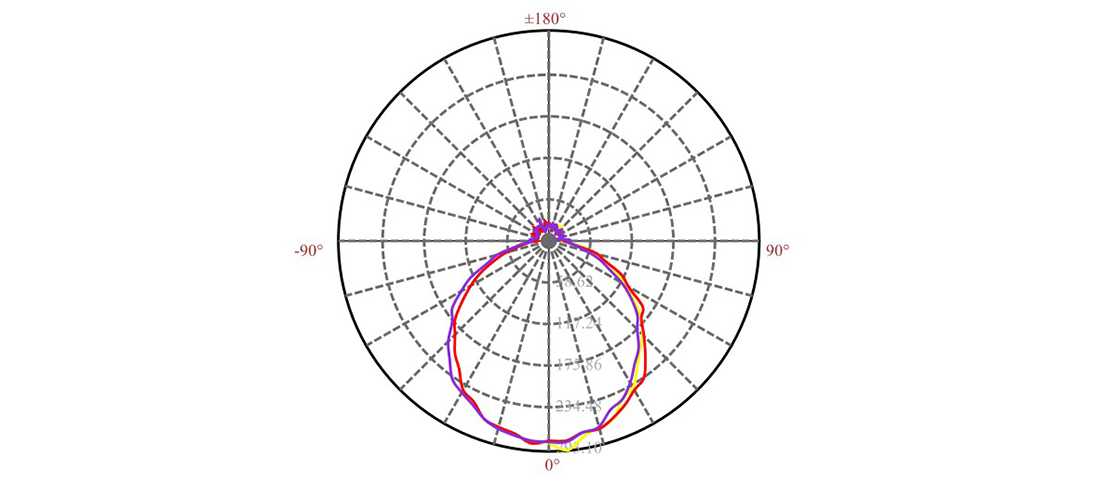

Light Distribution Curve:

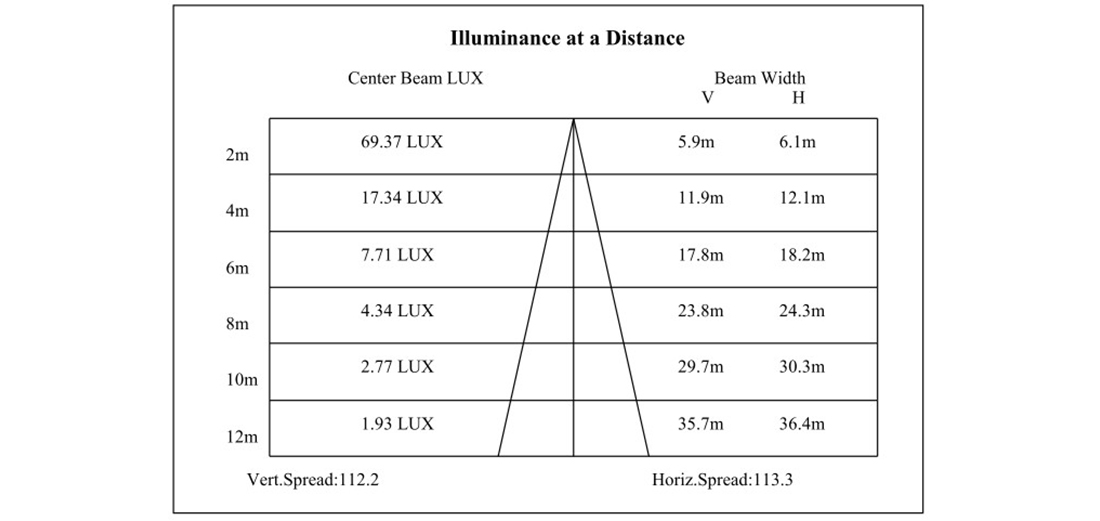

Lux Distance Curve:

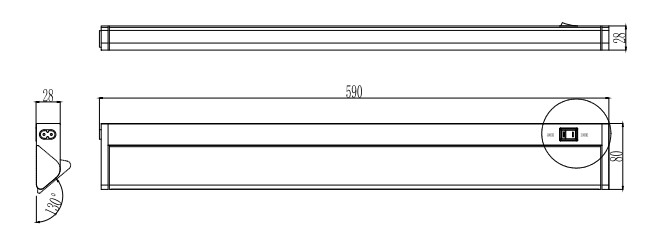

Size:

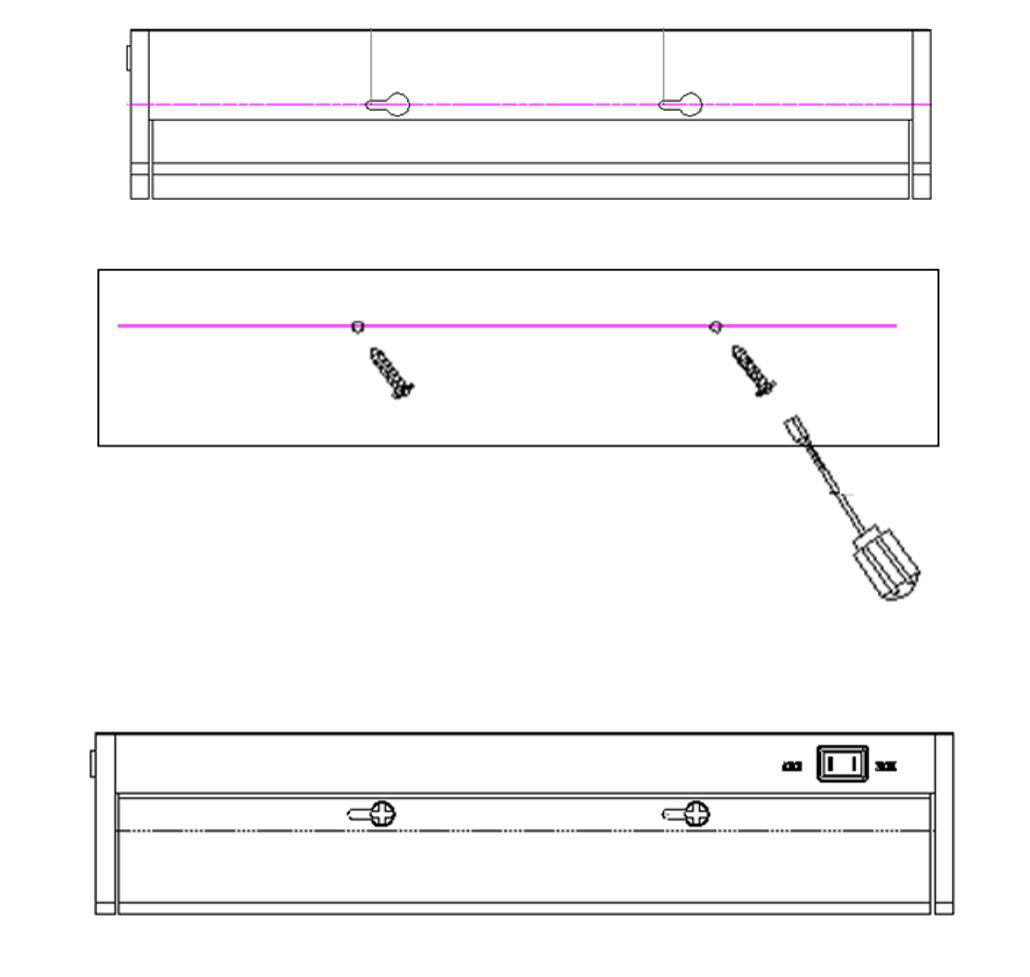

Installation:
