Ultra slim profile Aluminium body and polycarbonate diffuser
Warm and cool white versions with high CRI LED’s
Energy saving of up to 50% compared with traditional T5 striplights.
Integral LED driver, Integral switch

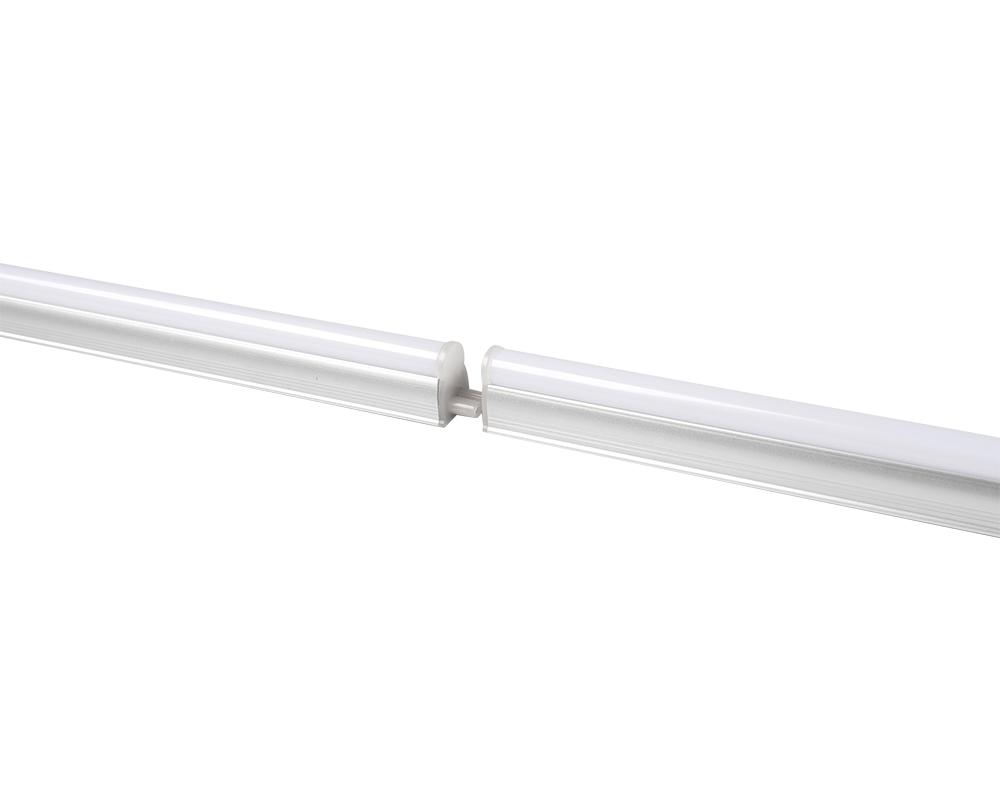

Link up to 15 fittings with linking cable or by plugging fittings directly together
3 CCT selectable 3000K/4000K/5000K.
Suitable for use in cabinet displays, kitchen wall units, workbench lighting, wardrobe lighting, under counter, bed headboard.
CCT selectable, Linkable
Technical datas:
| Model | T504-23-AL | T507-23-AL | T512-23-AL | T514-23-AL |
| Input Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
| Power Consumption (W): | 4W | 7W | 12W | 14W |
| Light output L100 (lm): | 400 | 750 | 1250 | 1500 |
| CCT L100 (K): | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K | 3000K/4000K/5000K |
| Power factor(PF) | >0.5 | >0.7 | >0.8 | >0.9 |
| Protection Class | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | 100 | 105 | 104 | 107 |
| IP rating: | IP20 | IP20 | IP20 | IP20 |
| Dimension (mm): | 320*24.5*34.1 | 520*24.5*34.1 | 890*24.5*34.1 | 1150*24.5*34.1 |
| Model | T504-CCT-AL-S | T507-CCT-AL-S | T512-CCT-AL-S | T514-CCT-AL-S |
| Input Voltage | 220-240V | 220-240V | 220-240V | 220-240V |
| Power Consumption (W): | 4W | 7W | 12W | 14W |
| Light output L100 (lm): | 380 | 630 | 1000 | 1150 |
| CCT L100 (K): | 3000K/4000K | 3000K/4000K | 3000K/4000K | 3000K/4000K |
| Power factor(PF) | >0.4 | >0.4 | >0.5 | >0.5 |
| Protection Class | Ⅱ | Ⅱ | Ⅱ | Ⅱ |
| CRI L100: | >80 | >80 | >80 | >80 |
| Efficacy (lm/W): | 95 | 90 | 92 | 88 |
| IP rating: | IP20 | IP20 | IP20 | IP20 |
| Dimension (mm): | 320*24.5*34.1 | 520*24.5*34.1 | 890*24.5*34.1 | 1150*24.5*34.1 |

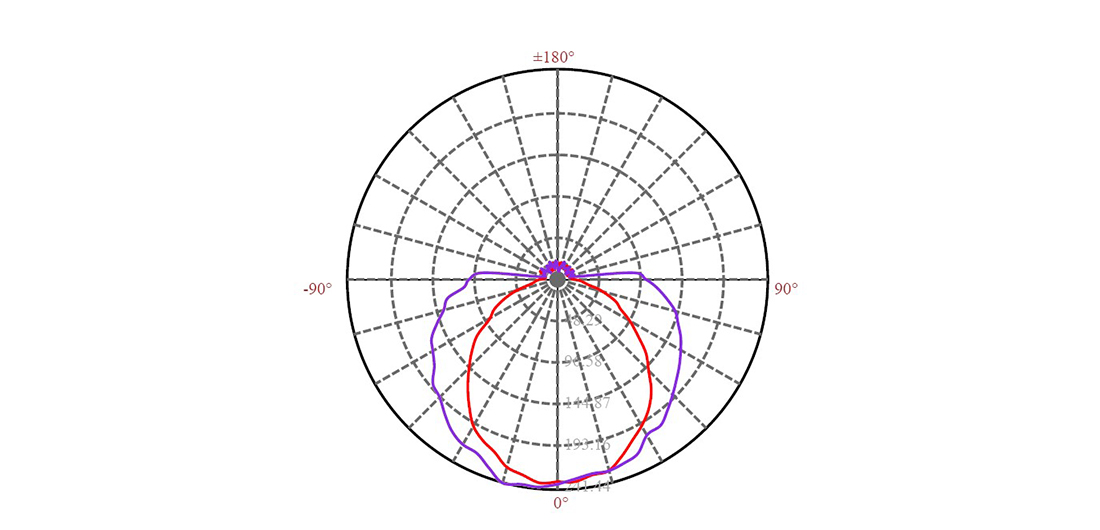

Light Distribution Curve:

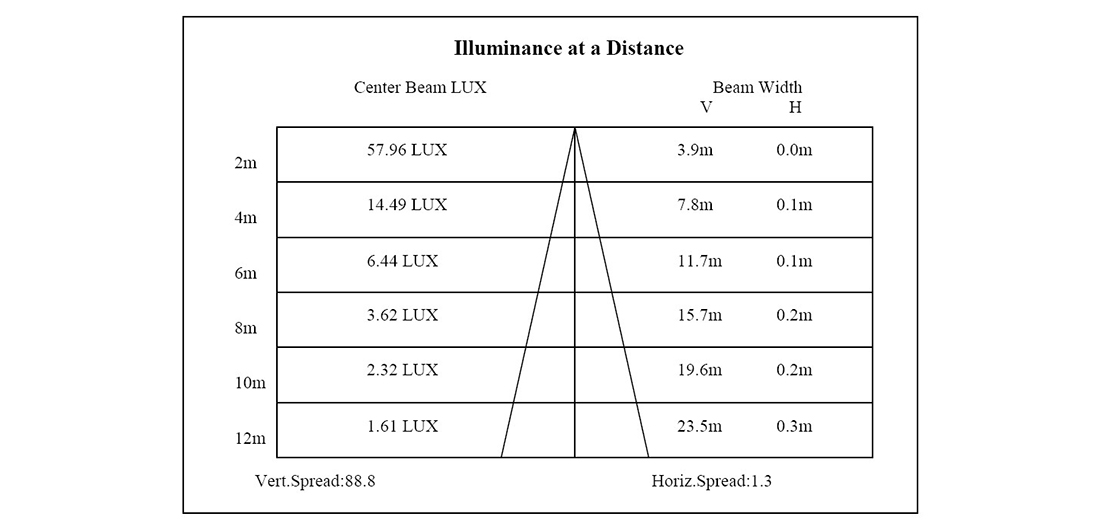

Lux Distance Curve:

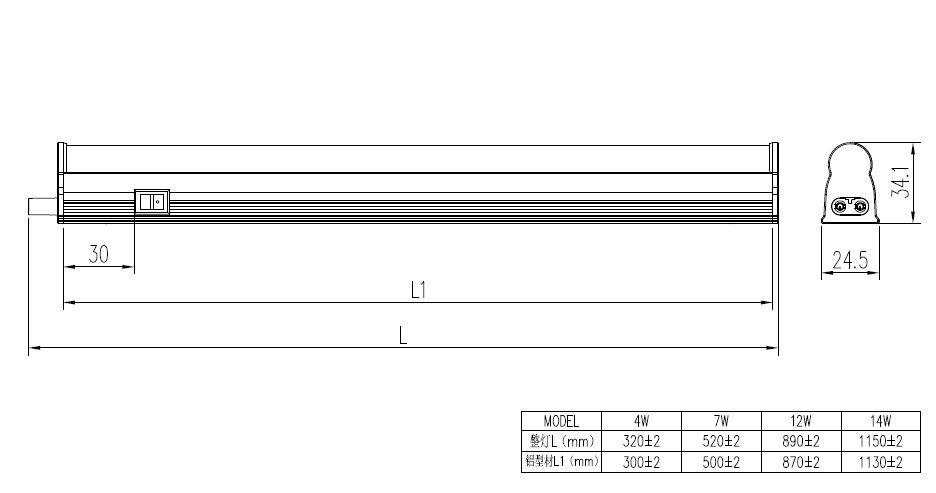

Size:

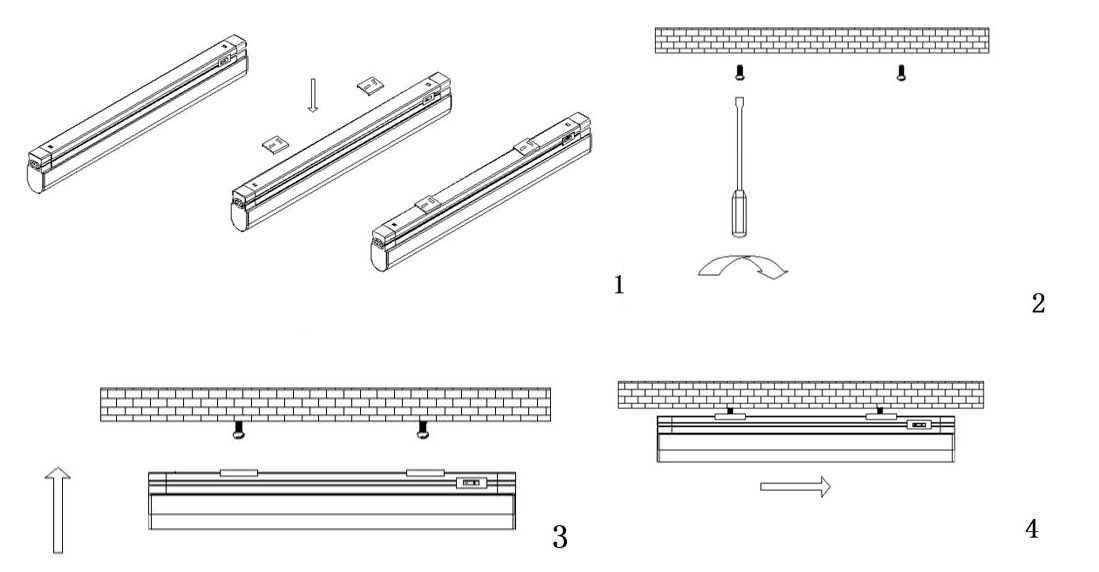

Installation:
